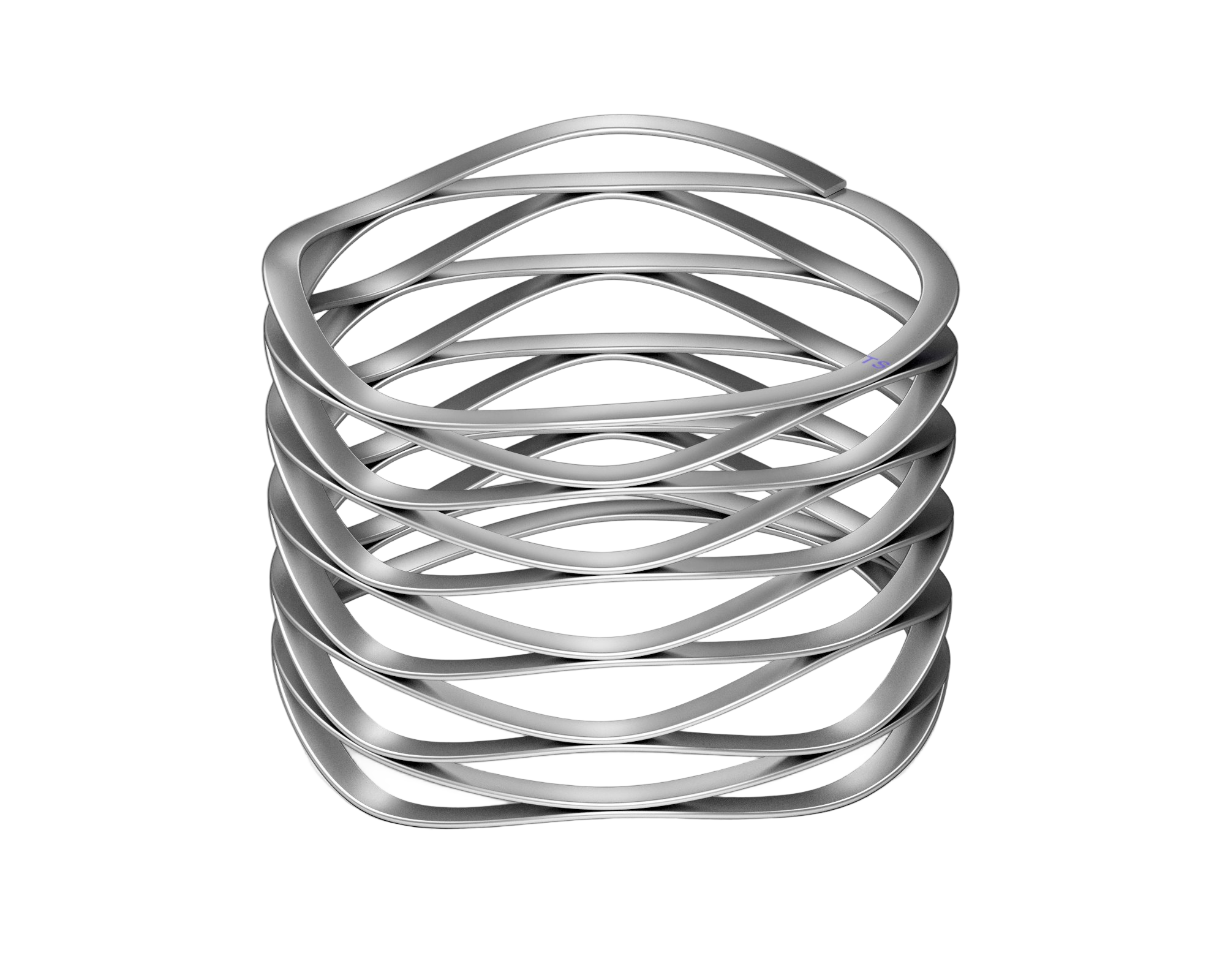

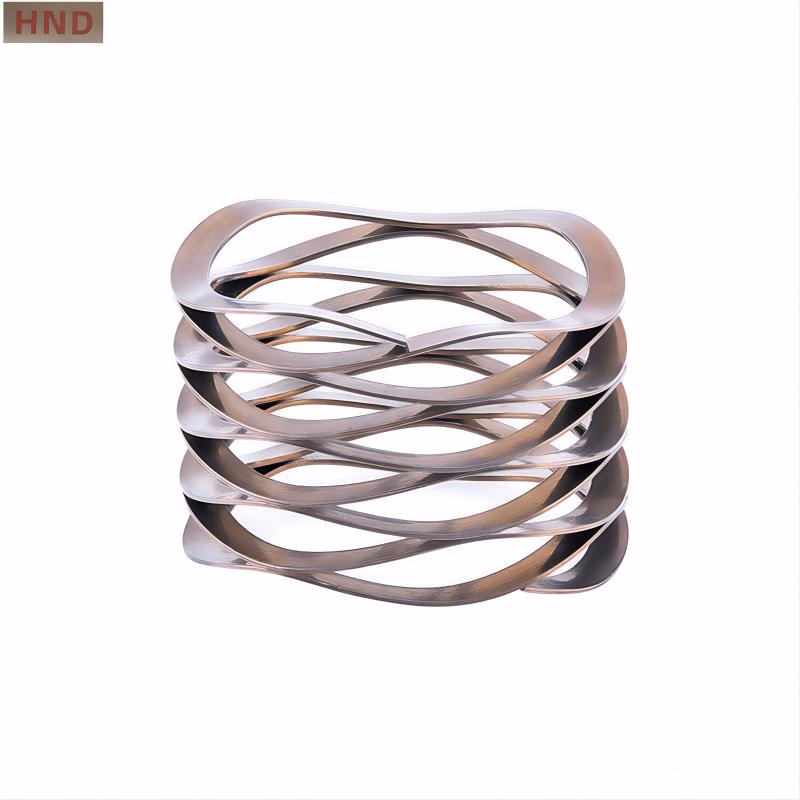

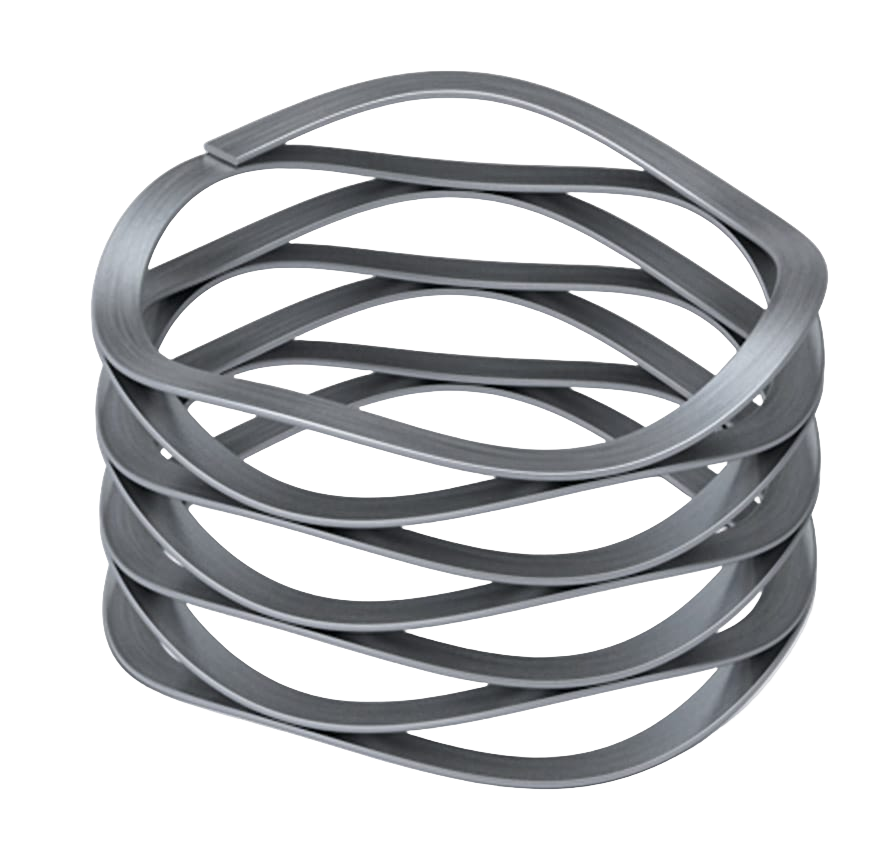

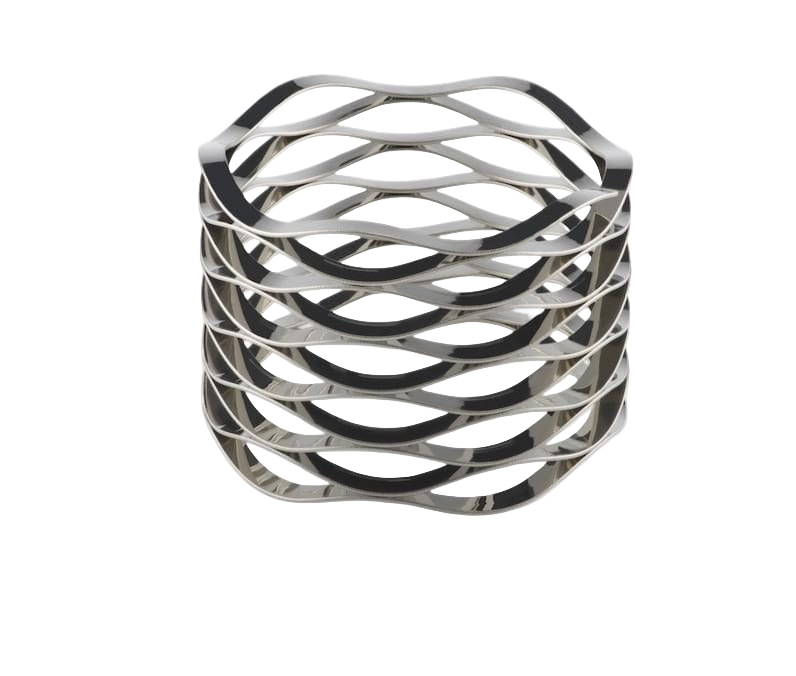

Wave Disc Spring
Wave Disc Spring
Wave profile disc spring for smooth load.
100
Minimum order quantity: 100 piecesFrom: $0.08 - $3
Specifications
Specifications
application / industryElectronics
direction of winding—
end type—
free length (mm)—
heat treatmentStress Relieved
inner diameter id (mm)8, 10, 12, 16, 20, 25
load at specified length (n)—
load typeCompression
materialSpring Steel, Stainless Steel
mounting styleStacked
number of active coils—
operating temperature (°c)-40 to 150
outer diameter od (mm)15, 20, 25, 30, 40, 50
solid length (mm)—
spring functionLoad Bearing
spring rate (n/mm)—
spring shapeWave
standard / specificationDIN 2093
surface finish / coatingPassivated
wire diameter (mm)—
