Steam Valves
Steam Valves

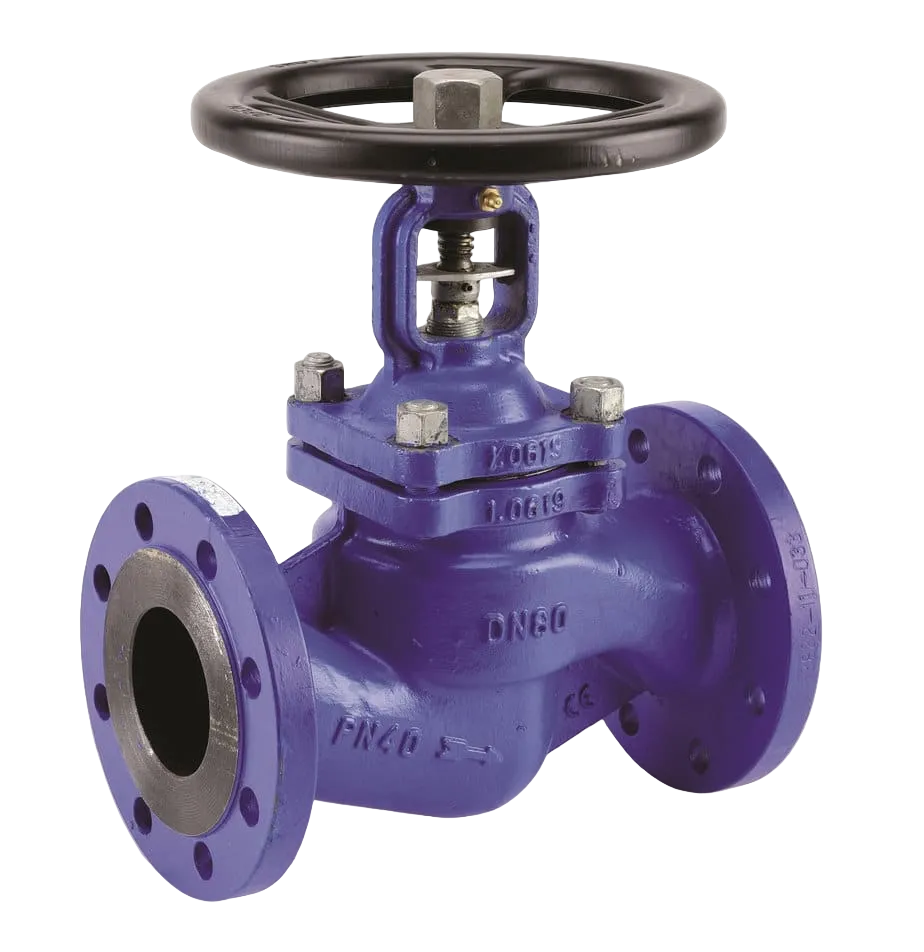

Valves for steam isolation and control including globe, piston, and gate valves.
Select product type:
Select size (inch · dn):
Select operation type:
Select body material:
Select end connection:
10
Minimum order quantity: 10 piecesFrom: $100 - $500
Specifications
Specifications
product typeGlobe, Piston, Gate, Check
size (inch · dn)1/2" (DN15), 3/4" (DN20), 1" (DN25), 1.5" (DN40), 2" (DN50), 2.5" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
operation typeHandwheel Operated, Actuated
body materialWCB, Chrome-Moly Steel, SS316
end connectionFlanged, Threaded, Butt Weld
application / serviceSteam, Condensate
coating / protectionPainted
design standardASME B16.34, API 623
disc / closure materialSS Plug/Disc
pressure rating (asme class)Class 150, Class 300, Class 600, Class 900
pressure rating (pn)PN16, PN25, PN40, PN63
seat materialMetal (Stellite)
testing standardAPI 598, ISO 5208, EN 12266-1
country of originMade in India
