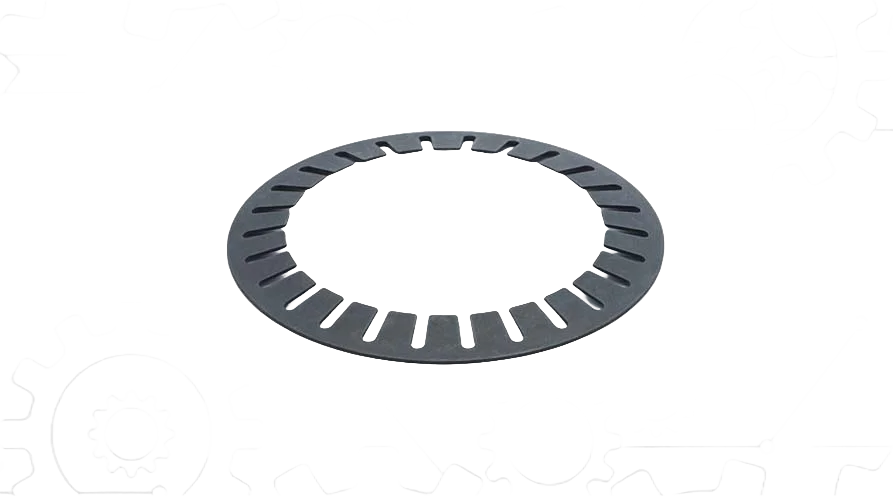

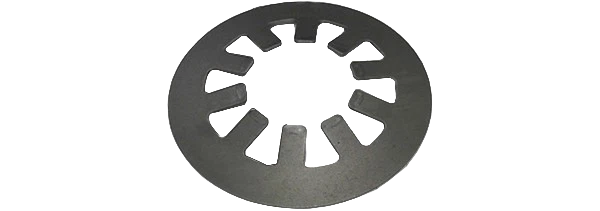

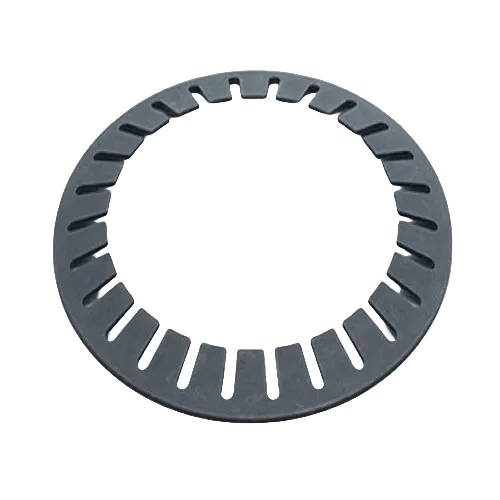

Slotted Disc Spring
Slotted Disc Spring
Slotted disc spring for flexibility.
50
Minimum order quantity: 50 piecesFrom: $0.15 - $6
Specifications
Specifications
application / industryPrecision Equipment
direction of winding—
end type—
free length (mm)—
heat treatmentHardened
inner diameter id (mm)10, 12, 16, 20, 25, 32, 40
load at specified length (n)—
load typeCompression
materialSpring Steel
mounting styleStacked
number of active coils—
operating temperature (°c)-40 to 200
outer diameter od (mm)20, 25, 30, 40, 50, 63, 80
solid length (mm)—
spring functionLoad Bearing
spring rate (n/mm)—
spring shapeConical
standard / specificationDIN 2093
surface finish / coatingPhosphated
wire diameter (mm)—
