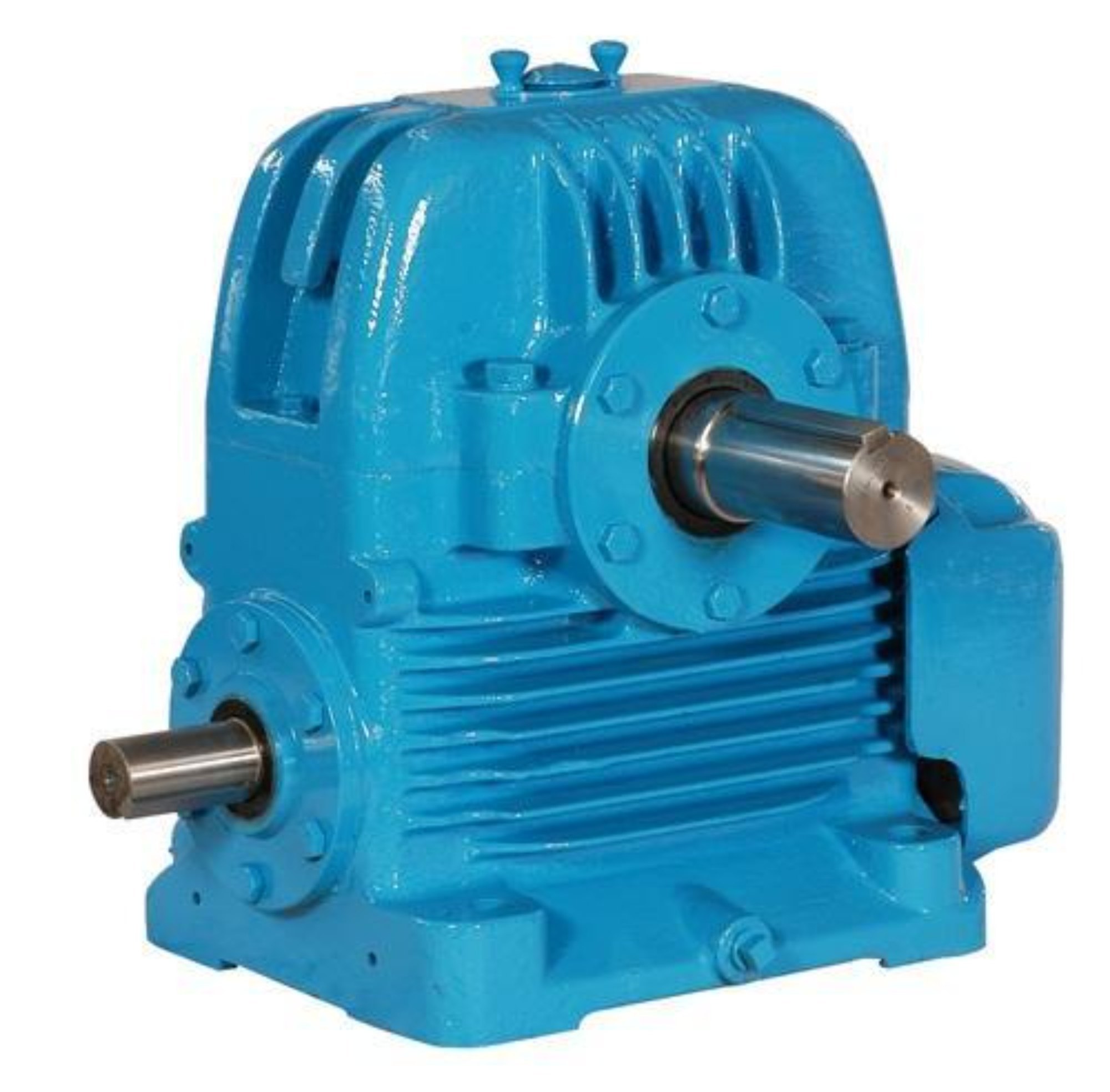

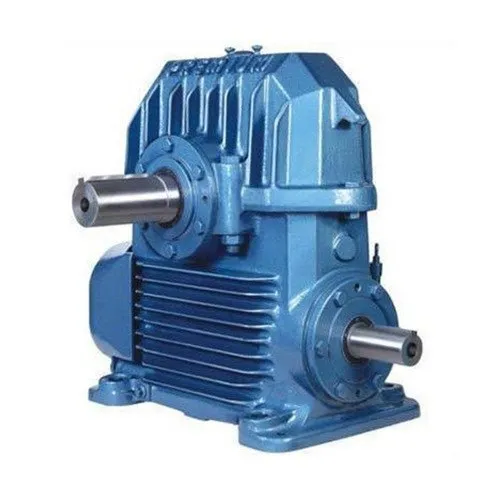

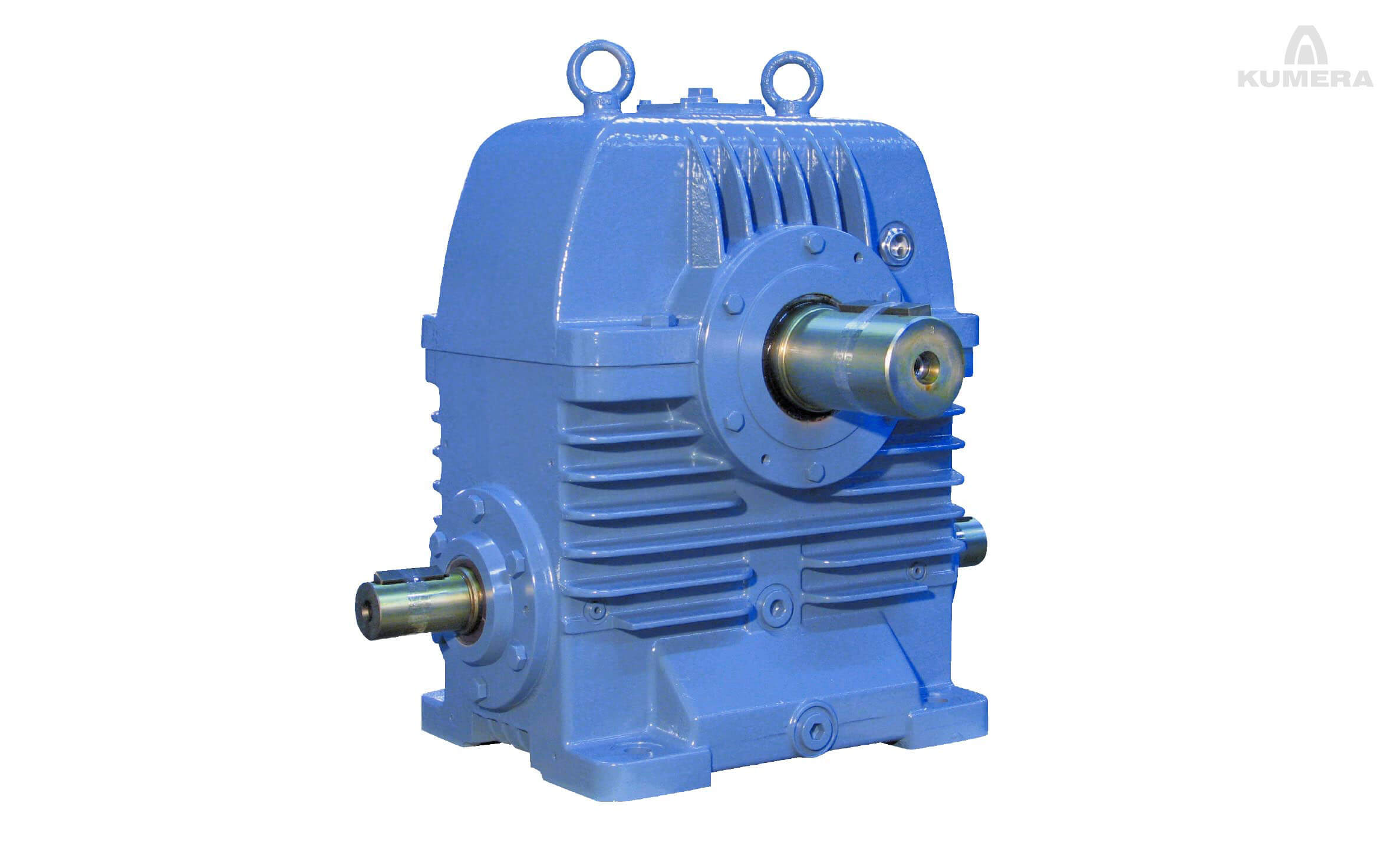

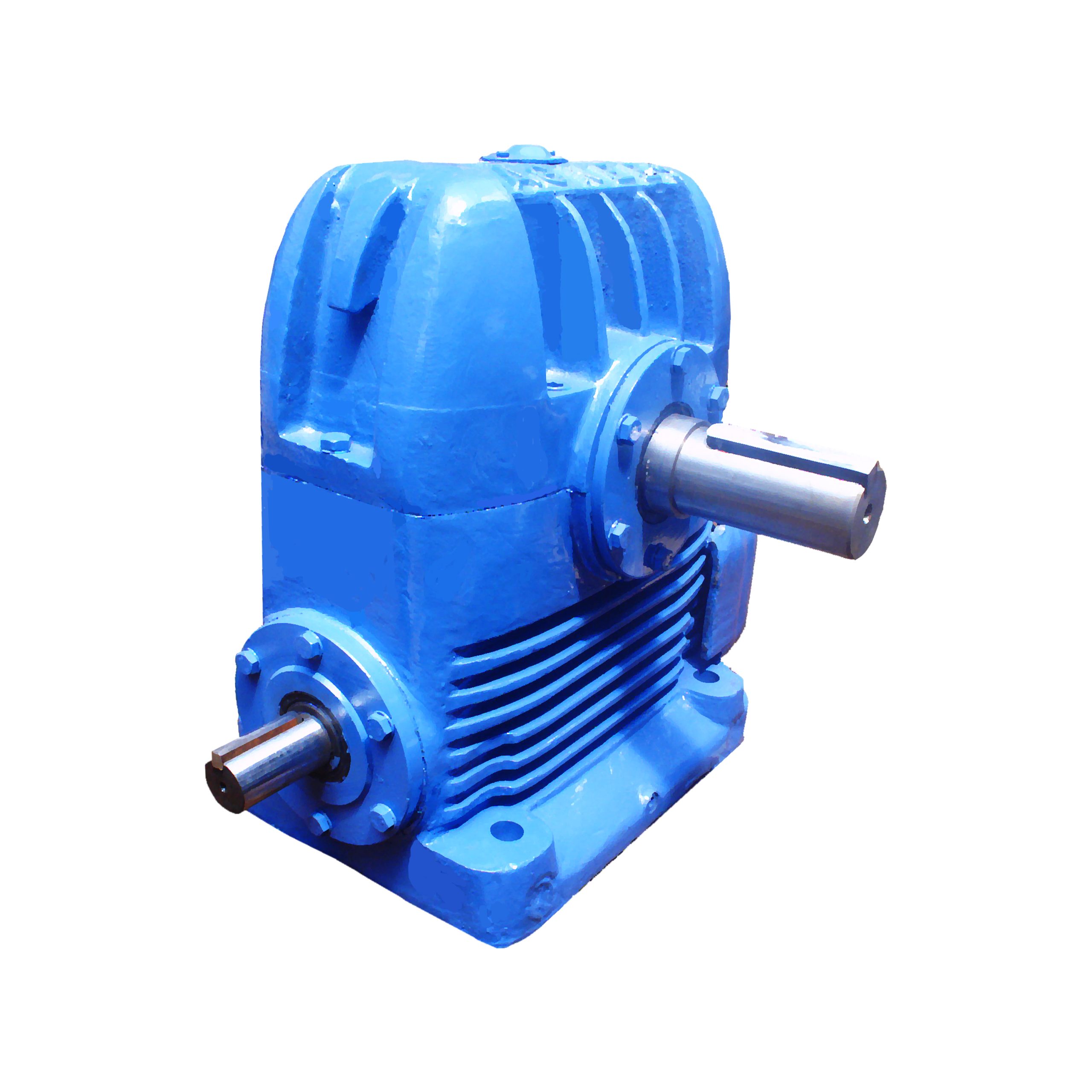

Single Reduction Worm Gearbox
Single Reduction Worm Gearbox
Compact worm gearbox providing single-stage speed reduction.
Select application:
Select mounting type:
Select orientation:
Select input type:
Select output type:
Select housing material:
Select gear material:
Select industries:
1
From: $60 - $400
Specifications
Specifications
- application
- Light Conveyors, Small Mixers
- mounting type
- Foot, Flange
- orientation
- Horizontal
- input type
- IEC Motor, Face Mounted Motor
- output type
- Solid/Hollow Output Shaft
- gear type
- Worm + Worm Wheel
- gear ratio range
- 7:1–60:1
- torque range (nm)
- 50–2000
- power range (kw)
- 0.18–15
- service factor
- 1.1–1.5
- housing material
- Cast Iron
- gear material
- Phosphor Bronze Wheel, Alloy Steel Worm
- lubrication type
- Oil Bath
- protection class
- IP55 (with motor)
- industries
- Packaging, Food, Small OEM
- efficiency (%)
- 70–85
- features
- Low cost, compact right angle
- country of origin
- India
