Servo Planetary Gearbox
Servo Planetary Gearbox

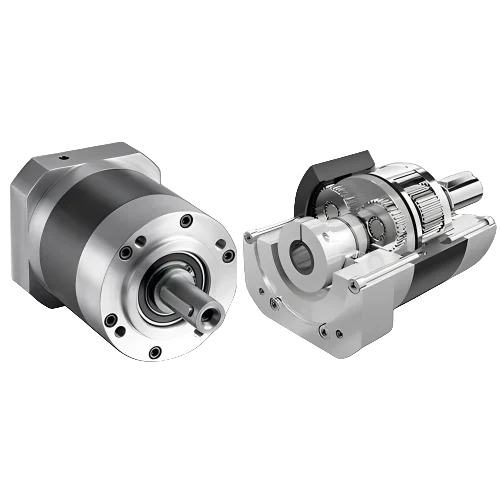

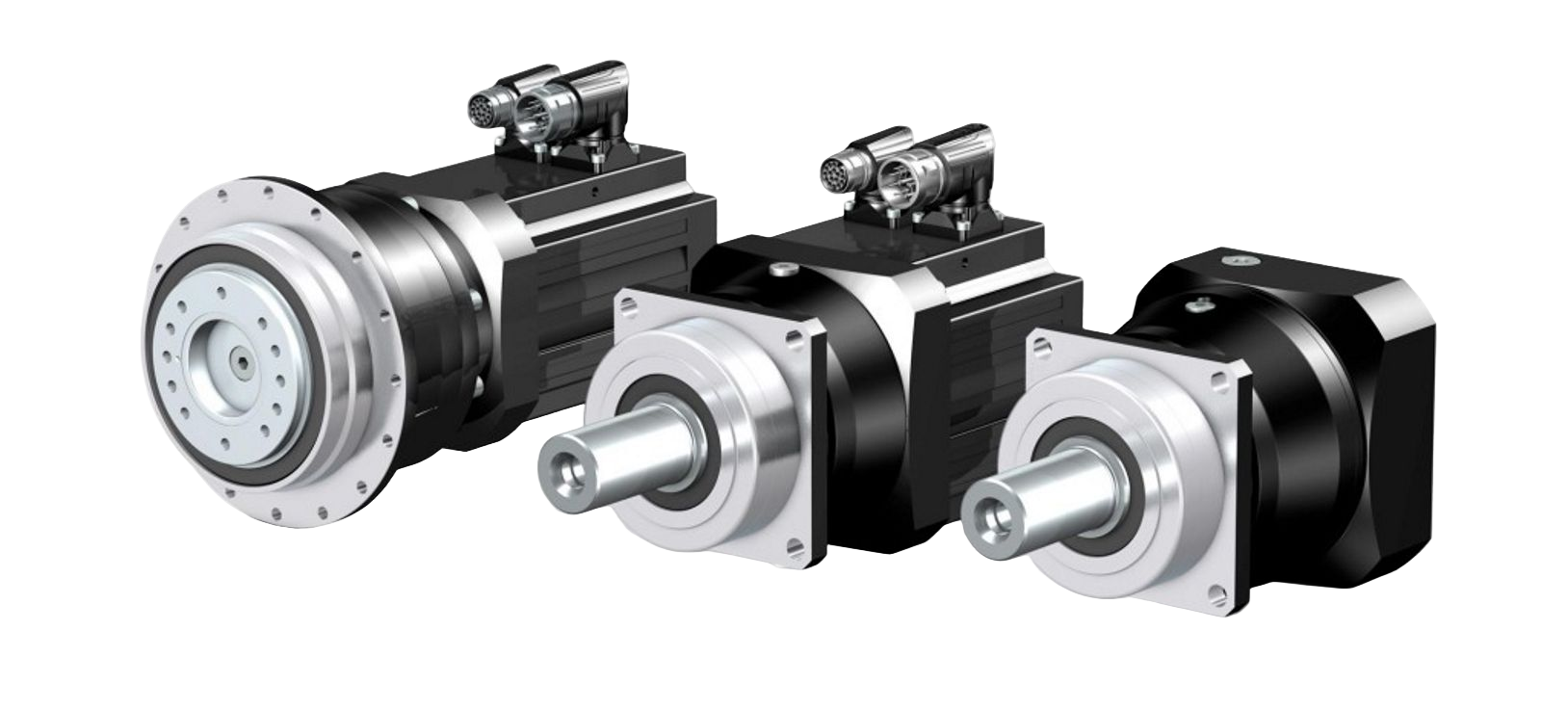

Low backlash planetary gearbox for servo motor applications.
Select application:
Select mounting type:
Select orientation:
Select input type:
Select output type:
Select housing material:
Select gear material:
Select industries:
1
From: $150 - $1500
Specifications
Specifications
| application | Robotics, Positioning Tables |
|---|---|
| mounting type | Flange, Inline |
| orientation | Horizontal, Vertical |
| input type | Servo Motor Mount |
| output type | Solid Shaft, Spline |
| gear type | Planetary |
| gear ratio range | 3:1–200:1 |
| torque range (nm) | 20–3000 |
| power range (kw) | 0.1–30 |
| service factor | 1.0–1.6 |
| housing material | Aluminium, Alloy Steel |
| gear material | Alloy Steel, Ground Gears |
| lubrication type | Grease Packed |
| protection class | IP54, IP65 |
| industries | Automation, CNC, Robotics |
| efficiency (%) | 94–97 |
| features | Low backlash, high precision |
| country of origin | India |
Made to your specification
Send your own specification or drawing and we will collect quotations from verified Indian manufacturers. The options below are common configurations for servo planetary gearboxes, and other configurations can be quoted on request.| Stages | Single, two or three stage |
|---|---|
| Ratio | Commonly 3:1 to 100:1; higher in three stages |
| Backlash | Standard and reduced backlash classes, typically stated in arc-minutes |
| Output | Solid keyed shaft, smooth shaft, splined shaft, flange output |
| Configuration | Inline or right-angle |
| Housing | Aluminium or alloy steel |
| Gears | Ground helical or spur planetary gears |
| Motor adapter | To suit the buyer's servo motor flange and shaft |
Standards & testing
Where it is used
Servo planetary gearboxes give compact, stiff and low-backlash reduction for accurate servo motion.Robotics
Robot axes and gantry drives.CNC machines
Axis drives and tool changers.Packaging machinery
Indexing and cut-to-length drives.Positioning tables
Linear and rotary positioning stages.How sourcing works with Himalay
Frequently asked questions
Yes. Manufacturers can build to your drawing, datasheet or a reference sample. Send the servo motor model and required output, and suppliers will confirm adapter and size.
Send the servo motor make and model, required ratio, nominal and peak output torque, backlash requirement, output type, duty cycle and quantity.
Yes. Motor adapters are made to the motor flange and shaft. Send the motor model or datasheet.
Backlash depends on design and stage count. State your required arc-minute value so suppliers can confirm.
Lead time depends on the specification, ratio and quantity. Every quotation states its own lead time.
