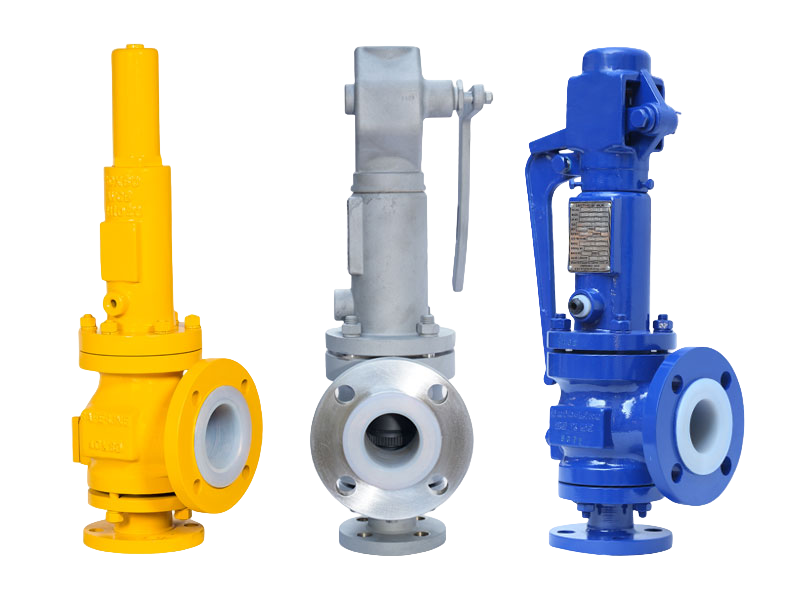

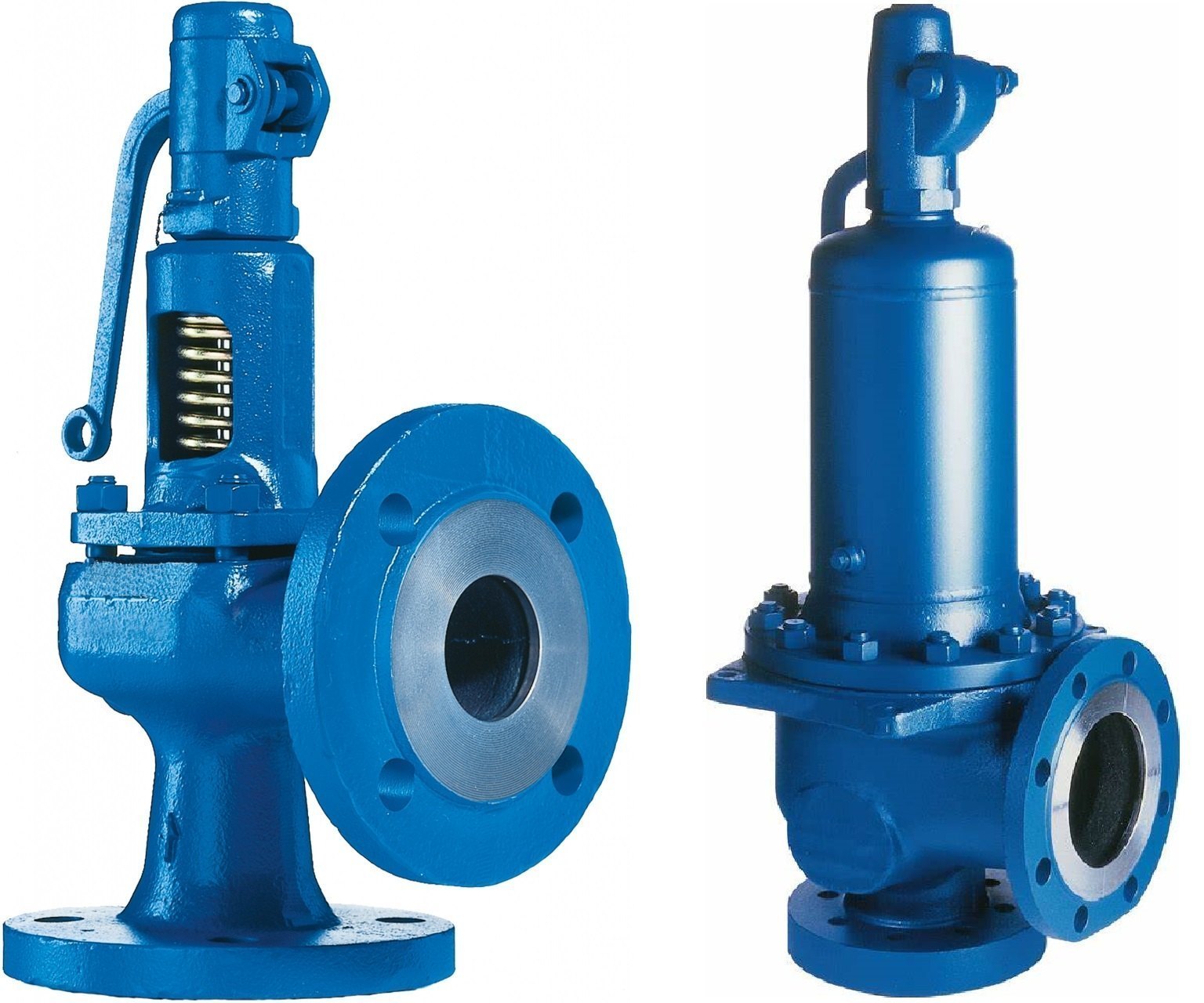

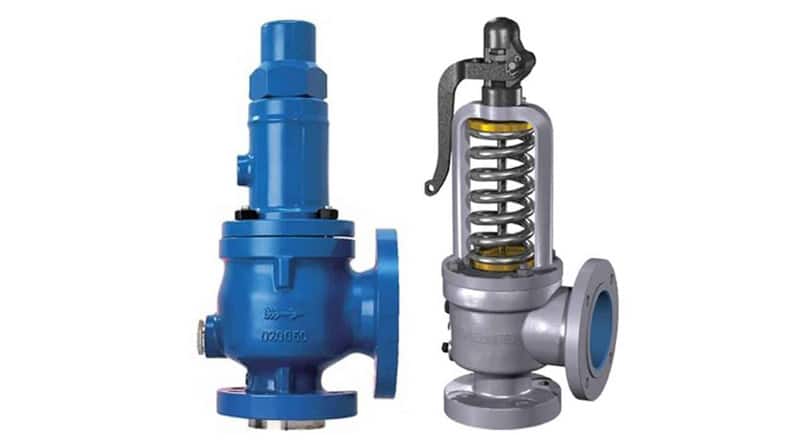

Safety Relief Valves
Safety Relief Valves
Safety devices that automatically discharge fluid to protect equipment from overpressure.
Select product type:
Select size (inch · dn):
Select operation type:
Select body material:
Select end connection:
10
Minimum order quantity: 10 piecesFrom: $100 - $500
Specifications
Specifications
product typeSafety Valve, Relief Valve, Pilot Operated Safety Valve
size (inch · dn)1/2" (DN15), 3/4" (DN20), 1" (DN25), 1.5" (DN40), 2" (DN50), 2.5" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300), 14" (DN350), 16" (DN400)
operation typeSpring Loaded, Pilot Operated
body materialWCB, CF8M (SS316), Monel (option)
end connectionFlanged RF/RTJ, Threaded
application / serviceSteam, Gas, Liquid Services
coating / protectionPainted
design standardASME Section VIII, API 526
disc / closure materialSS Disc/Nozzle
pressure rating (asme class)Class 150, Class 300, Class 600, Class 900, Class 1500
pressure rating (pn)PN16, PN25, PN40, PN63, PN100
seat materialMetal, Soft Seat (PTFE)
testing standardAPI 598, ISO 5208, EN 12266-1
country of originMade in India
