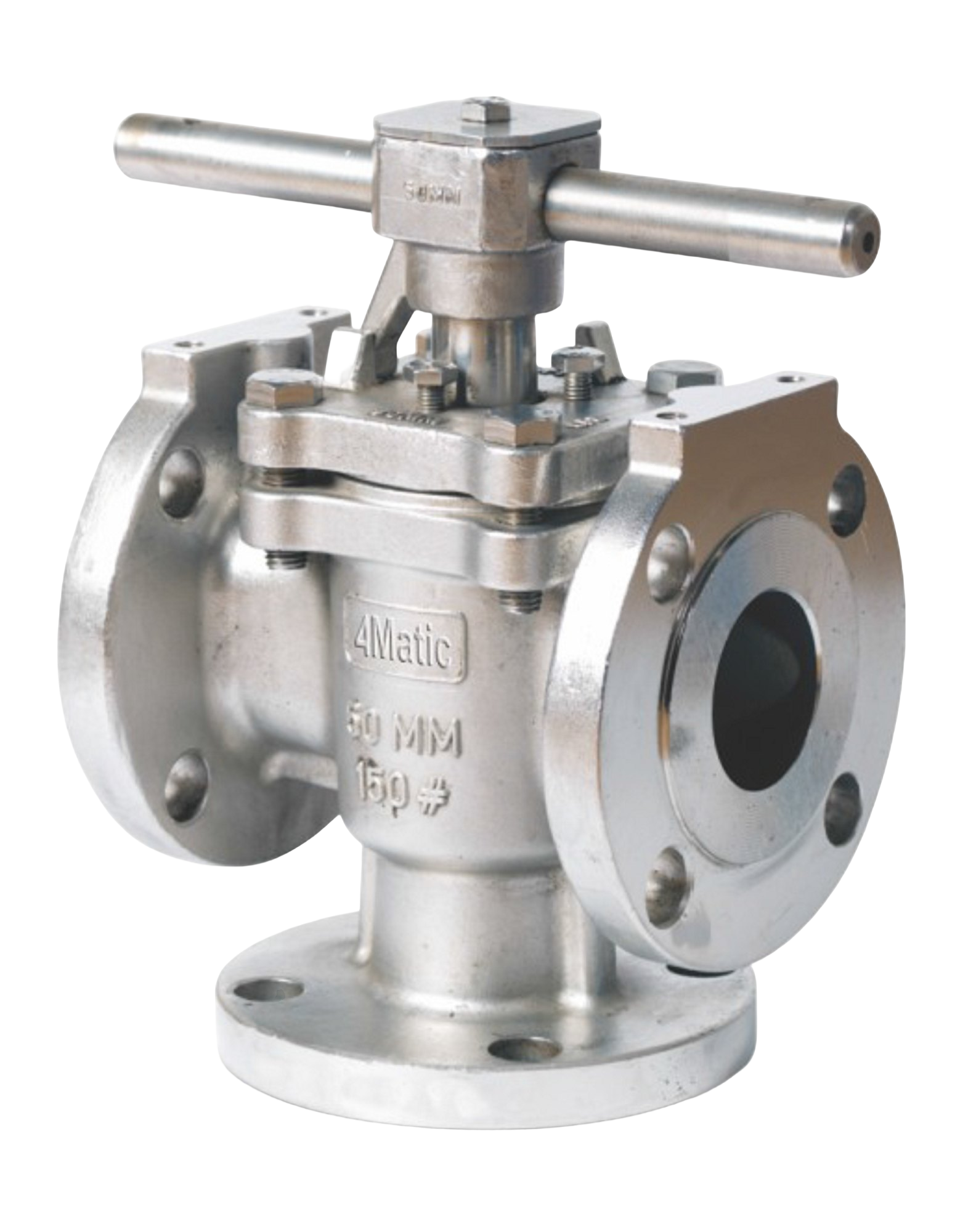

Plug Valves
Plug Valves
Quarter-turn valves with cylindrical or tapered plug for on/off and throttling service.
Select product type:
Select size (inch · dn):
Select operation type:
Select body material:
Select end connection:
10
Minimum order quantity: 10 piecesFrom: $100 - $500
Specifications
Specifications
product typeLubricated Plug, Non-Lubricated (PTFE Sleeved), Eccentric Plug
size (inch · dn)1/2" (DN15), 3/4" (DN20), 1" (DN25), 1.5" (DN40), 2" (DN50), 2.5" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300), 14" (DN350), 16" (DN400)
operation typeLever Operated, Gear Operated, Actuated
body materialWCB, CF8M (SS316), DI
end connectionFlanged RF/RTJ, Threaded, Butt Weld
application / serviceOil & Gas, Chemical, Slurry
coating / protectionPainted, Epoxy Coated
design standardAPI 6D, API 599
disc / closure materialPlug (CS/SS)
pressure rating (asme class)Class 150, Class 300, Class 600
pressure rating (pn)PN16, PN25, PN40
seat materialPTFE Sleeve, Metal
testing standardAPI 598, ISO 5208, EN 12266-1
country of originMade in India
