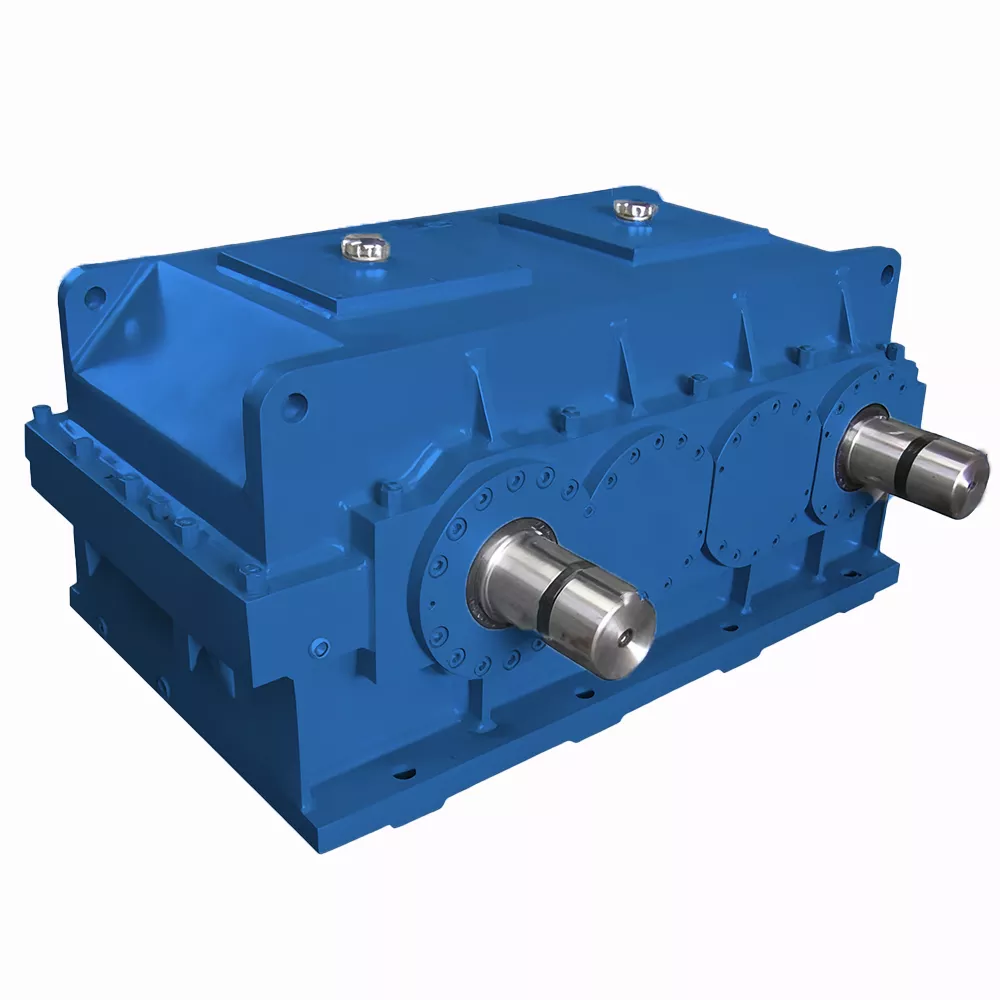

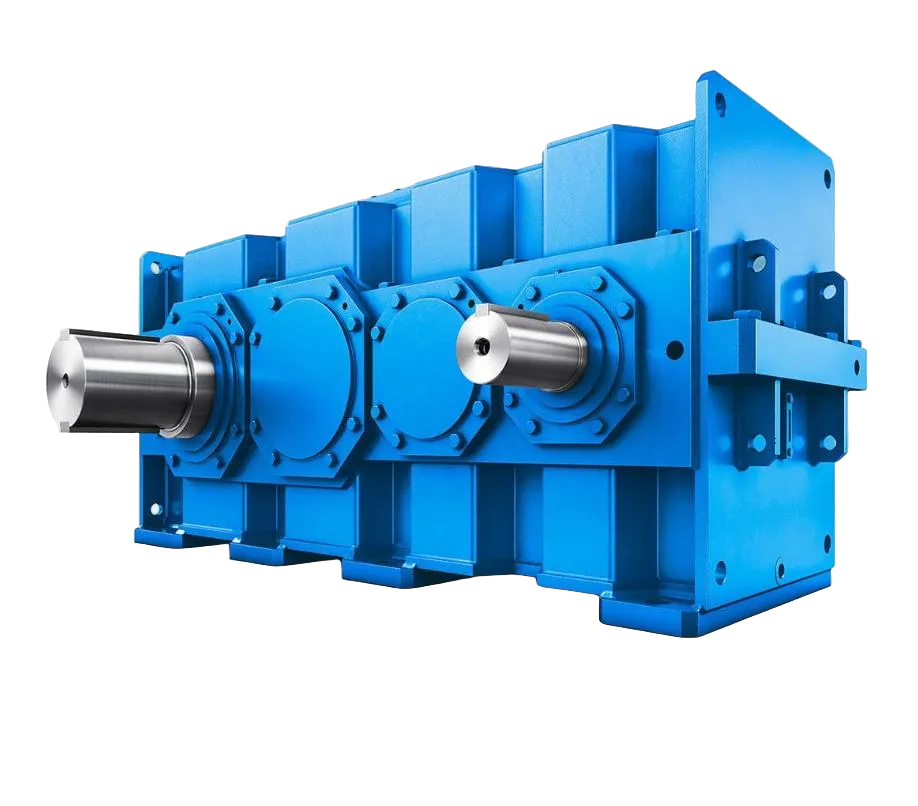

Parallel Shaft Helical Gearbox
Parallel Shaft Helical Gearbox
Parallel shaft gearbox for conveyors and heavy industrial machinery.
Select application:
Select mounting type:
Select orientation:
Select input type:
Select output type:
Select housing material:
Select gear material:
Select industries:
1
From: $400 - $5000
Specifications
Specifications
applicationConveyors, Crushers, Elevators
mounting typeFoot, Torque Arm
orientationHorizontal
input typeIEC Motor, Flexible Coupling
output typeSolid/Hollow Output Shaft
gear typeParallel Helical
gear ratio range5:1–500:1
torque range (nm)500–50000
power range (kw)2.2–250
service factor1.5–2.5
housing materialCast Iron, Fabricated Steel
gear materialCase Carburised Alloy Steel
lubrication typeForced Oil, Oil Bath
protection classIP55 (with motor)
industriesMining, Cement, Material Handling
efficiency (%)94–97
featuresHigh torque, robust housing
country of originIndia
