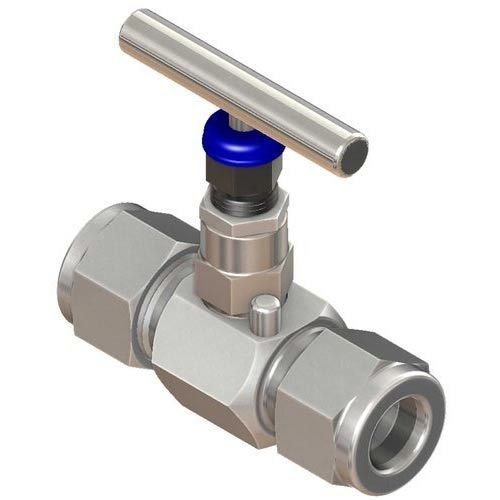

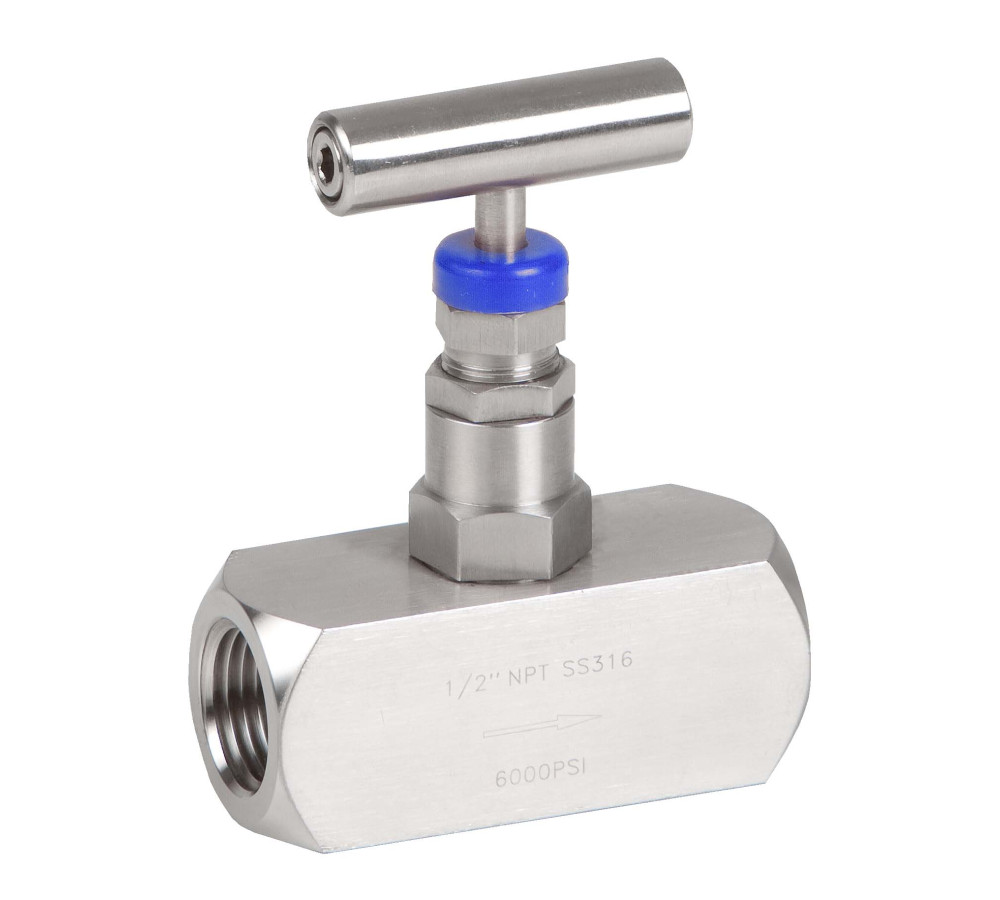

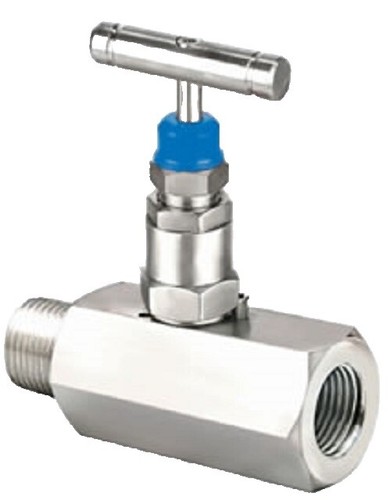

Needle Valves
Needle Valves
Precision instrumentation valves for fine flow control and isolation in high-pressure services.
Select product type:
Select size (inch · dn):
Select operation type:
Select body material:
Select end connection:
10
Minimum order quantity: 10 piecesFrom: $100 - $500
Specifications
Specifications
product typeStraight Pattern, Angle Pattern, Block & Bleed
size (inch · dn)1/8" (DN6), 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1.5" (DN40), 2" (DN50)
operation typeHandwheel Operated
body materialStainless Steel (SS304), Stainless Steel (SS316), Carbon Steel
end connectionThreaded NPT, Threaded BSP, Tube OD
application / serviceInstrumentation, Oil & Gas, Chemical
coating / protectionPassivated, Zinc Plated
design standardASME, MSS SP-99
disc / closure materialSS Needle/Stem (Hard Tipped)
pressure rating (pn)PN100, PN160, PN250, PN400
seat materialMetal to Metal, PTFE
testing standardAPI 598, ISO 5208, EN 12266-1
country of originMade in India
