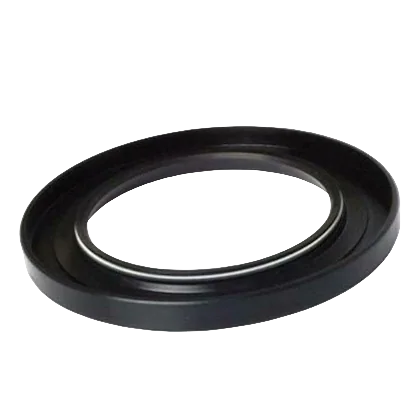

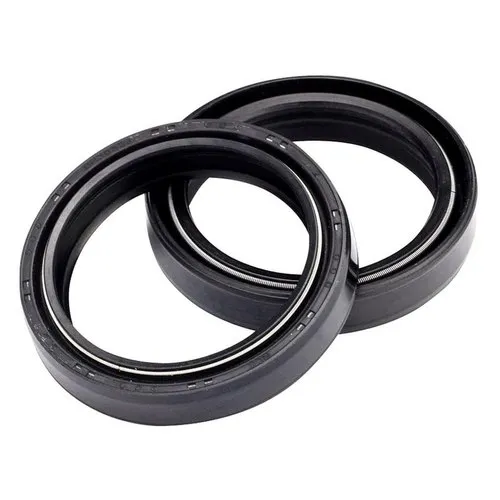

NBR Oil Seal
NBR Oil Seal
Radial lip seal for shafts; general oil/grease retention.
50
Minimum order quantity: 50 piecesFrom: $0.15 - $1.5
Specifications
Specifications
- material options
- NBR, steel case, spring steel
- media compatibility
- Mineral oils, grease
- motion
- Rotary
- pressure range
- Up to ~0.5 bar (typical)
- seal function
- Dynamic
- size range / spec
- ID 10–200 mm, OD 20–250 mm, W 4–15 mm
- standards / references
- DIN 3760
- temperature range (°c)
- -20 to 100
- typical applications
- Gearboxes, motors, pumps
