Lined Valves
Lined Valves
Valves with corrosion-resistant linings for aggressive chemical services.
Select product type:
Select size (inch · dn):
Select operation type:
Select body material:
Select end connection:
10
Minimum order quantity: 10 piecesFrom: $100 - $500
Specifications
Specifications

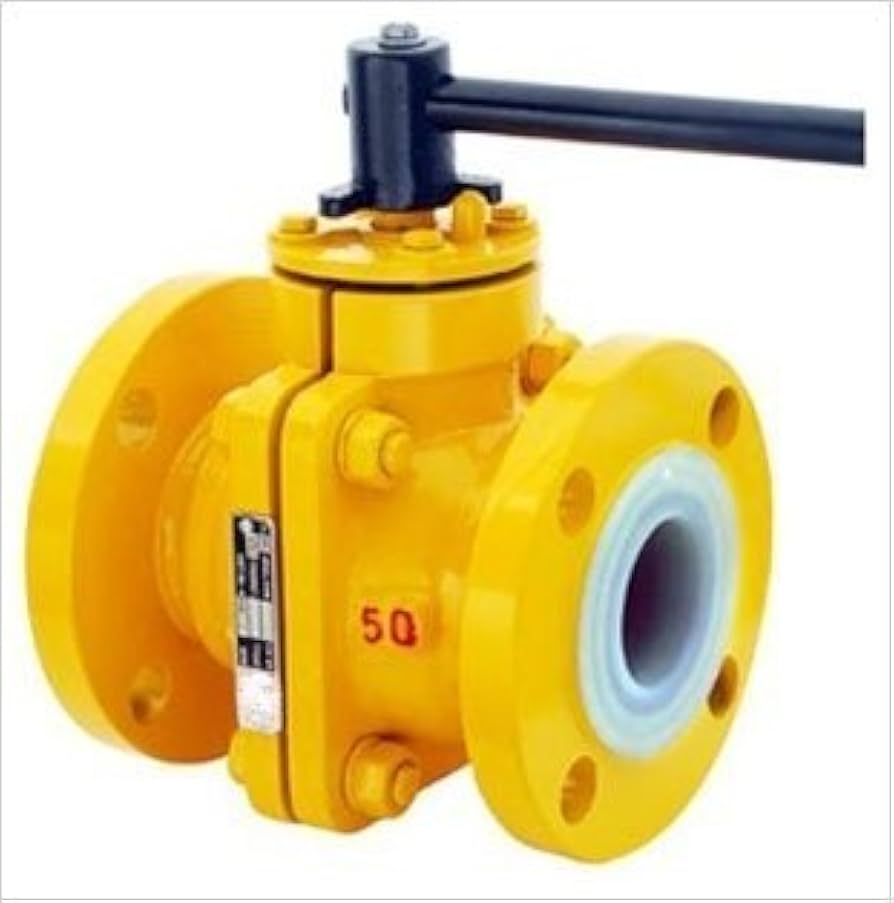

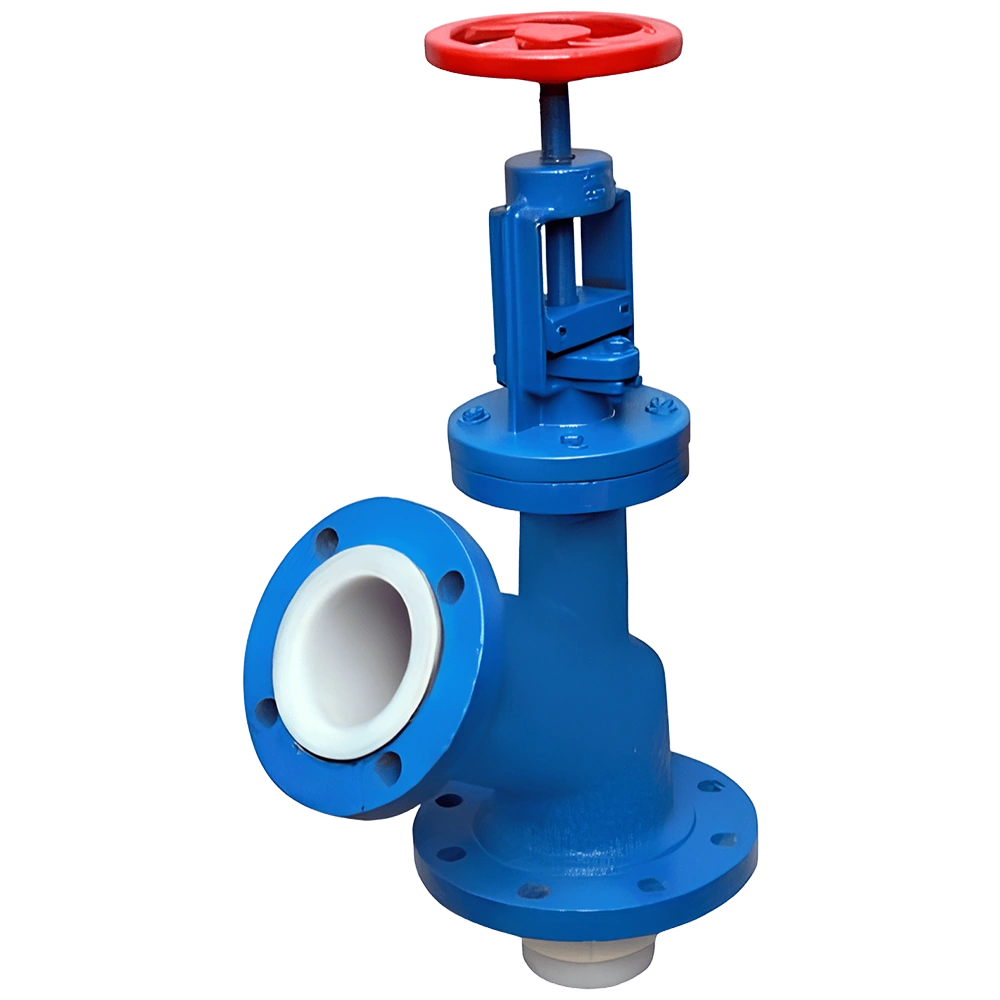

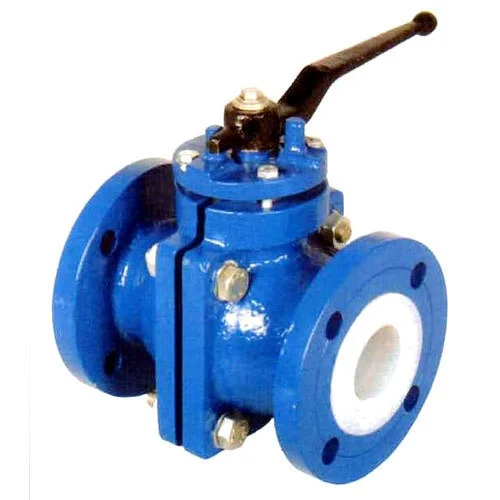

product typePFA Lined Ball, PTFE Lined Butterfly, PTFE Lined Plug, Diaphragm
size (inch · dn)1/2" (DN15), 3/4" (DN20), 1" (DN25), 1.5" (DN40), 2" (DN50), 2.5" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
operation typeLever, Handwheel, Actuated
body materialCarbon Steel (WCB) with PTFE/PFA Lining
end connectionFlanged
application / serviceAcids, Alkalis, Corrosive Chemicals
coating / protectionPainted
design standardASME B16.34, API
disc / closure materialSS/PTFE Lined Ball/Disc/Plug
pressure rating (asme class)Class 150
pressure rating (pn)PN10, PN16
seat materialPTFE, PFA
testing standardAPI 598, ISO 5208, EN 12266-1
country of originMade in India
