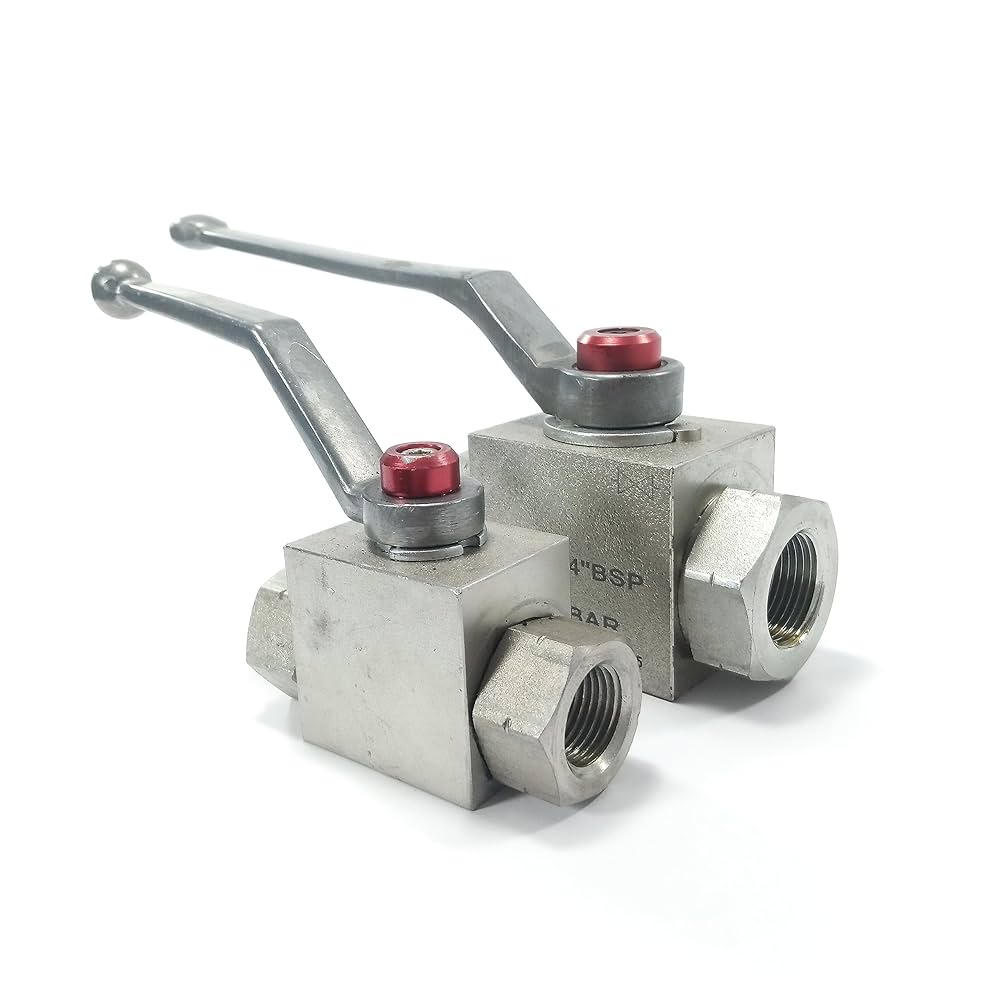

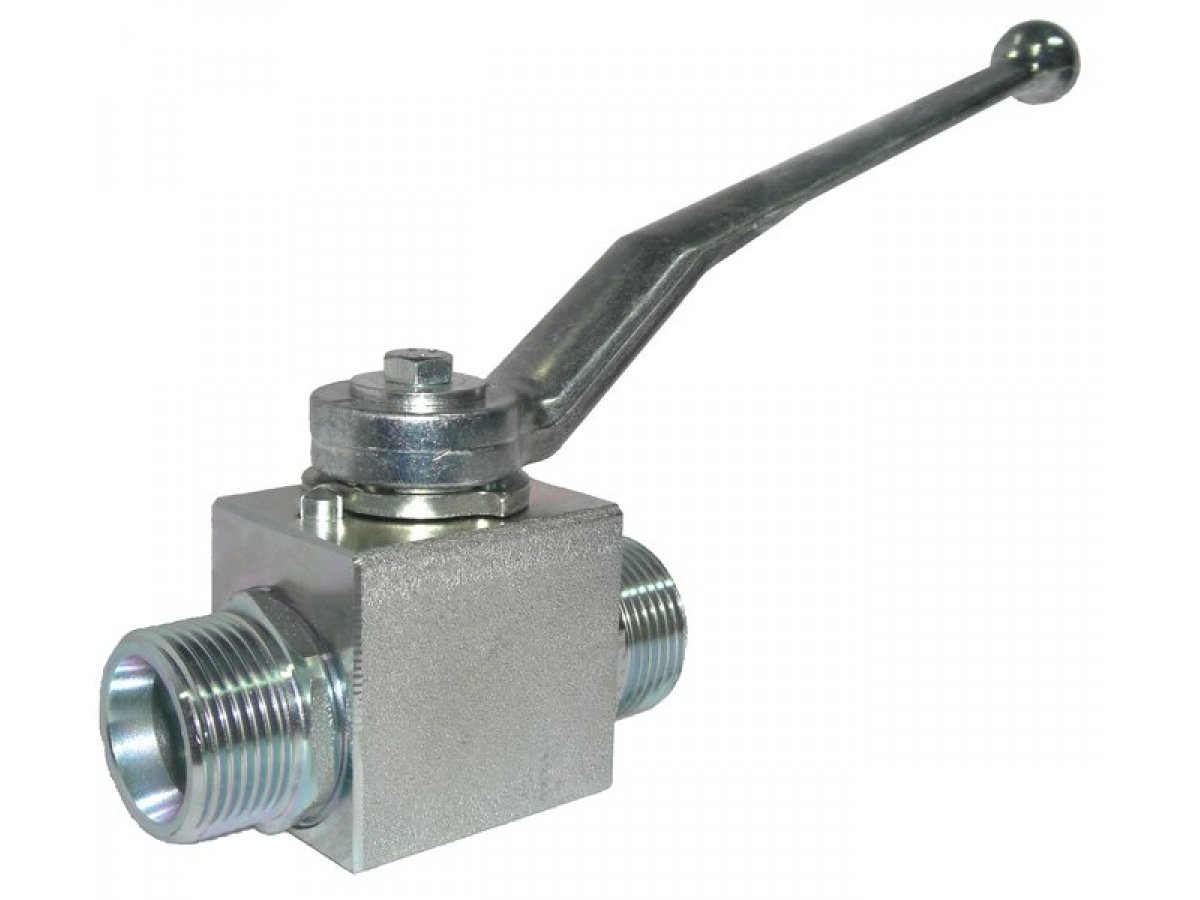

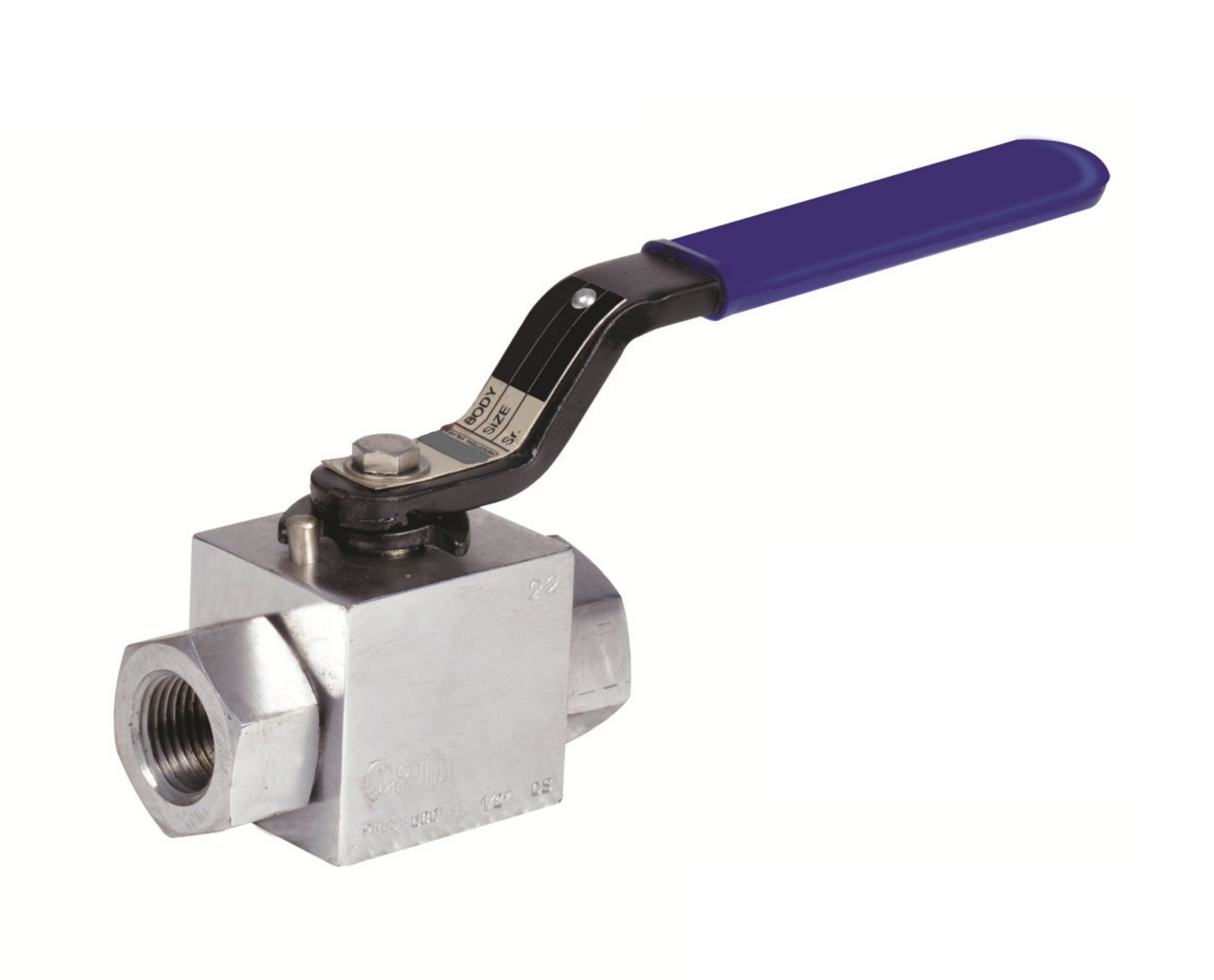

High Pressure Ball Valves
High Pressure Ball Valves
Ball valves designed for high-pressure instrumentation and process applications.
Select product type:
Select size (inch · dn):
Select operation type:
Select body material:
Select end connection:
10
Minimum order quantity: 10 piecesFrom: $100 - $500
Specifications
Specifications
product type2-Way HP Ball, 3-Way HP Ball
size (inch · dn)1/8" (DN6), 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1.5" (DN40), 2" (DN50)
operation typeLever Operated, Pneumatic Actuated
body materialSS316, Alloy Steel
end connectionThreaded NPT, Tube OD, Flanged (HP)
application / serviceHydraulic, Oil & Gas, Chemical
coating / protectionPassivated
design standardAPI 608, ASME B16.34
disc / closure materialSS Ball (Hardened)
pressure rating (asme class)Class 600, Class 900, Class 1500, Class 2500
pressure rating (pn)PN160, PN250, PN400
seat materialPEEK, RPTFE, Metal
testing standardAPI 598, ISO 5208, EN 12266-1
country of originMade in India
