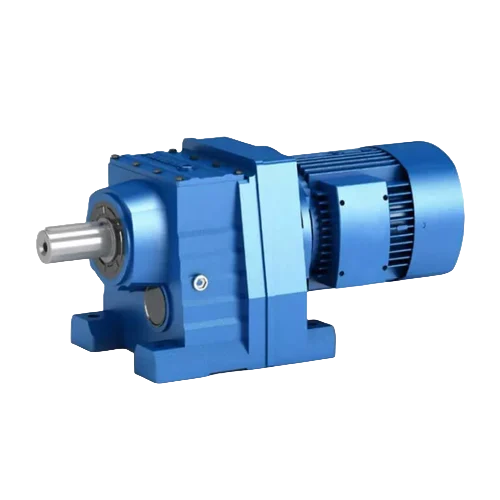

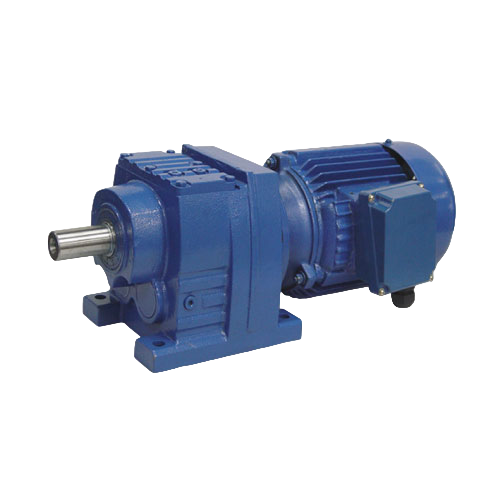

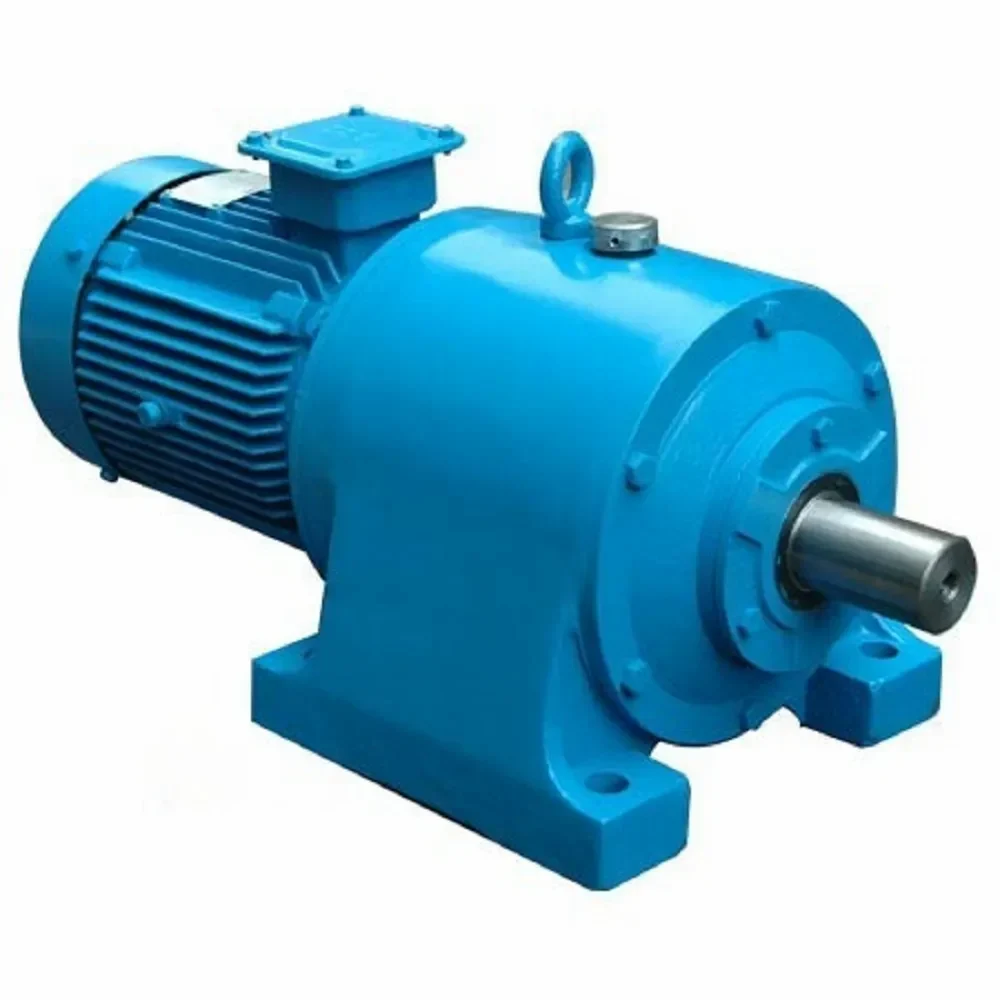

Helical Gearmotor
Helical Gearmotor
Motor integrated with helical gearbox for efficient inline drive.
Select application:
Select mounting type:
Select orientation:
Select input type:
Select output type:
Select housing material:
Select gear material:
Select industries:
1
From: $150 - $1200
Specifications
Specifications
applicationConveyors, Agitators, Fans
mounting typeFoot, B5 Flange
orientationHorizontal
input typeIEC Motor Direct Mount
output typeSolid Shaft
gear typeHelical
gear ratio range3:1–200:1
torque range (nm)60–5000
power range (kw)0.37–30
service factor1.3–1.8
housing materialCast Iron, Aluminium
gear materialAlloy Steel
lubrication typeOil Bath
protection classIP55, IP65
industriesManufacturing, HVAC
efficiency (%)92–95
featuresIntegrated motor+gearbox
country of originIndia
