Name: Guide / Pillar Bush
Brand: Himalay.io

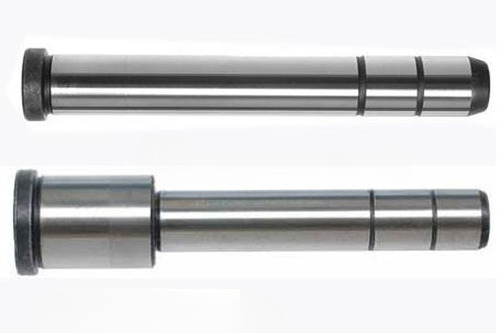

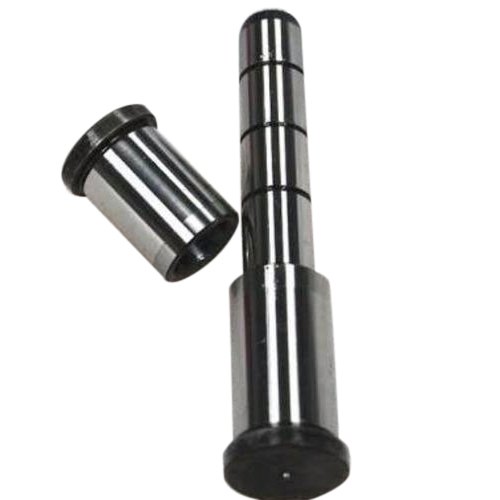

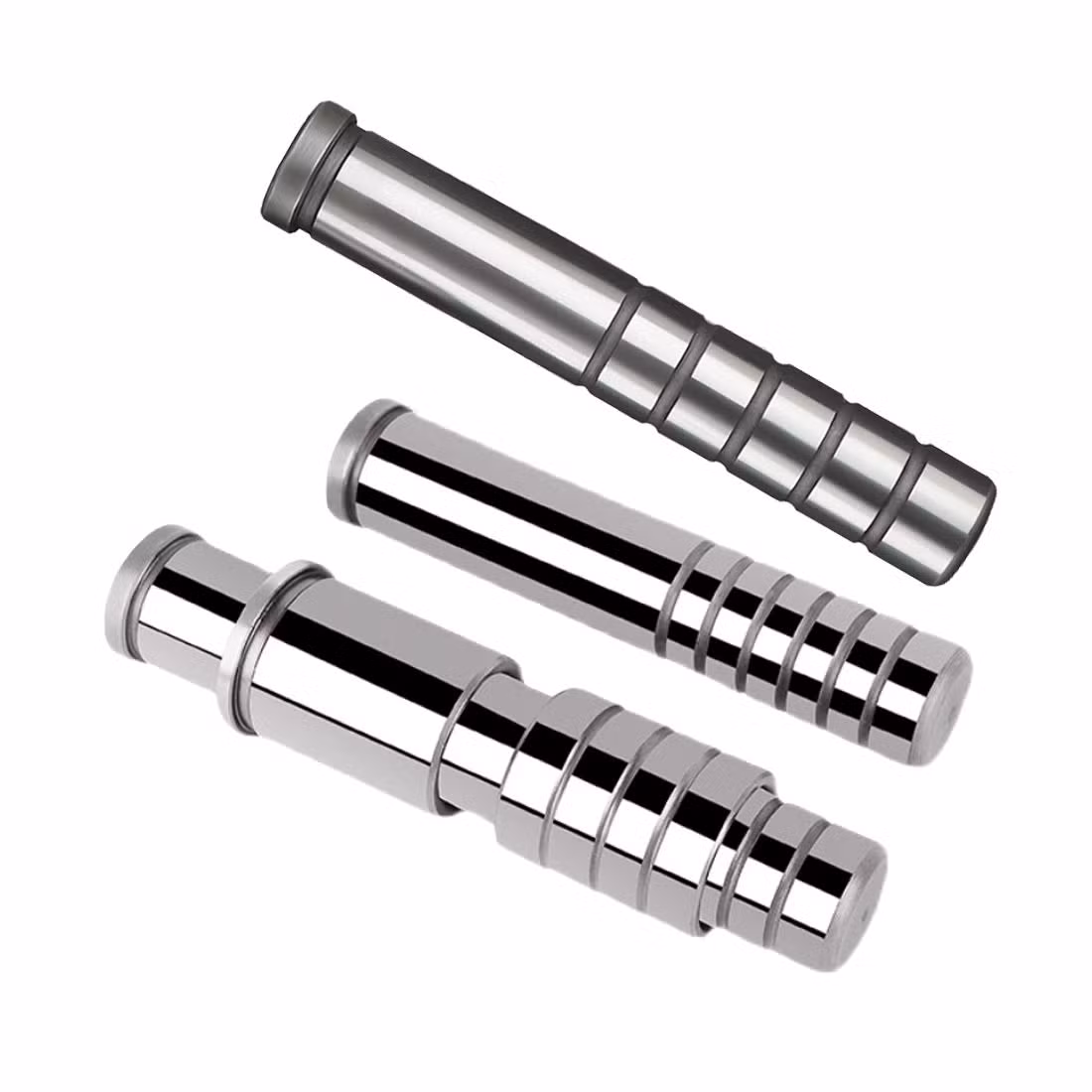

Guide Pillar Bush

Guide Pillar Bush

Guide / Pillar Bush

High precision guide bush for die sets & mould guiding

Select material:

Select flange diameter:

Select flange thickness:

Select split / solid:

Select hardness:

Minimum order quantity: 5 pieces

From: $2 - $25

Specifications

applicationTool rooms, die molds, stamping dies

materialEN31, EN19, Hardened Steel

bushing typeGuide, Pillar

flange diameter40mm, 50mm, 60mm

flange thickness3mm, 4mm

split / solidSolid

hardnessHRC55, HRC58, HRC60

load capacityRadial

tolerance classH6, H7

lubrication typeGrease

temperature range−10°C to 180°C

standardsDIN 9825, ISO
