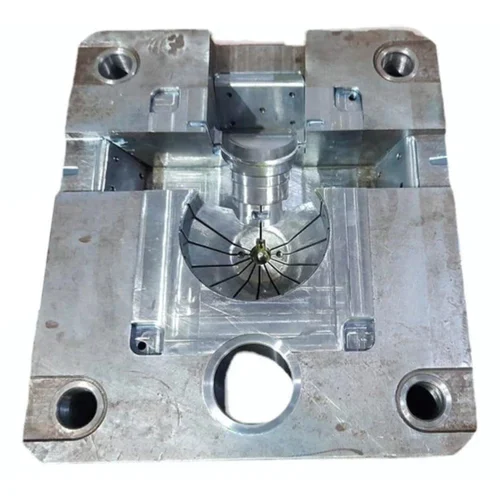

Gravity Die Casting Mould
Gravity Die Casting Mould
Permanent mould used for gravity die casting of non-ferrous metals.
Select maximum part size (mm):
Select number of cavities:
Select tolerance capability:
Select tool hardness (hrc):
Select tool life (shots / cycles):
Select tool material:
Select workpiece material compatibility:
1
From: $5000 - $25000
Specifications
Specifications
heat treatmentNitrided
machine compatibilityGravity Die Casting Machine
manufacturing process compatibilityGravity Die Casting
maximum part size (mm)200300400
number of cavities1, 2
surface finish capabilityPolished
tolerance capability±0.1, ±0.2
tool hardness (hrc)45, 48, 50
tool life (shots / cycles)100000200000
tool materialH13 Tool Steel
tooling typeMetal Casting Die
workpiece material compatibilityAluminium, Brass
