Flanged End Valves
Flanged End Valves

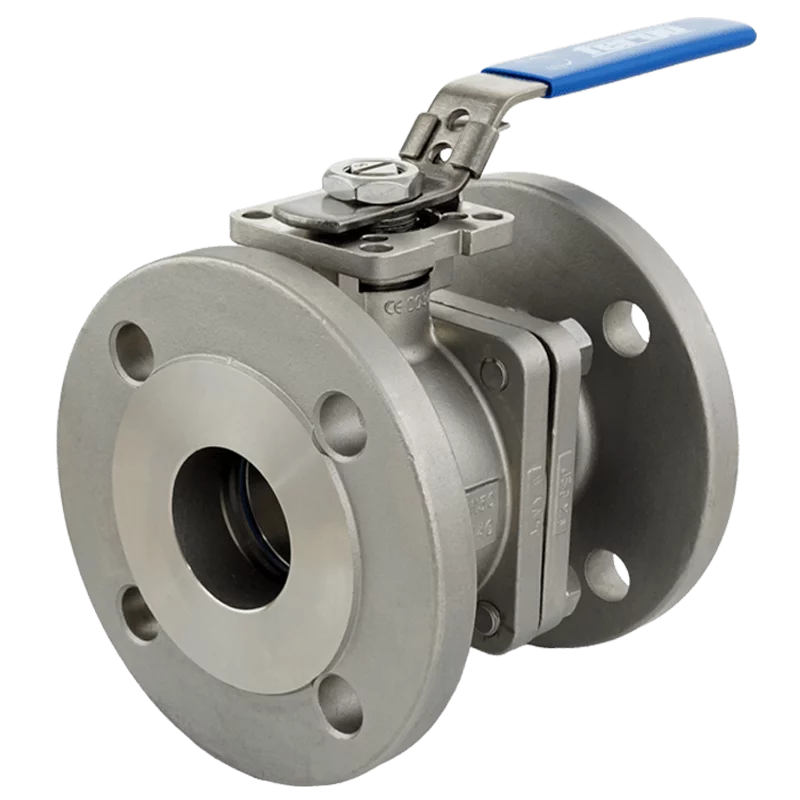

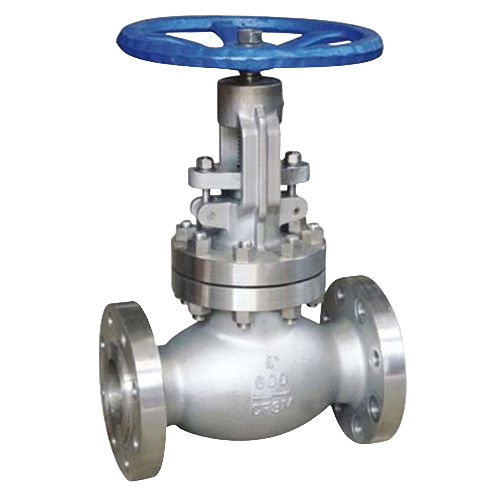

Valves supplied with flanged ends for easy bolt-up in process piping.
Select product type:
Select size (inch · dn):
Select operation type:
Select body material:
Select end connection:
10
Minimum order quantity: 10 piecesFrom: $100 - $500
Specifications
Specifications
product typeGate, Globe, Check, Ball, Butterfly
size (inch · dn)2" (DN50), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300), 14" (DN350), 16" (DN400), 18" (DN450), 20" (DN500), 24" (DN600)
operation typeHandwheel Operated, Lever Operated, Gear Operated, Actuated
body materialWCB, SS304, SS316, DI
end connectionFlanged RF, Flanged RTJ
application / serviceWater, Oil, Gas, Steam, Chemical
coating / protectionPainted, Epoxy Coated
design standardASME B16.5, ASME B16.34
disc / closure materialWedge/Disc/Ball/Plug (CS/SS)
pressure rating (asme class)Class 150, Class 300, Class 600, Class 900
pressure rating (pn)PN10, PN16, PN25, PN40, PN63
seat materialPTFE, Metal, Resilient (EPDM)
testing standardAPI 598, ISO 5208, EN 12266-1
country of originMade in India
