Disc Valves
Disc Valves

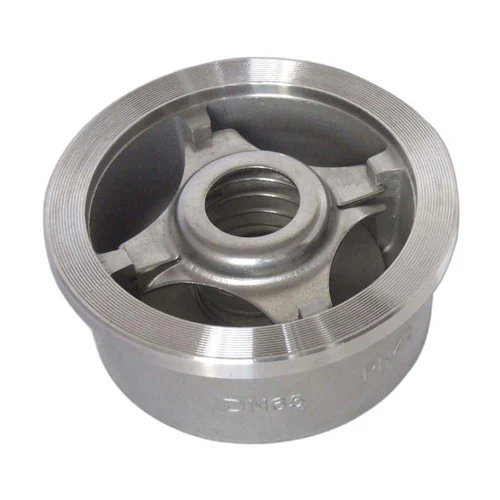

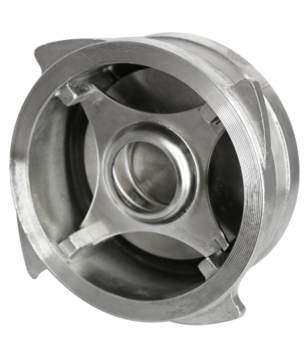

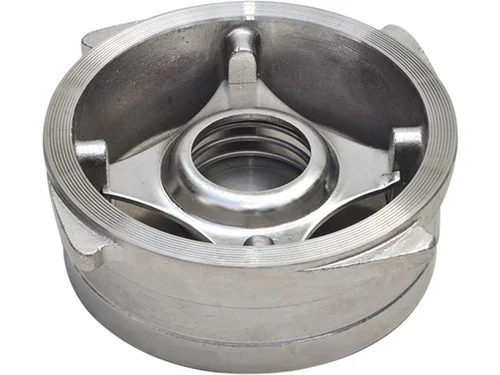

Wafer type check valves using a single disc or dual plate to prevent reverse flow.
Select product type:
Select size (inch · dn):
Select body material:
Select end connection:
10
Minimum order quantity: 10 piecesFrom: $100 - $500
Specifications
Specifications
product typeSingle Disc Wafer Check, Dual Plate Wafer Check
size (inch · dn)1/2" (DN15), 3/4" (DN20), 1" (DN25), 1.5" (DN40), 2" (DN50), 2.5" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300), 14" (DN350), 16" (DN400)
body materialWCB, CF8M (SS316), DI
end connectionWafer, Flanged
application / serviceWater, Oil, Gas, Steam
coating / protectionPainted, Epoxy Coated
design standardAPI 594
disc / closure materialSS Disc, DI Disc
pressure rating (asme class)Class 150, Class 300, Class 600
pressure rating (pn)PN16, PN25, PN40
seat materialMetal, EPDM
testing standardAPI 598, ISO 5208, EN 12266-1
country of originMade in India
