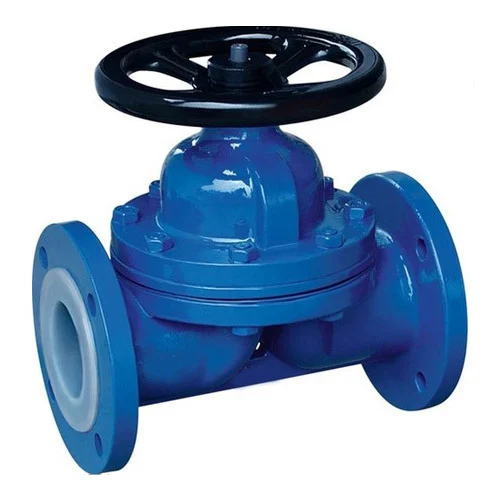

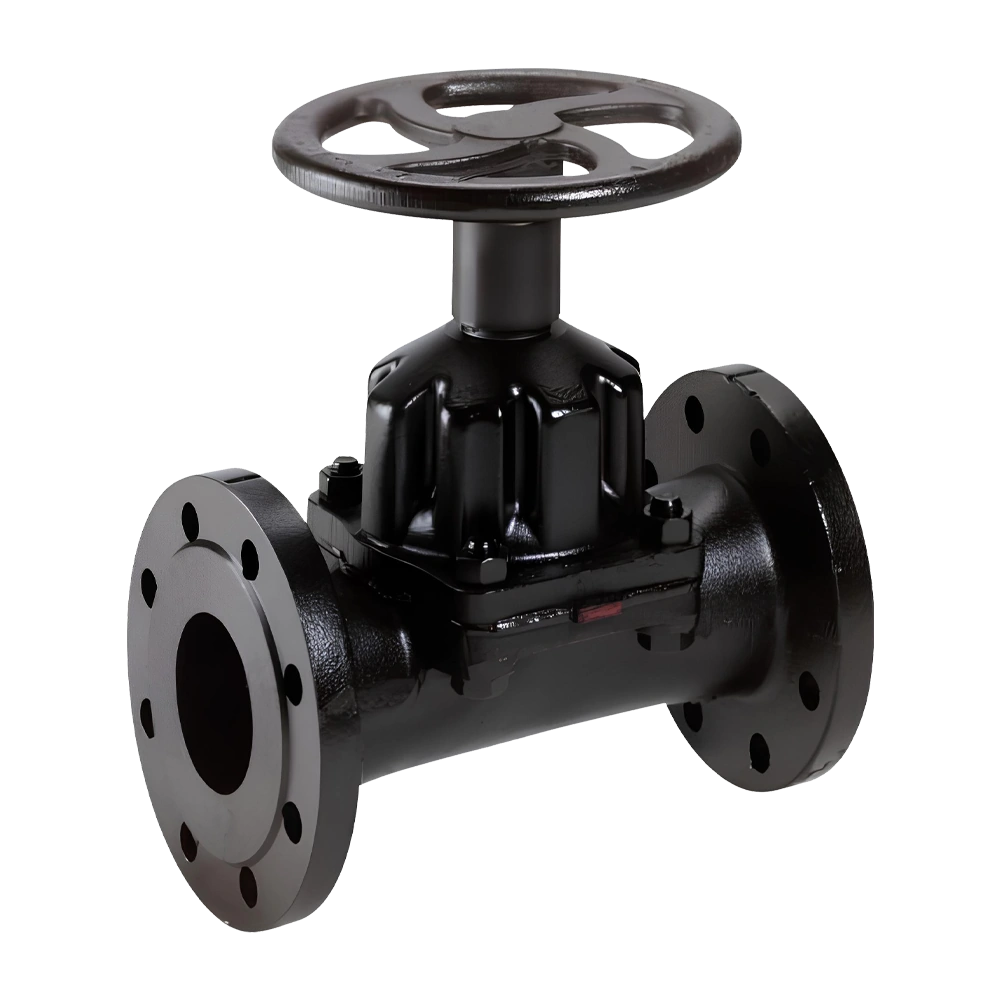

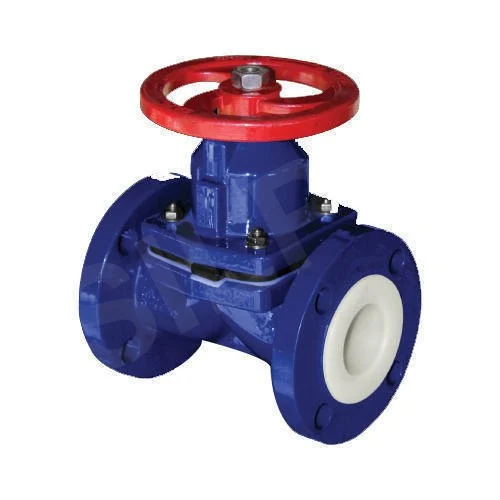

Diaphragm Valves
Diaphragm Valves
Valves using a flexible diaphragm for tight shutoff in corrosive and abrasive services.
Select product type:
Select size (inch · dn):
Select operation type:
Select body material:
Select end connection:
10
Minimum order quantity: 10 piecesFrom: $100 - $500
Specifications
Specifications
product typeWeir Type, Straight Through, Lined Diaphragm
size (inch · dn)1/2" (DN15), 3/4" (DN20), 1" (DN25), 1.5" (DN40), 2" (DN50), 2.5" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
operation typeHandwheel Operated, Pneumatic Actuated, Electric Actuated
body materialCast Iron, Ductile Iron, Stainless Steel, Lined Body (PTFE/PP)
end connectionFlanged, Threaded
application / serviceChemical, Mining Slurry, Water Treatment
coating / protectionLined, Epoxy Coated
design standardBS EN 13397, ASME
disc / closure materialDiaphragm (EPDM/PTFE/NBR)
pressure rating (asme class)Class 150
pressure rating (pn)PN10, PN16
seat materialElastomer/Diaphragm
testing standardAPI 598, ISO 5208, EN 12266-1
country of originMade in India
