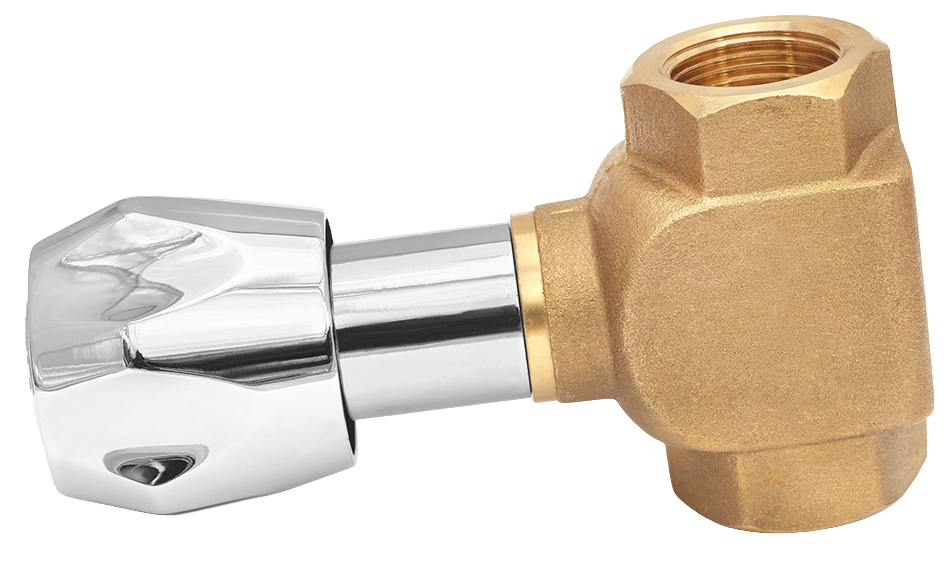

Concealed Valves
Concealed Valves
Plumbing stop valves with concealed trim for aesthetic wall installation.
Select product type:
Select size (inch · dn):
Select operation type:
Select body material:
Select end connection:
10
Minimum order quantity: 10 piecesFrom: $100 - $500
Specifications
Specifications
product typeConcealed Stop Valve, Concealed Diverter
size (inch · dn)1/2" (DN15), 3/4" (DN20), 1" (DN25), 1.25" (DN32), 1.5" (DN40), 2" (DN50)
operation typeHandwheel/Knob
body materialBrass, Stainless Steel
end connectionThreaded BSP, Solder/Braze
application / servicePlumbing (Hot/Cold Water)
coating / protectionChrome Plated
design standardEN, IS
disc / closure materialCeramic Disc/SS
pressure rating (pn)PN10, PN16
seat materialCeramic, Rubber
testing standardAPI 598, ISO 5208, EN 12266-1
country of originMade in India
