Cast Steel Valves
Cast Steel Valves

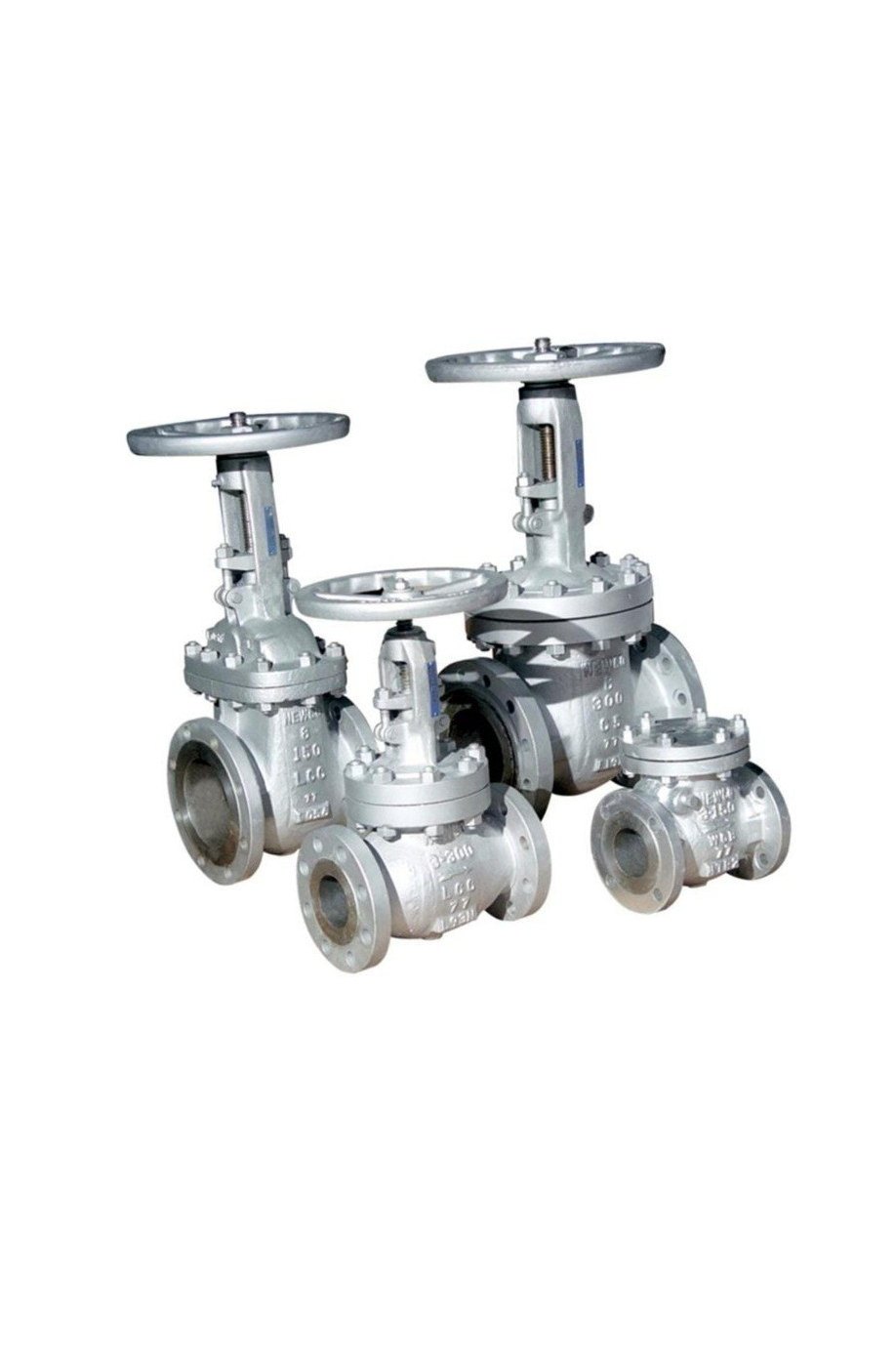

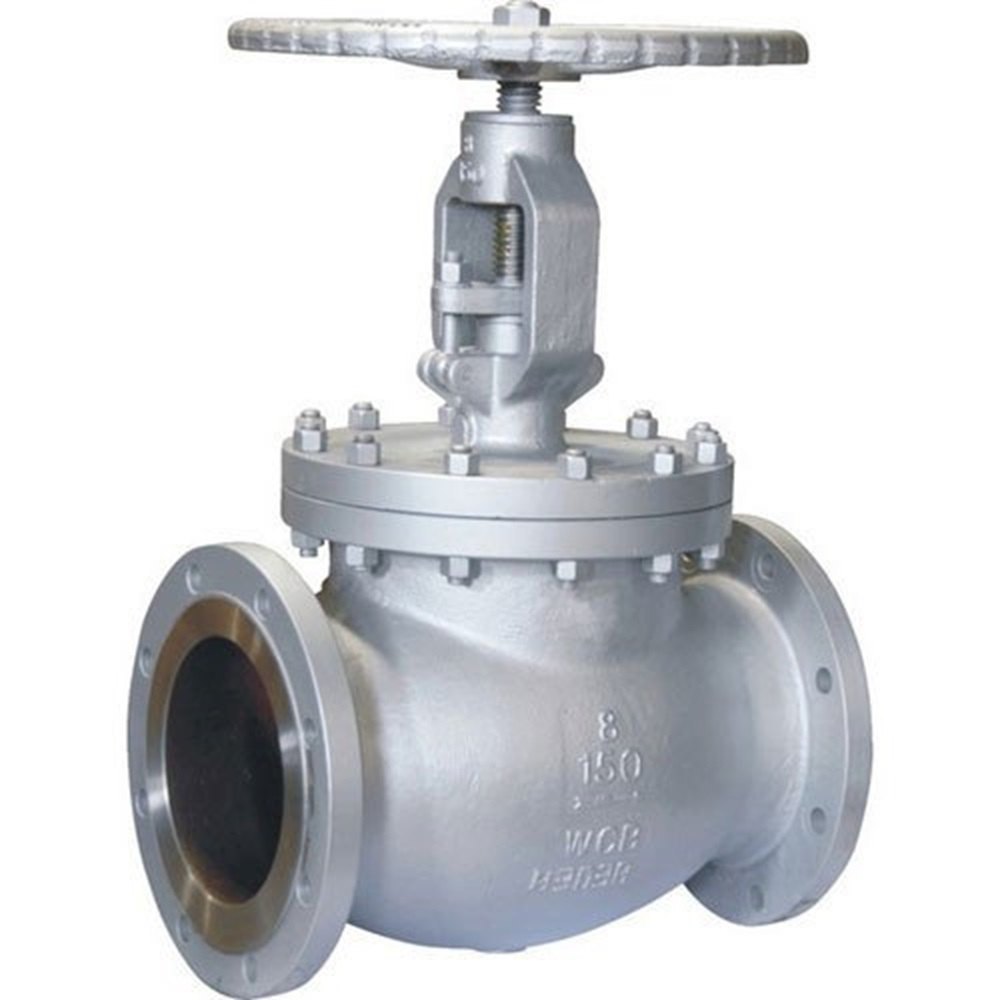

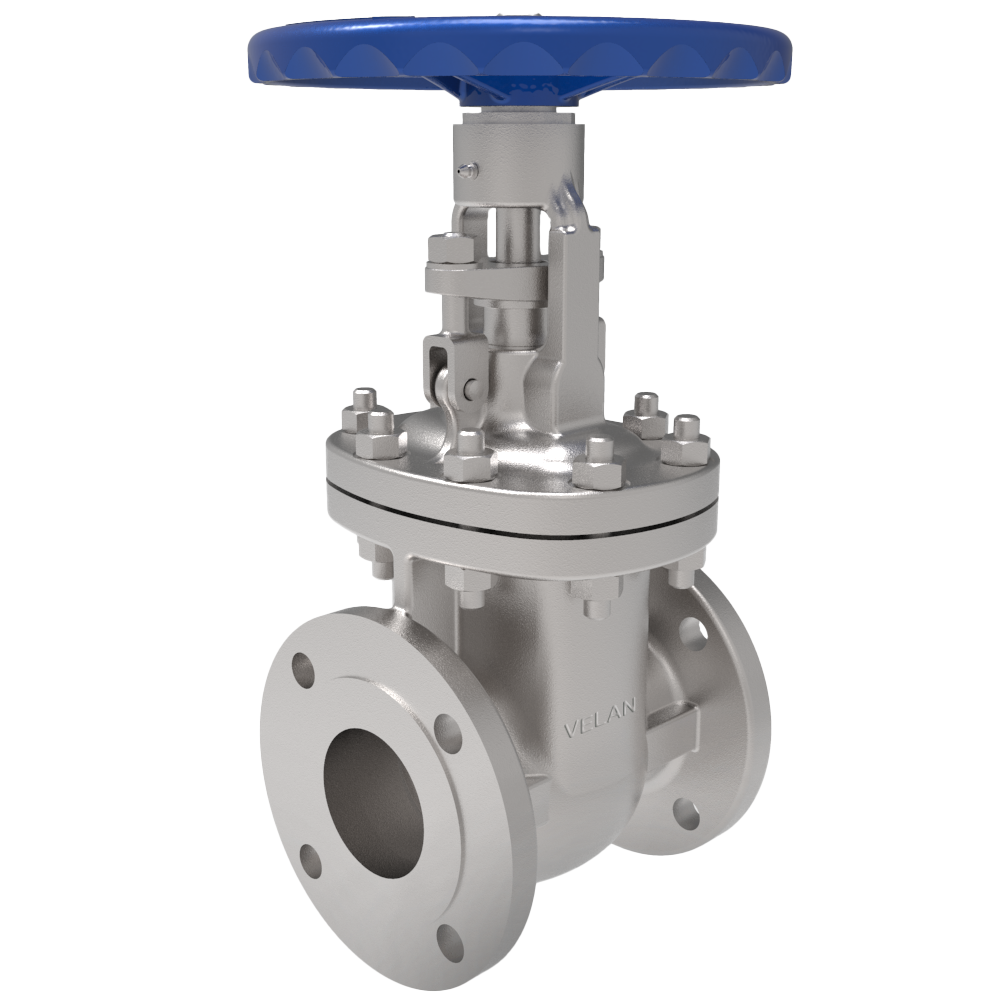

Valves with WCB/LCB bodies for higher pressure/temperature services in oil & gas and power.
Select product type:
Select size (inch · dn):
Select operation type:
Select body material:
Select end connection:
10
Minimum order quantity: 10 piecesFrom: $100 - $500
Specifications
Specifications
product typeGate, Globe, Check, Ball
size (inch · dn)1/2" (DN15), 3/4" (DN20), 1" (DN25), 1.5" (DN40), 2" (DN50), 2.5" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300), 14" (DN350), 16" (DN400)
operation typeHandwheel, Lever, Gear, Actuated
body materialWCB, LCB, WC6, CF8M
end connectionFlanged RF/RTJ, Butt Weld
application / serviceOil & Gas, Power, Chemical
coating / protectionPainted
design standardAPI 600/602/623, API 6D, ASME B16.34
disc / closure materialWedge/Disc/Ball (CS/SS)
pressure rating (asme class)Class 150, Class 300, Class 600, Class 900, Class 1500
pressure rating (pn)PN16, PN25, PN40, PN63, PN100
seat materialMetal, PTFE
testing standardAPI 598, ISO 5208, EN 12266-1
country of originMade in India
