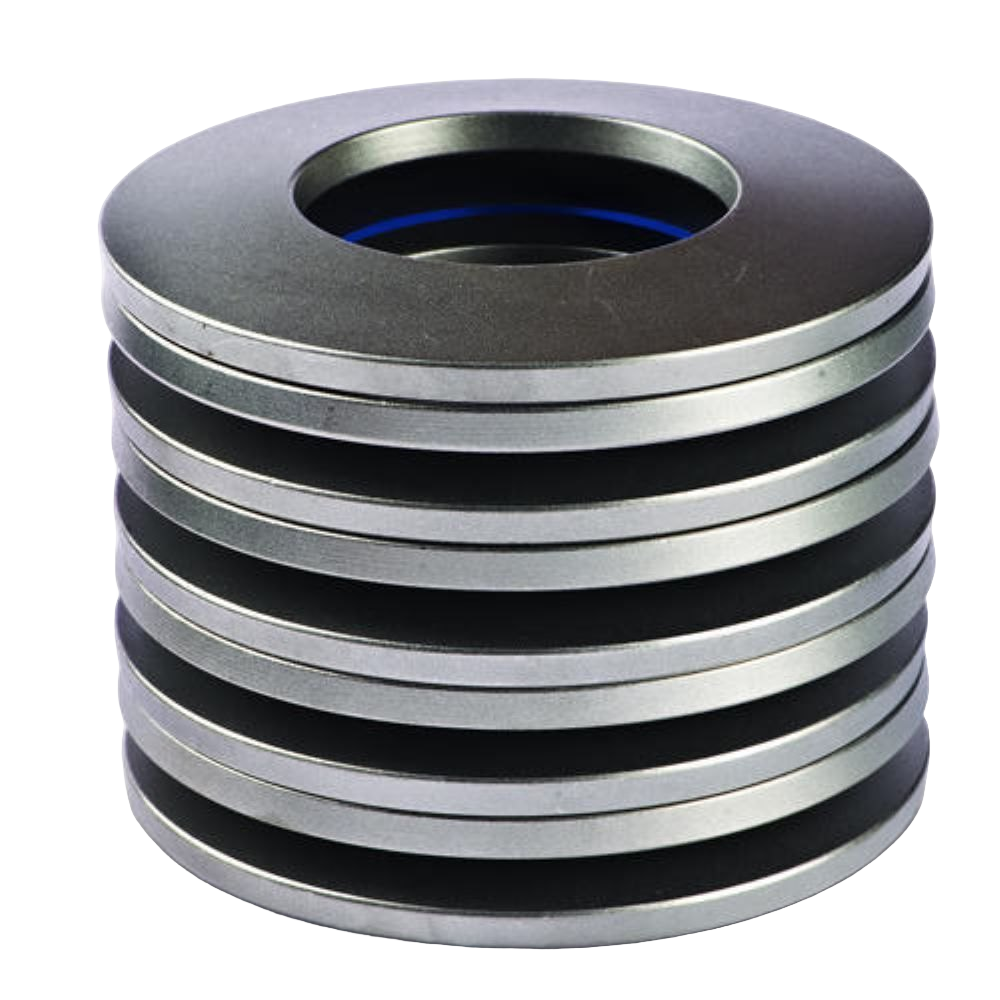

Belleville Disc Spring
Belleville Disc Spring
Conical disc spring for high loads.
50
Minimum order quantity: 50 piecesFrom: $0.1 - $5
Specifications
Specifications
application / industryHeavy Machinery
direction of winding—
end type—
free length (mm)—
heat treatmentHardened
inner diameter id (mm)10, 12, 16, 20, 25, 32, 40, 50
load at specified length (n)—
load typeCompression
materialSpring Steel
mounting styleStacked
number of active coils—
operating temperature (°c)-40 to 200
outer diameter od (mm)20253040506380100
solid length (mm)—
spring functionLoad Bearing
spring rate (n/mm)—
spring shapeConical
standard / specificationDIN 2093
surface finish / coatingPhosphated
wire diameter (mm)—
