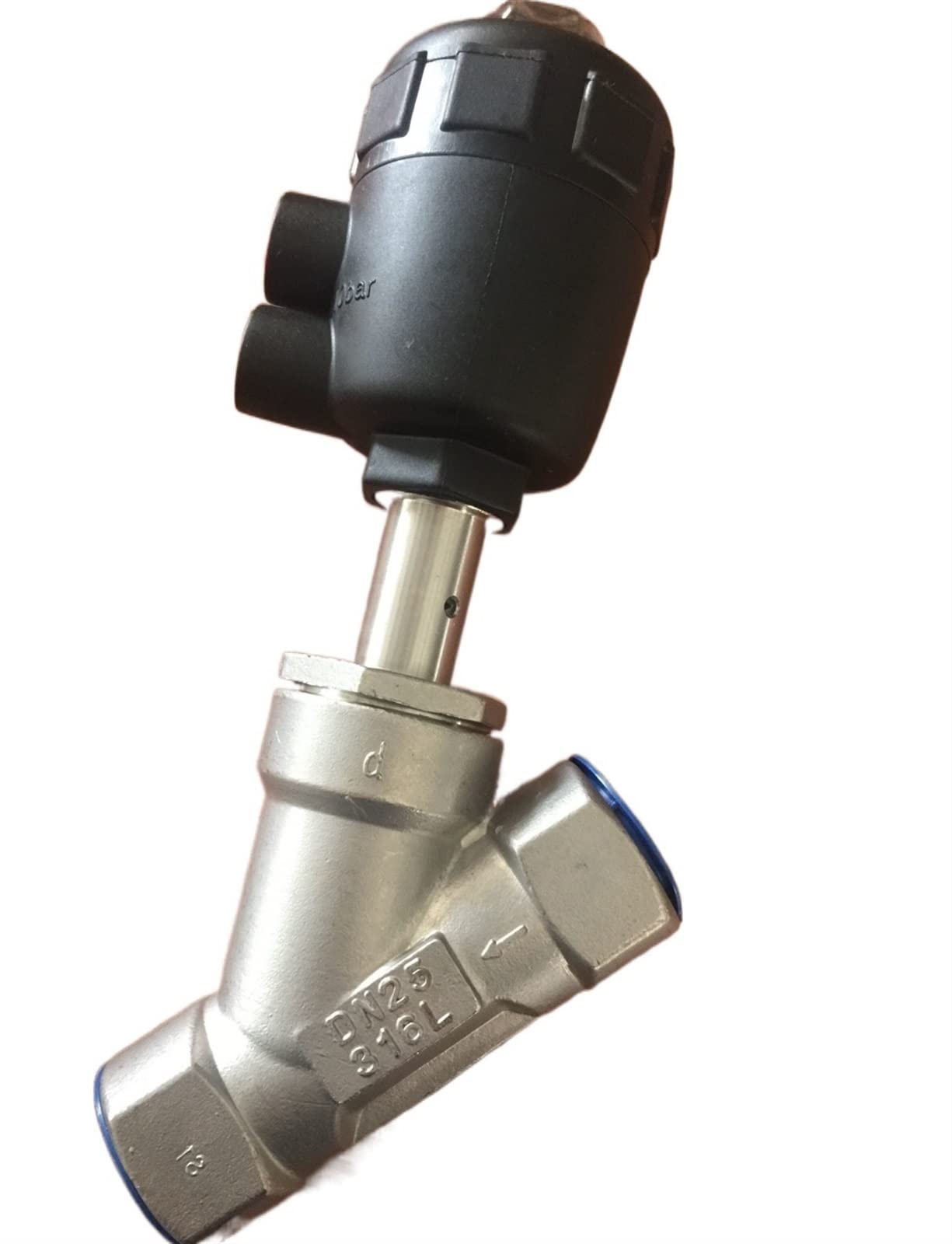

Angle Valves
Angle Valves
Valves with 90° body design for throttling or isolation with lower pressure drop than globe valves.
Select product type:
Select size (inch · dn):
Select operation type:
Select body material:
Select end connection:
10
Minimum order quantity: 10 piecesFrom: $100 - $500
Specifications
Specifications
- product type
- Angle Seat Valve, Angle Globe Valve
- size (inch · dn)
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1.5" (DN40), 2" (DN50), 2.5" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
- operation type
- Handwheel Operated, Pneumatic Actuated, Electric Actuated
- body material
- Carbon Steel (WCB), Stainless Steel (SS316), Cast Iron (CI)
- end connection
- Threaded, Flanged, Butt Weld
- application / service
- Steam, Water, Oil, Gas, Chemical
- coating / protection
- Painted, Epoxy Coated
- design standard
- ASME B16.34, API 623
- disc / closure material
- SS Disc/Plug
- pressure rating (asme class)
- Class 150, Class 300, Class 600
- pressure rating (pn)
- PN16, PN25, PN40
- seat material
- PTFE, Metal (Stellite)
- testing standard
- API 598, ISO 5208, EN 12266-1
- country of origin
- Made in India
