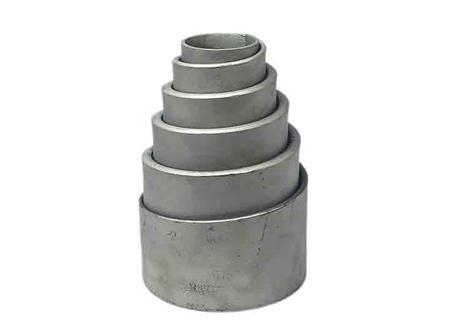

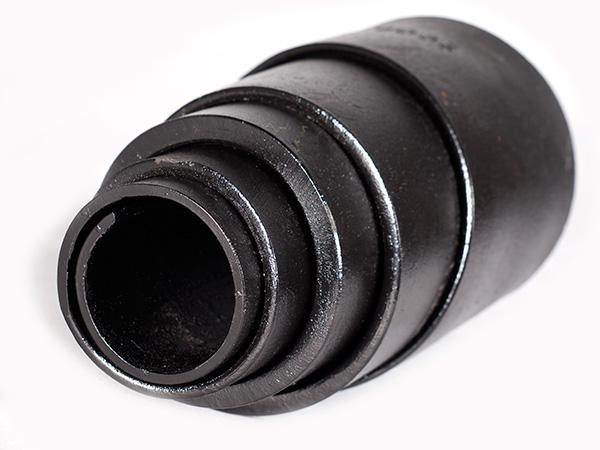

Volute Spring
Volute Spring
Spring for clutch engagement force.
20
Minimum order quantity: 20 piecesFrom: $2 - $20
Specifications
Specifications
application / industryAutomotive
direction of winding—
end typeClosed
free length (mm)30, 40, 50, 60, 80
heat treatmentHardened
inner diameter id (mm)—
load at specified length (n)—
load typeCompression
materialAlloy Steel
mounting styleSeated
number of active coils—
operating temperature (°c)-40 to 120
outer diameter od (mm)20, 25, 30, 35, 40
solid length (mm)—
spring functionLoad Control
spring rate (n/mm)—
spring shapeCylindrical
standard / specificationOEM
surface finish / coatingZinc Plated
wire diameter (mm)1.5, 2, 2.5, 3, 3.5, 4
