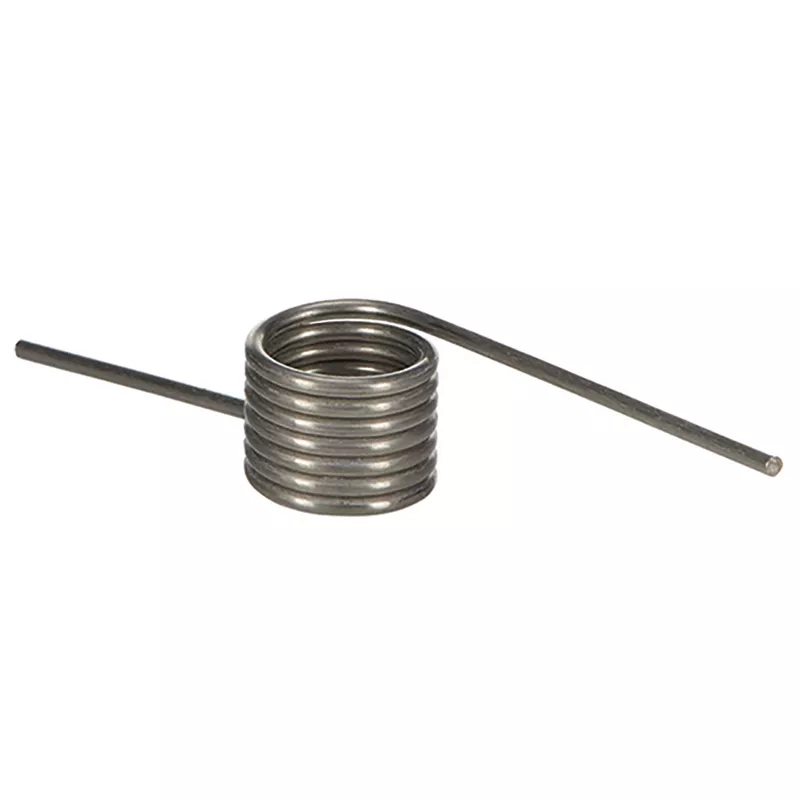

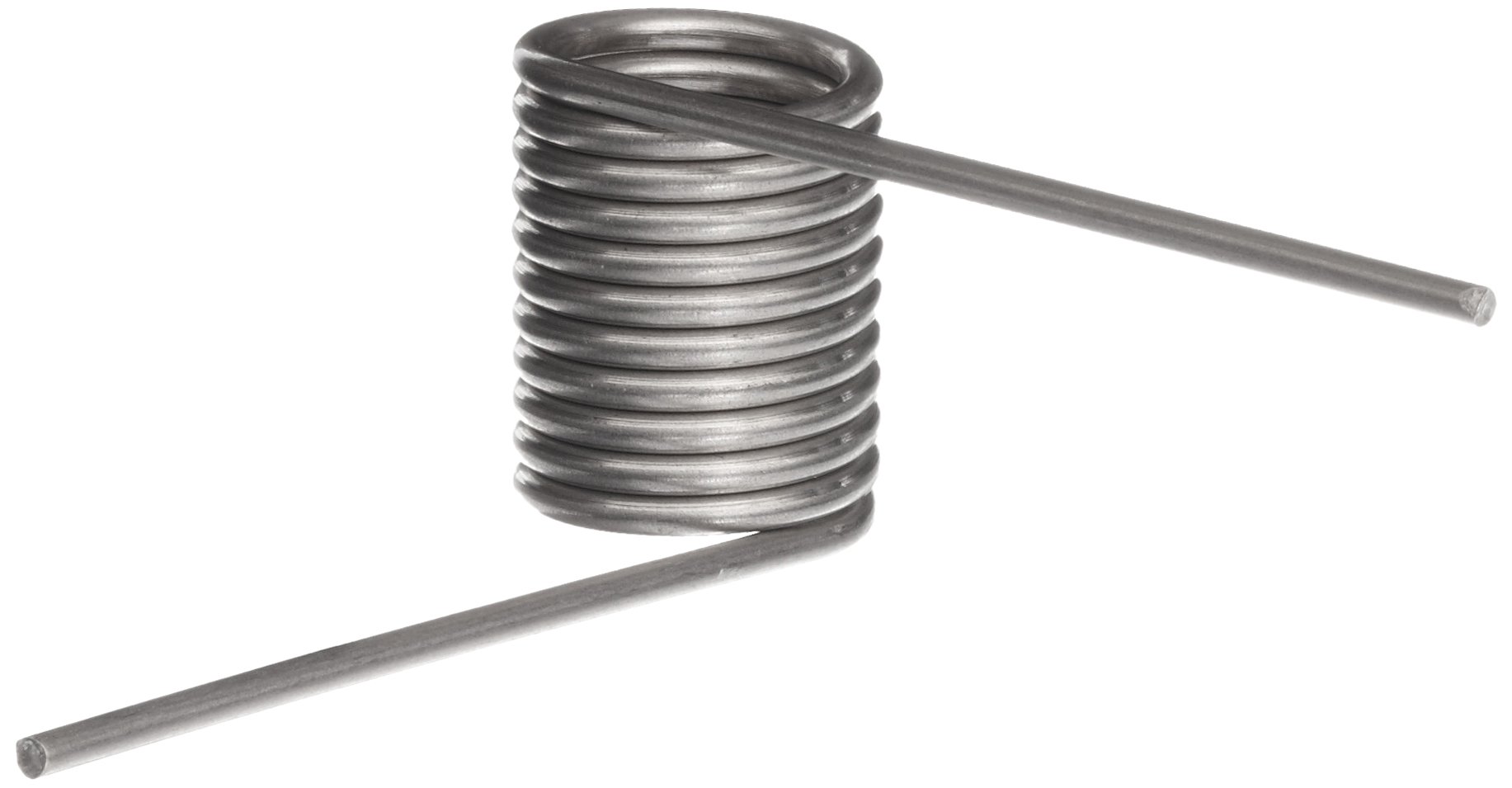

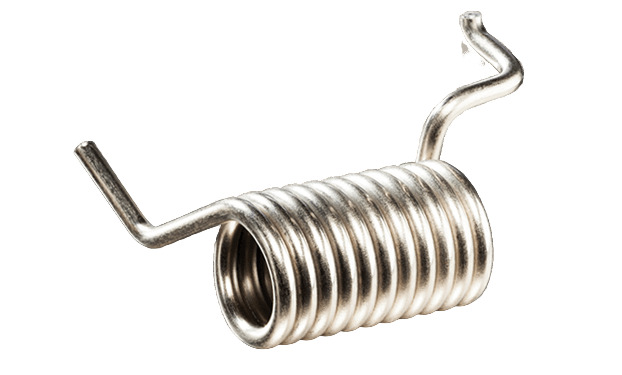

Torsion Spring
Torsion Spring
Spring storing torque via twisting.
50
Minimum order quantity: 50 piecesFrom: $0.2 - $6
Specifications
Specifications
application / industryHinges, Mechanisms
direction of windingRight Hand, Left Hand
end typeSingle Leg, Double Leg
free length (mm)—
heat treatmentStress Relieved
inner diameter id (mm)6, 8, 10, 12, 16, 20, 25, 30
load at specified length (n)—
load typeTorsion
materialMusic Wire, Stainless Steel
mounting styleLeg Mounted
number of active coils6, 8, 10
operating temperature (°c)-40 to 120
outer diameter od (mm)8, 10, 12, 16, 20, 25, 30, 40
solid length (mm)—
spring functionTorque Storage
spring rate (n/mm)—
spring shapeCylindrical
standard / specificationASTM A228
surface finish / coatingZinc Plated
wire diameter (mm)0.8, 1, 1.2, 1.6, 2, 2.5, 3, 4
