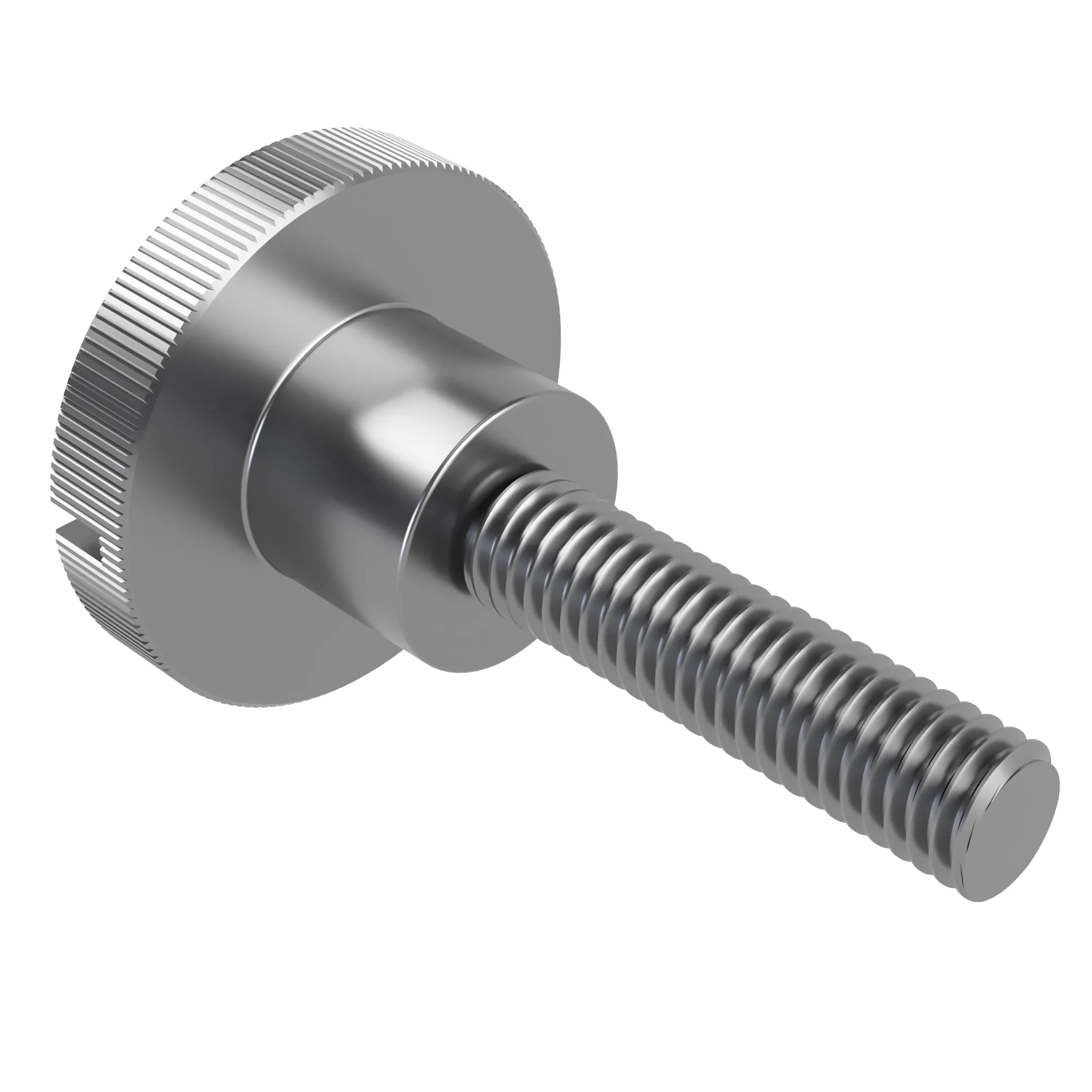

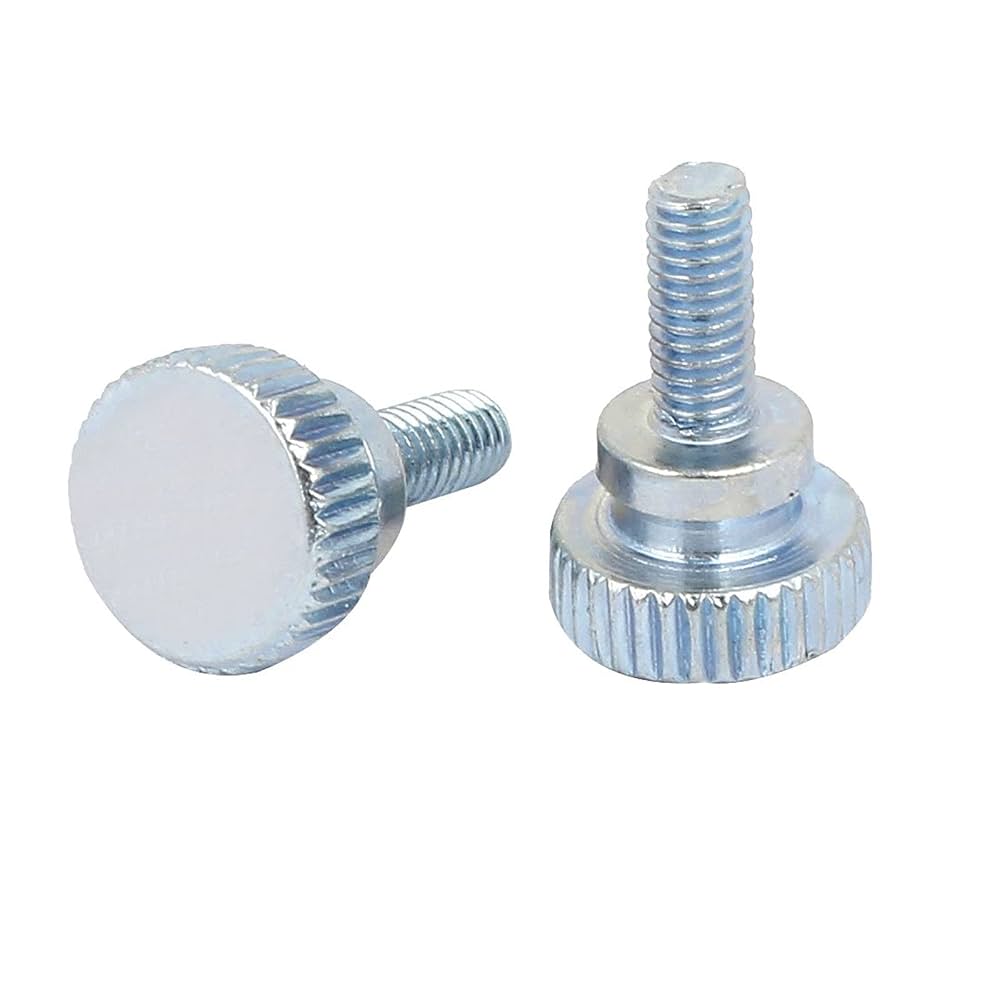

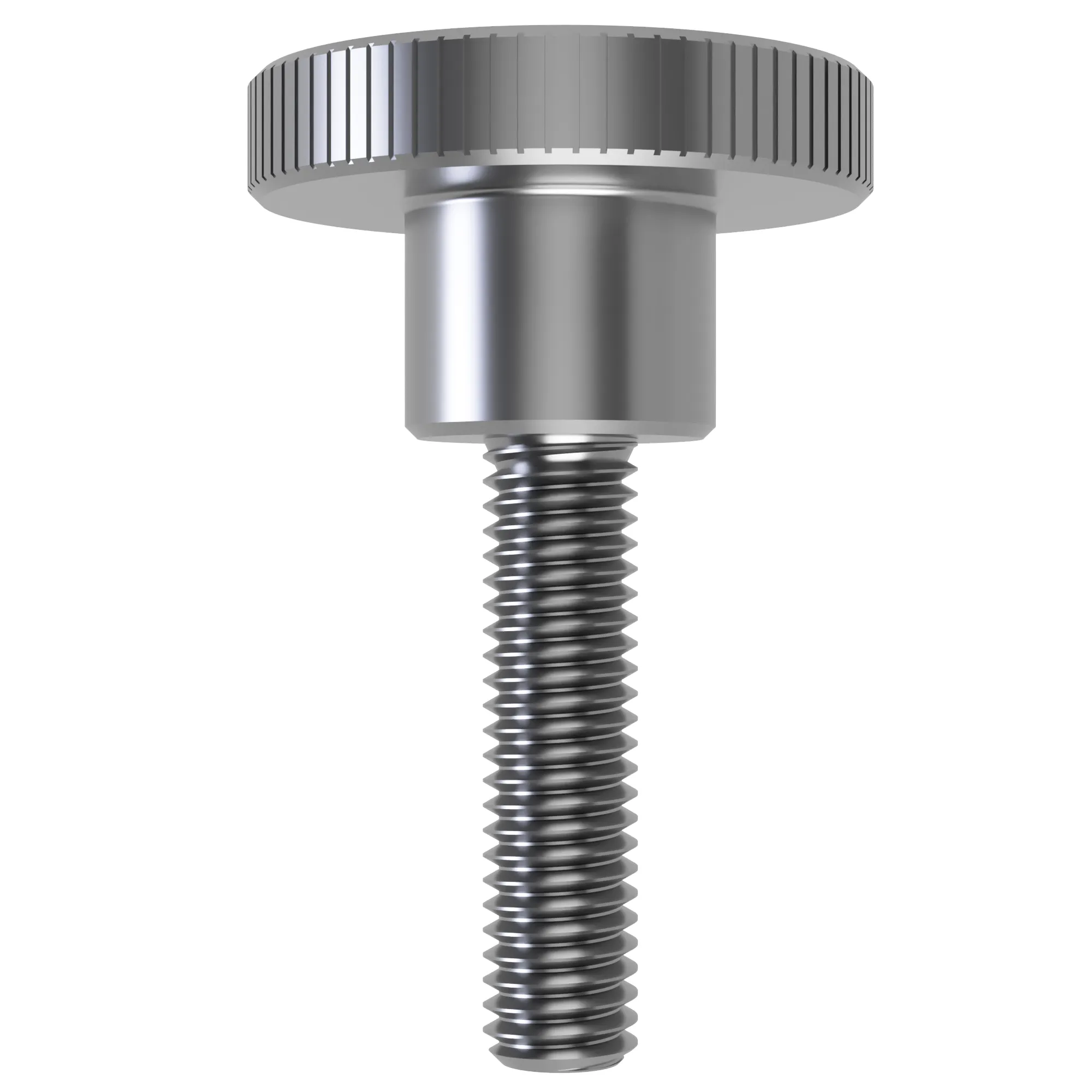

Thumb Screw (Knurled Head)
Thumb Screw (Knurled Head)
Thumb Screw (Knurled Head) used for tool-free adjustments on panels, fixtures, and enclosures.
Select coating / finish:
Select material:
Select thread size list:
Select head type:
Select drive type:
1
From: $0.03 - $0.25
Specifications
Specifications
application / usagetool-free adjustments on panels, fixtures, and enclosures
coating / finishZinc Plated, Nickel Plated
materialMild Steel, Stainless Steel, Brass
point typeBlunt Point
shank typeFully Threaded
thread size listM3, M4, M5, M6, M8, M10
head typeKnurled Thumb Head
drive typeHand Operated
thread typeMachine Thread
diameter range (mm)M3 – M10
length range (mm)8 – 40
strength grade4.6, Brass Grade, A2-70
standards (is)IS 1367
standards (iso)ISO 1207 (thread ref)
standards (din)DIN 464
standards (astm)ASTM F835 (ref)
country of originMade in India
