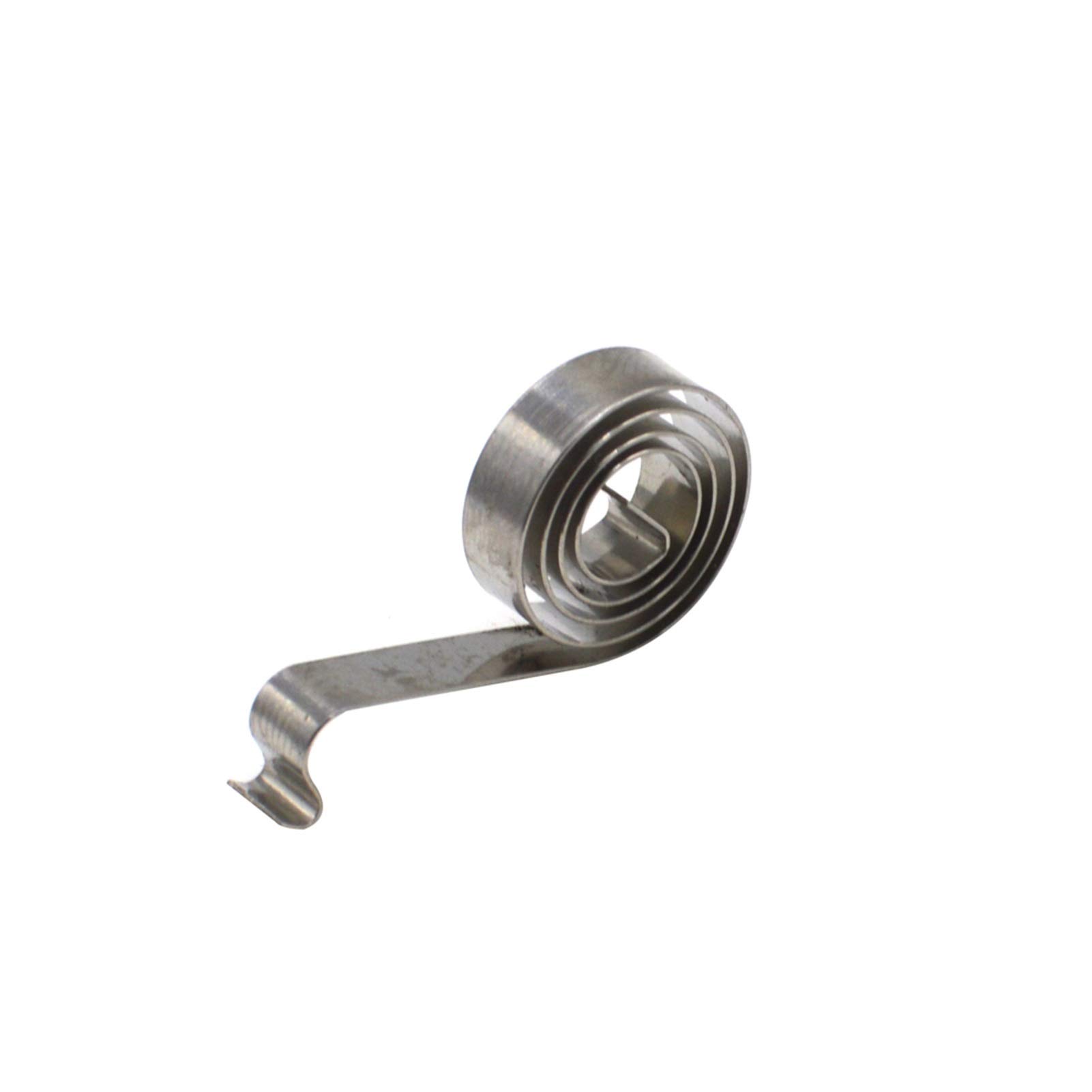

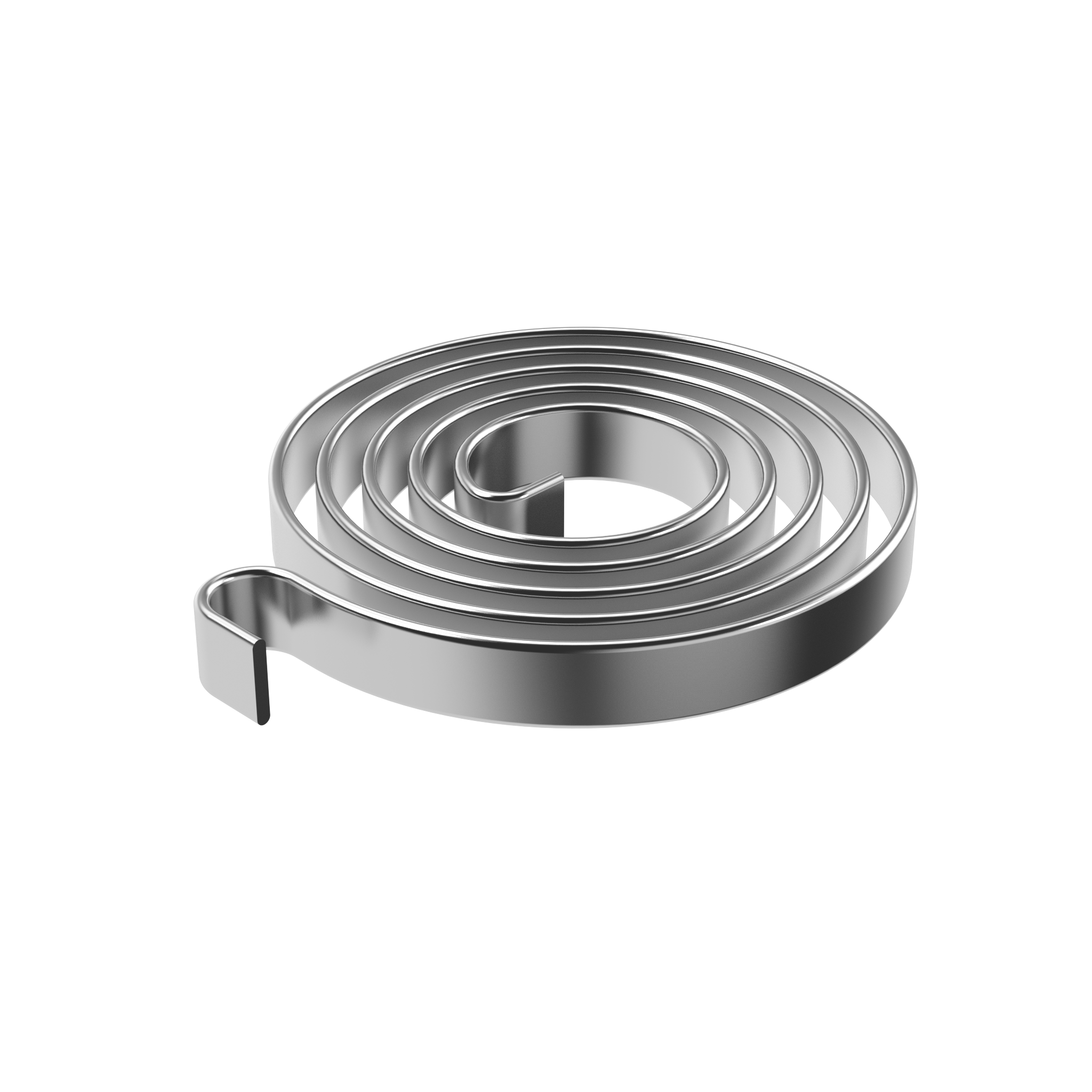

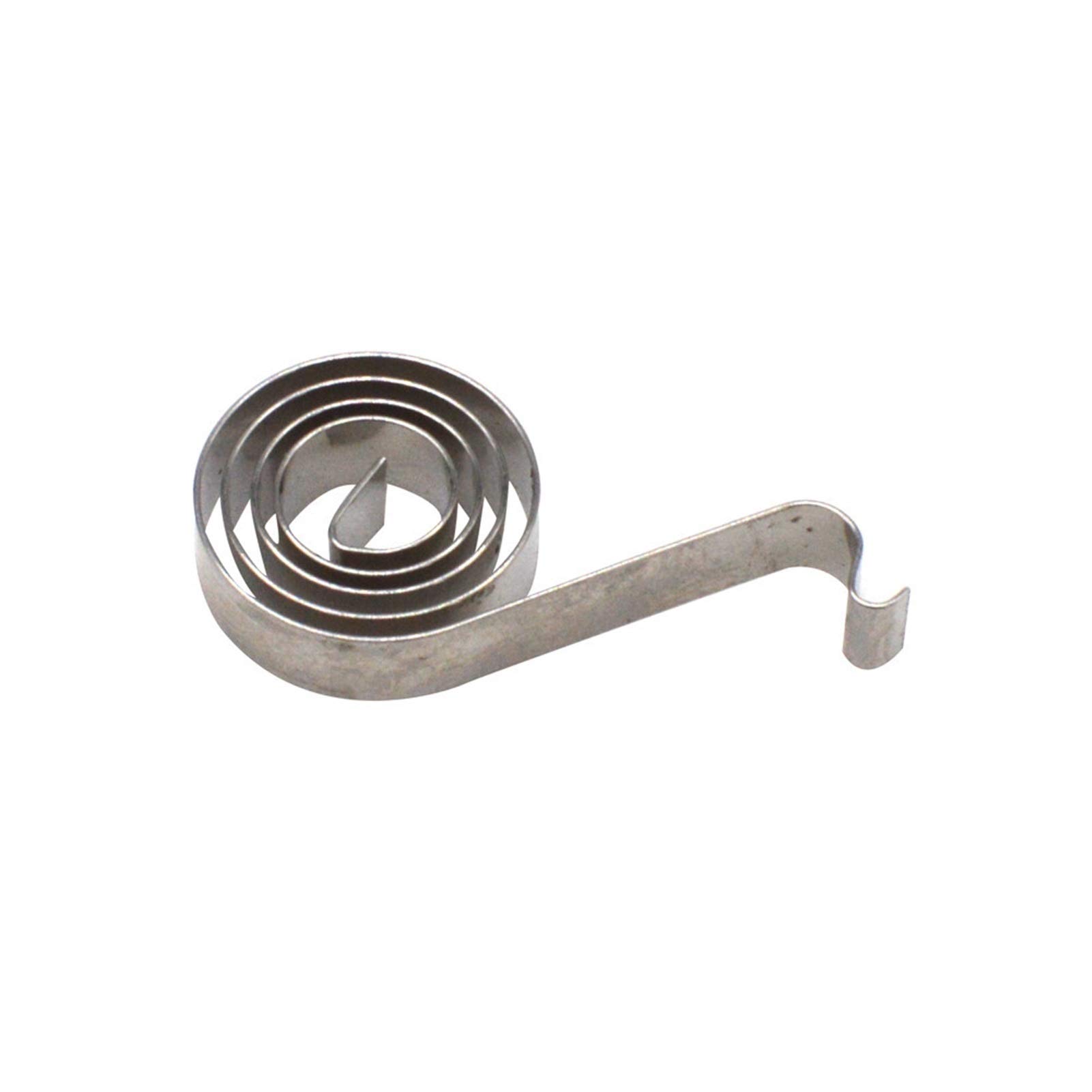

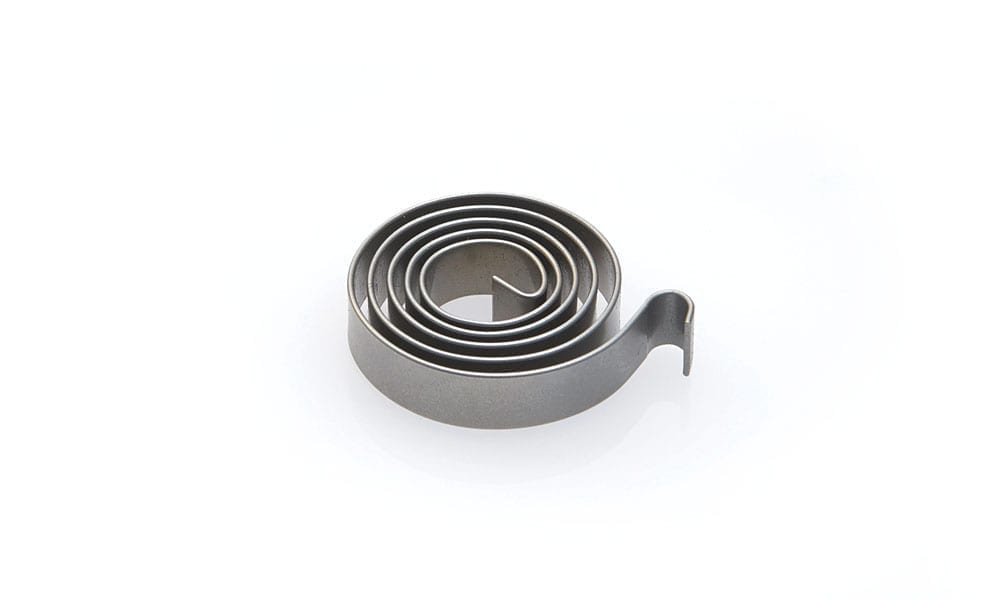

Spiral (Clock) Spring
Spiral (Clock) Spring
Spiral wound spring storing rotational energy.
20
Minimum order quantity: 20 piecesFrom: $0.5 - $15
Specifications
Specifications
application / industryClocks, Reels
direction of winding—
end type—
free length (mm)—
heat treatmentHardened
inner diameter id (mm)—
load at specified length (n)—
load typeTorsion
materialSpring Steel
mounting styleHub Mounted
number of active coils—
operating temperature (°c)-20 to 120
outer diameter od (mm)—
solid length (mm)—
spring functionEnergy Storage
spring rate (n/mm)—
spring shapeSpiral
standard / specificationOEM
surface finish / coatingBlack Oxide
wire diameter (mm)—
