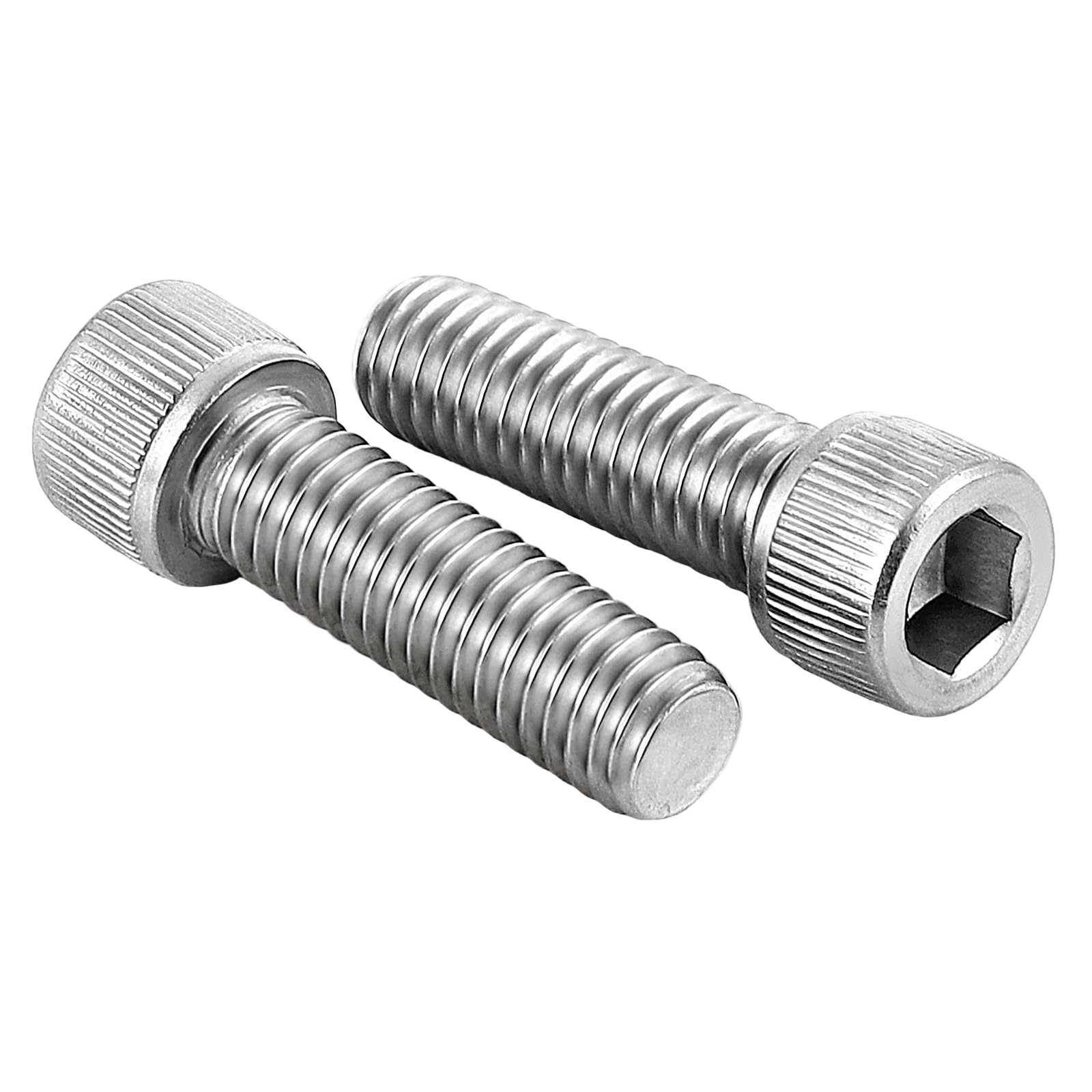

Socket Head Cap Screw
Socket Head Cap Screw
Socket Head Cap Screw used for high-strength clamping in machinery, tooling, and fixtures.
Select coating / finish:
Select material:
Select thread size list:
Select head type:
Select drive type:
1
From: $0.03 - $0.25
Specifications
Specifications
application / usagehigh-strength clamping in machinery, tooling, and fixtures
coating / finishBlack Oxide, Plain, Zinc Plated
materialAlloy Steel, Stainless Steel
point typeBlunt Point
shank typePartially Threaded, Fully Threaded
thread size listM3, M4, M5, M6, M8, M10, M12, M16, M20, M24
head typeSocket Head Cap
drive typeAllen (Hex Socket)
thread typeMachine Thread
diameter range (mm)M3 – M24
length range (mm)6 – 120
strength grade10.9, 12.9, A2-70
standards (is)IS 2269
standards (iso)ISO 4762
standards (din)DIN 912
standards (astm)ASTM F835
country of originMade in India
