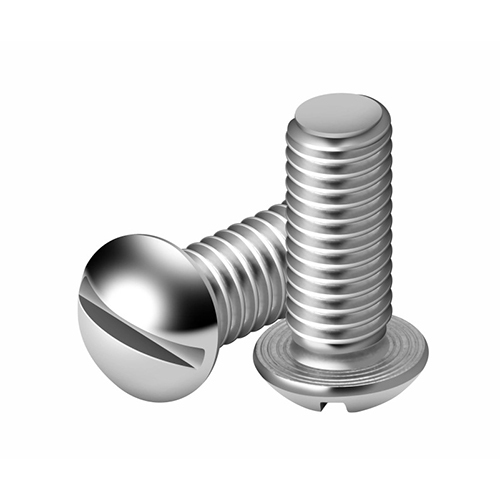

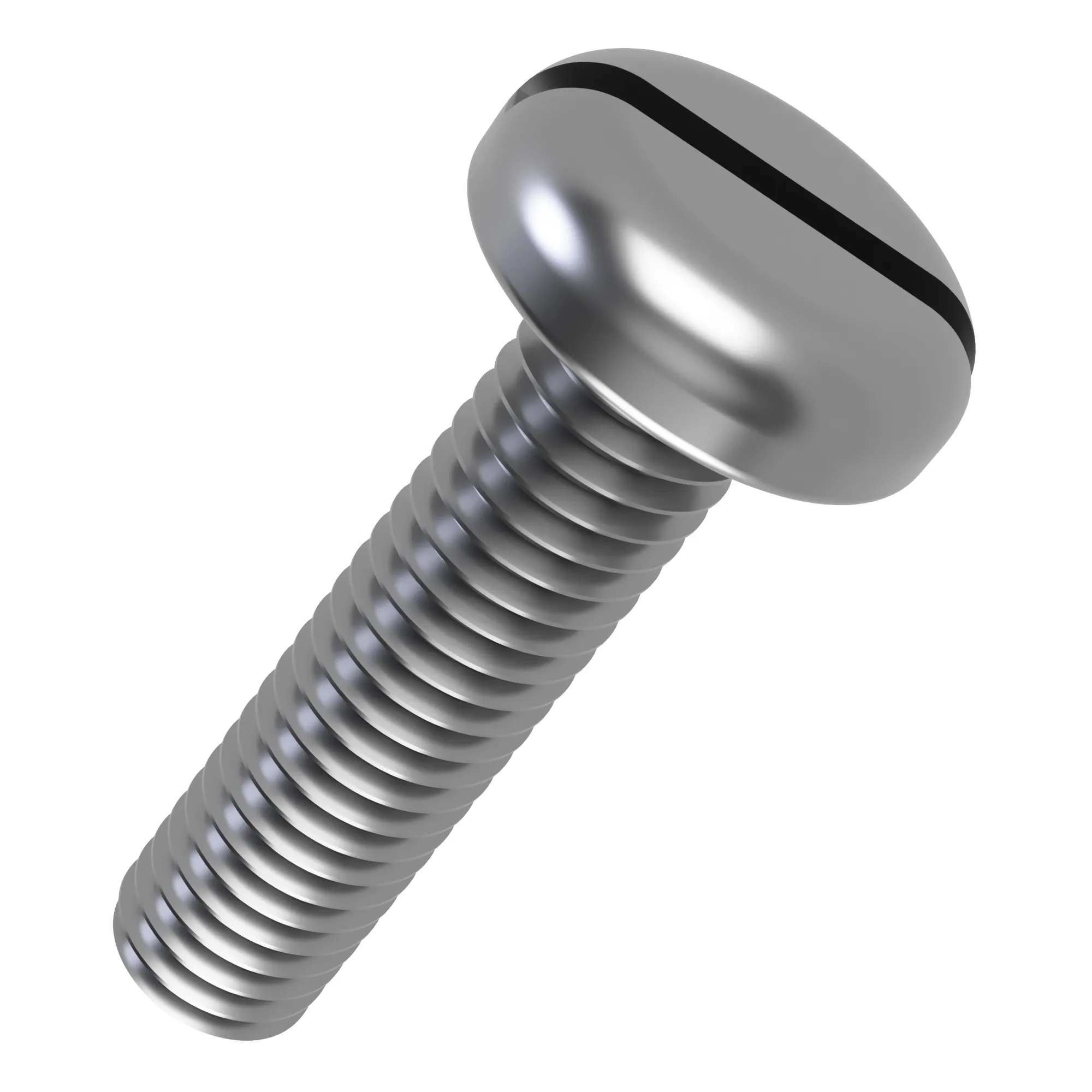

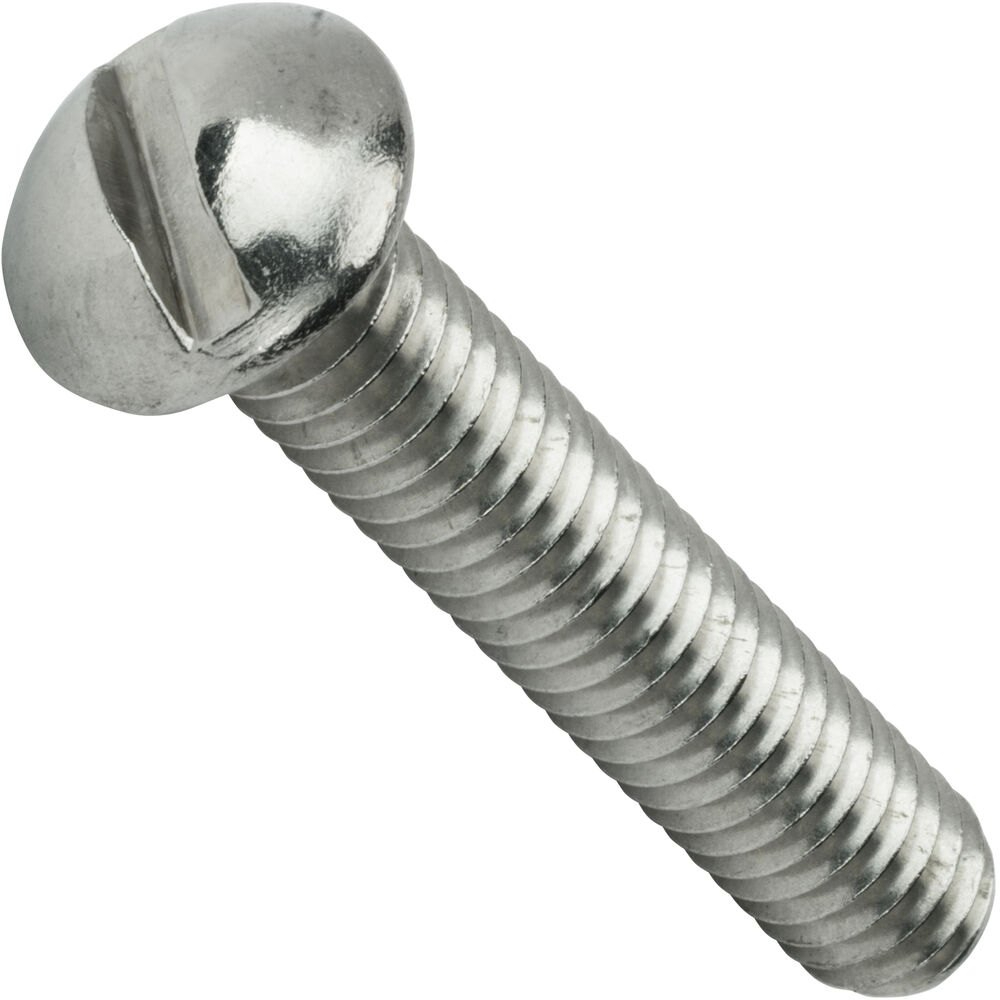

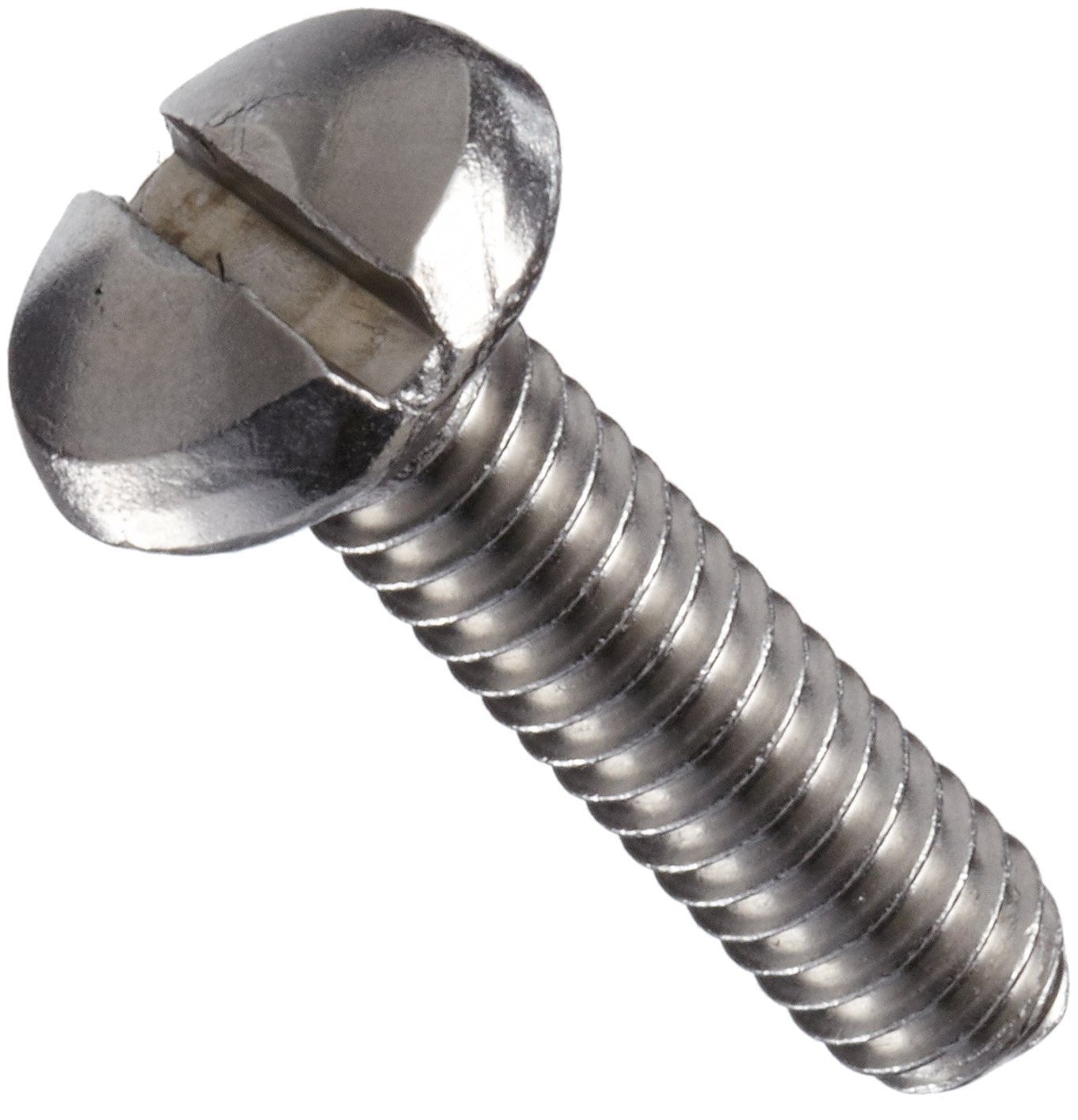

Pan Head Machine Screw (Slotted)
Pan Head Machine Screw (Slotted)
Pan Head Machine Screw (Slotted) used for light machinery, instruments, and enclosures.
Select coating / finish:
Select material:
Select thread size list:
Select head type:
Select drive type:
1
From: $0.01 - $0.07
Specifications
Specifications
- application / usage
- light machinery, instruments, and enclosures
- coating / finish
- Zinc Plated, Nickel Plated
- material
- Mild Steel, Brass, Stainless Steel
- point type
- Blunt Point
- shank type
- Fully Threaded
- thread size list
- M2, M2.5, M3, M4, M5, M6, M8, M10
- head type
- Pan Head
- drive type
- Slotted
- thread type
- Machine Thread
- diameter range (mm)
- M2 – M10
- length range (mm)
- 4 – 60
- strength grade
- 4.6, Brass Grade, A2-70
- standards (is)
- IS 1364 (Screws), IS 6761
- standards (iso)
- ISO 1580
- standards (din)
- DIN 84
- standards (astm)
- ASTM F835, ASTM F879
- country of origin
- Made in India
