Name: Linear LM Bush
Brand: Himalay.io

Linear Lm Bush

Linear Lm Bush

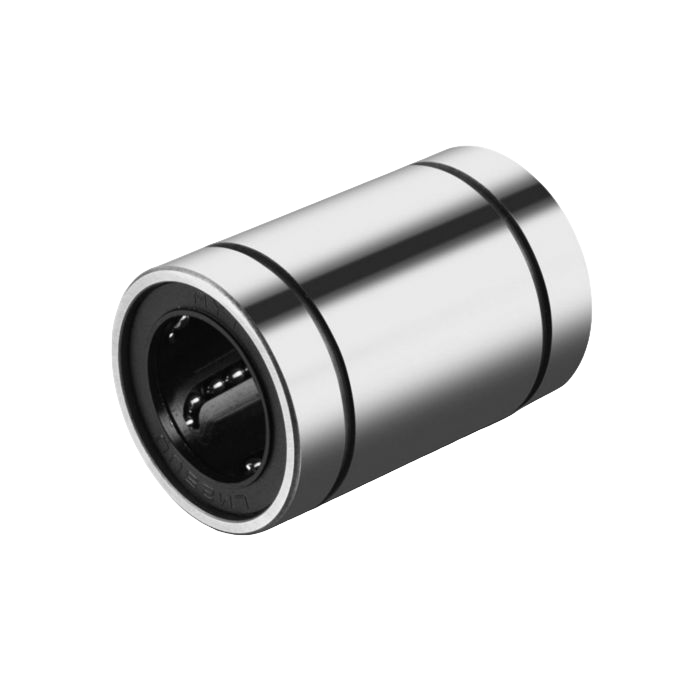

Linear LM Bush

Standard linear motion bush with ball recirculation

Select material:

Select flange diameter:

Select flange thickness:

Select split / solid:

Select hardness:

Minimum order quantity: 10 pieces

From: $0.8 - $8

Specifications

applicationCNC machines, automation systems, robotics

materialBearing Steel (GCr15)

bushing typeLM Ball Bush, Linear Sleeve

flange diameter32mm, 40mm, 50mm

flange thickness3mm, 4mm

split / solidSolid

hardnessHRC58, HRC60

load capacityRadial, Linear

tolerance classJIS, P5, P6

lubrication typeGrease, Oil

temperature range−20°C to 120°C

standardsJIS B1561

Padamade Private LimitedHiranandani Estate, Patlipada, Off G.B Road, Thane West, Maharashtra, India, 400607
