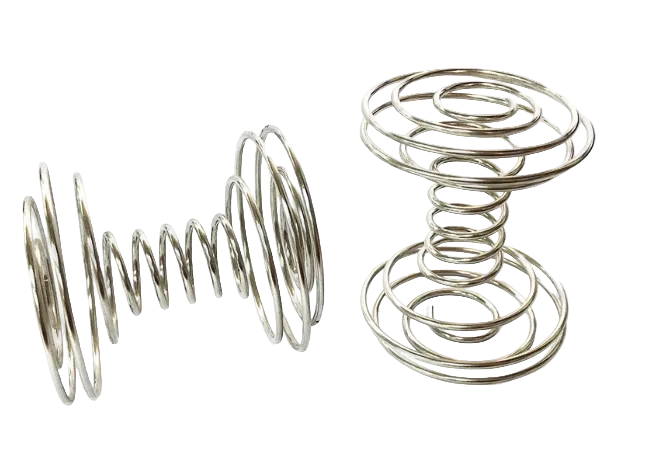

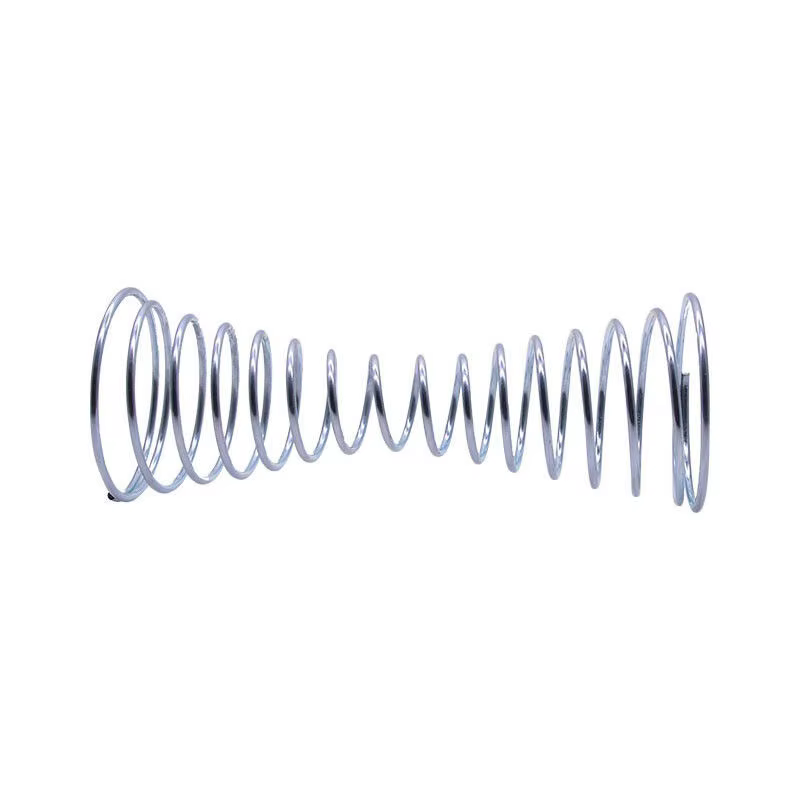

Hourglass (Concave) Spring
Hourglass (Concave) Spring
Concave spring for reduced solid height.
50
Minimum order quantity: 50 piecesFrom: $0.3 - $8
Specifications
Specifications
application / industryIndustrial
direction of windingRight Hand
end typeClosed
free length (mm)202530405075100000
heat treatmentHardened
inner diameter id (mm)—
load at specified length (n)—
load typeCompression
materialCarbon Steel
mounting styleSeated
number of active coils—
operating temperature (°c)-40 to 120
outer diameter od (mm)12, 16, 20, 25, 30, 40, 50, 60
solid length (mm)—
spring functionEnergy Storage
spring rate (n/mm)—
spring shapeHourglass
standard / specificationOEM
surface finish / coatingPlain
wire diameter (mm)1, 1.2, 1.6, 2, 2.5, 3, 4, 5, 6
