Horizontal SMSR
Horizontal SMSR

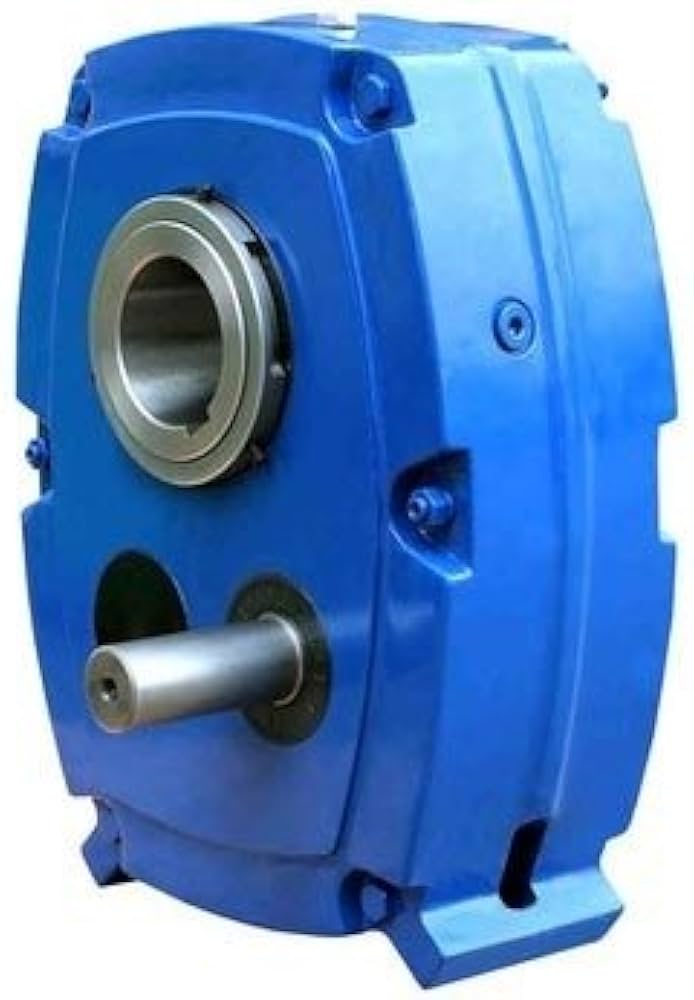

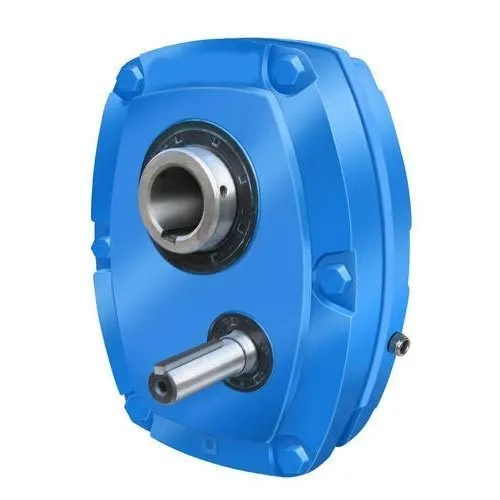

Shaft-mounted reducer for horizontal conveyors with torque arm support.
Select application:
Select mounting type:
Select orientation:
Select input type:
Select output type:
Select housing material:
Select gear material:
Select industries:
1
From: $180 - $1800
Specifications
Specifications
- application
- Conveyors, Crushers, Feeders
- mounting type
- Shaft Mounted, Torque Arm
- orientation
- Horizontal
- input type
- IEC Motor, V-Belt Input
- output type
- Hollow Output Shaft
- gear type
- Helical
- gear ratio range
- 5:1–25:1
- torque range (nm)
- 500–10000
- power range (kw)
- 2.2–45
- service factor
- 1.5–2.2
- housing material
- Cast Iron
- gear material
- Case Hardened Alloy Steel
- lubrication type
- Oil Bath, Splash
- protection class
- IP55 (with motor)
- industries
- Mining, Cement, Quarrying
- efficiency (%)
- 92–95
- features
- Quick installation, no base frame
- country of origin
- India
