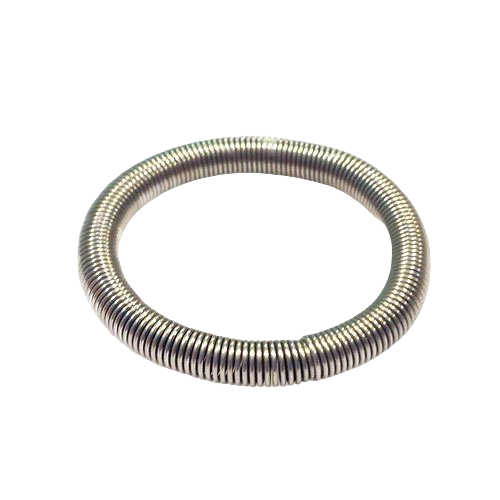

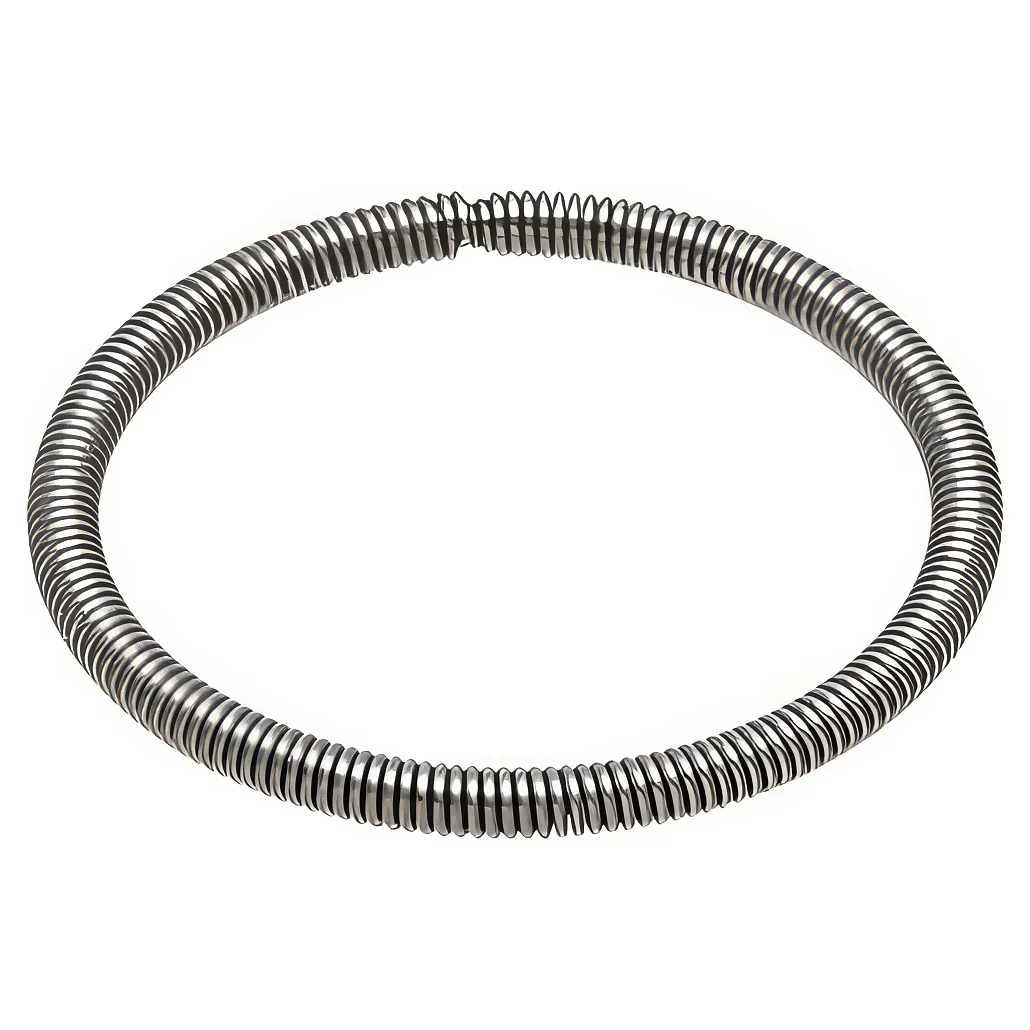

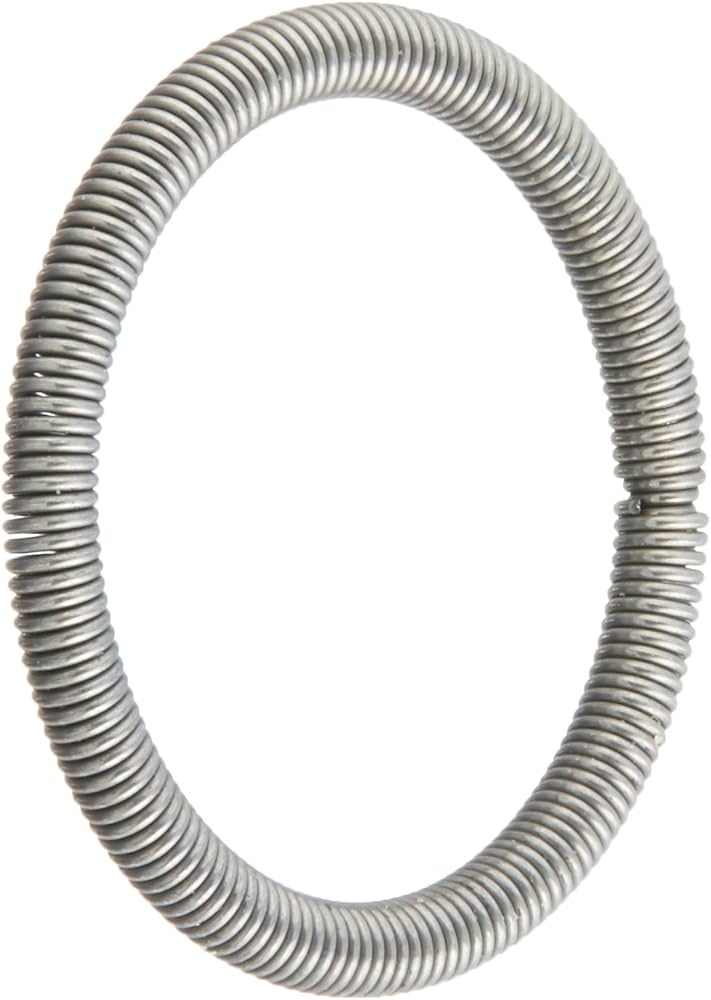

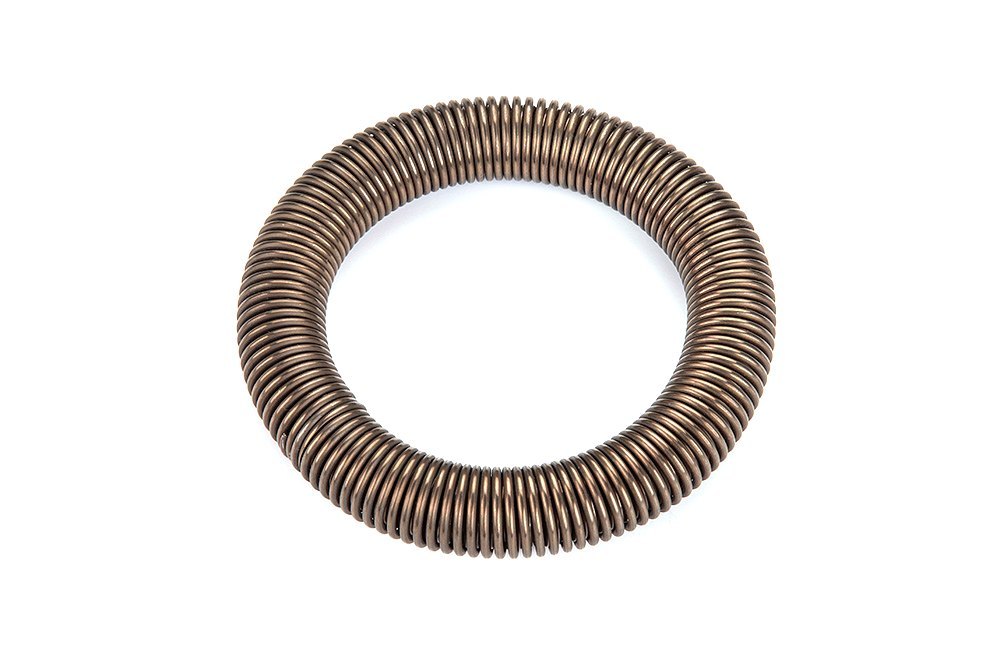

Garter Spring
Garter Spring
Rectangular wire spring for tooling.
10
Minimum order quantity: 10 piecesFrom: $5 - $40
Specifications
Specifications
application / industryDies & Moulds
direction of winding—
end type—
free length (mm)25, 38, 50, 63, 76
heat treatmentHardened
inner diameter id (mm)—
load at specified length (n)High
load typeCompression
materialChrome Silicon
mounting styleSeated
number of active coils—
operating temperature (°c)-40 to 200
outer diameter od (mm)20, 25, 32, 40, 50
solid length (mm)—
spring functionLoad Bearing
spring rate (n/mm)High
spring shapeRectangular
standard / specificationDIN 2096
surface finish / coatingPainted
wire diameter (mm)—
