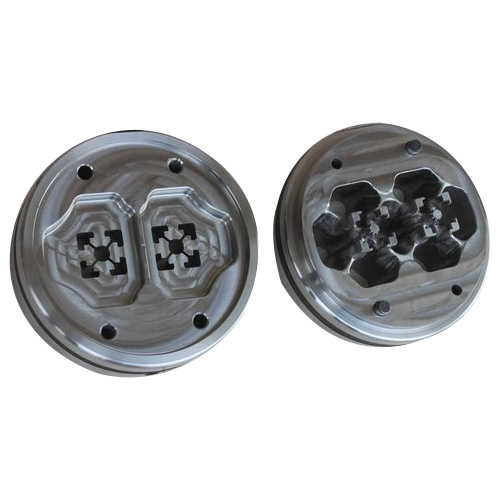

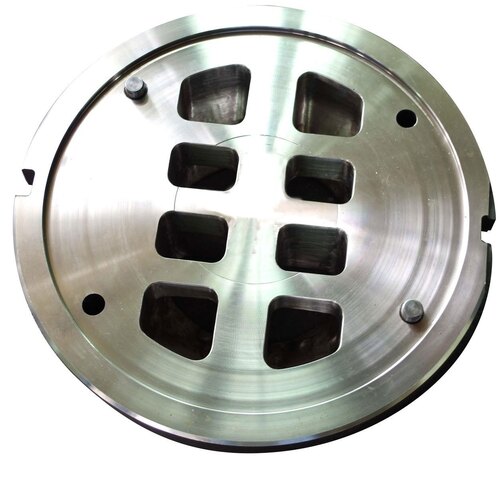

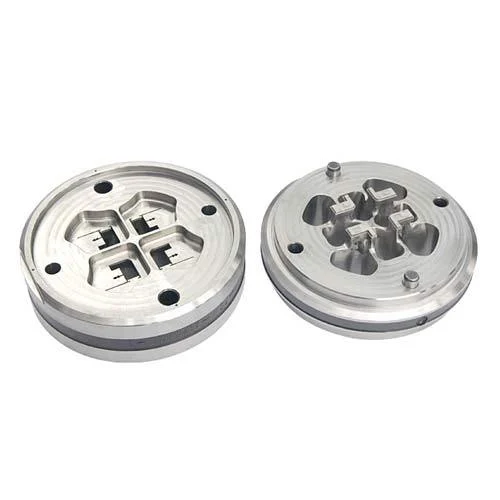

Extrusion Die Tool
Extrusion Die Tool
Die tooling used for extrusion of metal or plastic profiles.
Select maximum part size (mm):
Select number of cavities:
Select tolerance capability:
Select tool hardness (hrc):
Select tool life (shots / cycles):
Select tool material:
Select workpiece material compatibility:
1
From: $1500 - $12000
Specifications
Specifications
heat treatmentNitrided
machine compatibilityExtrusion Press
manufacturing process compatibilityExtrusion Process
maximum part size (mm)100200300
number of cavities1
surface finish capabilityMachined Finish
tolerance capability±0.1
tool hardness (hrc)45, 50
tool life (shots / cycles)50000100000
tool materialH13 Steel
tooling typeExtrusion Die
workpiece material compatibilityAluminium, PVC
