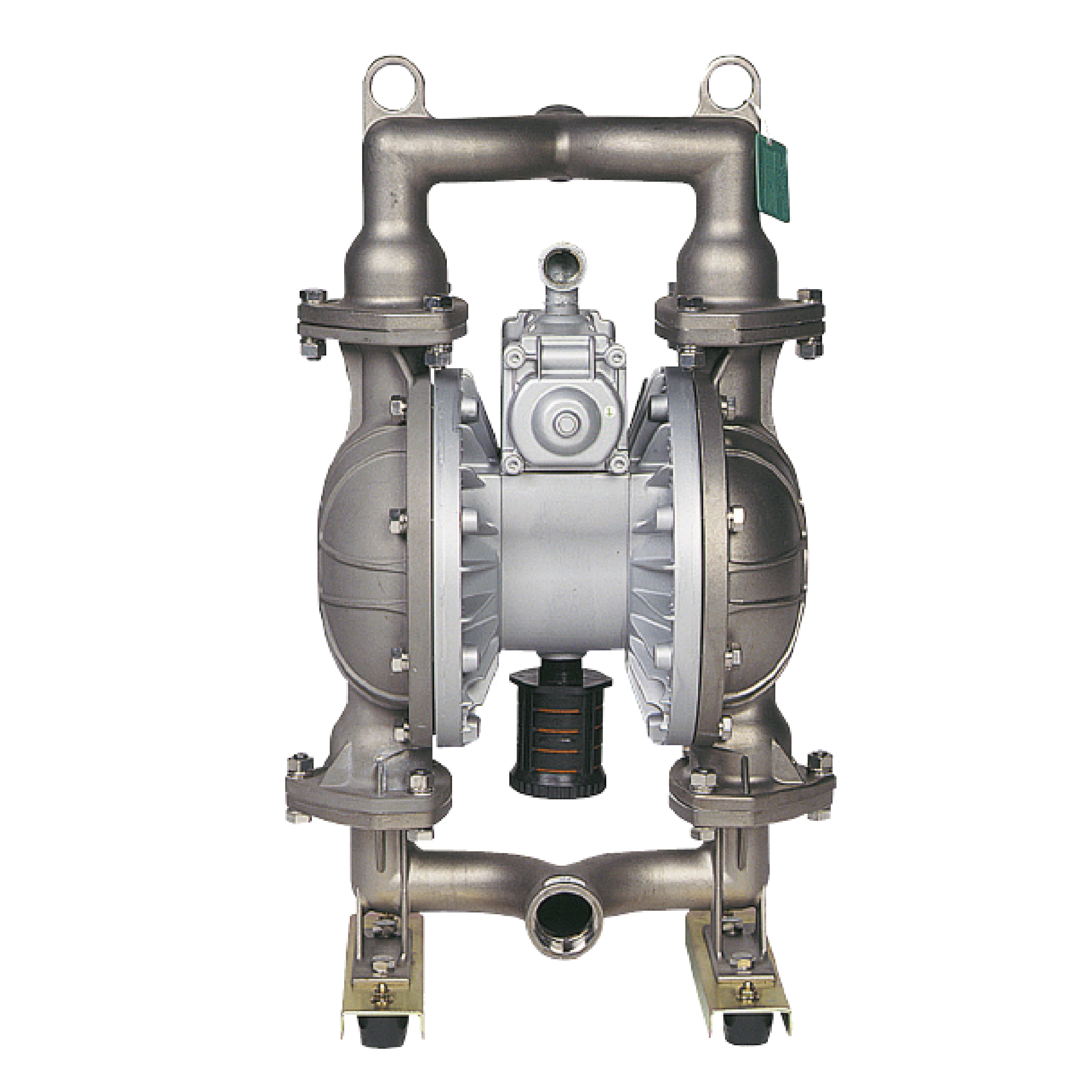

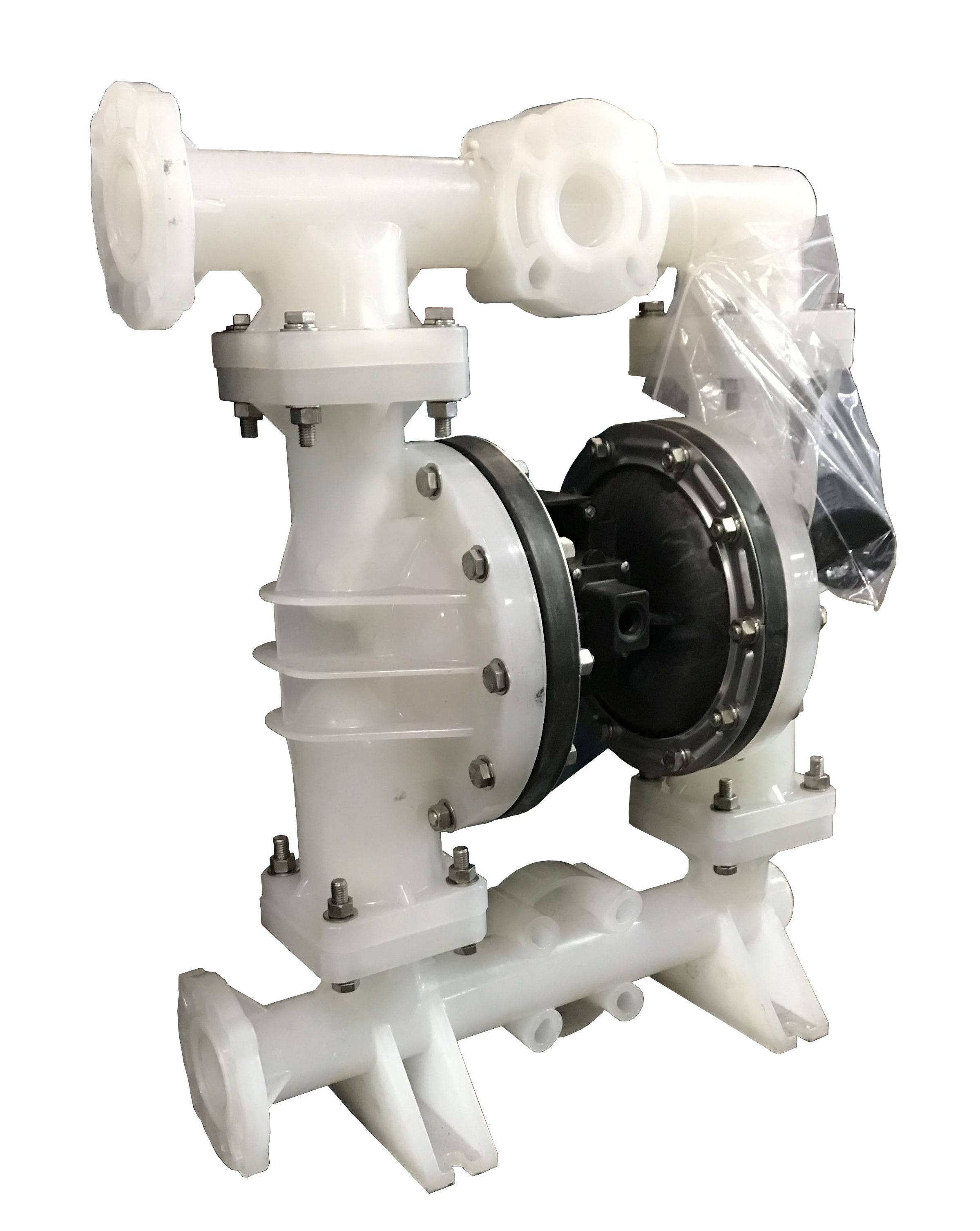

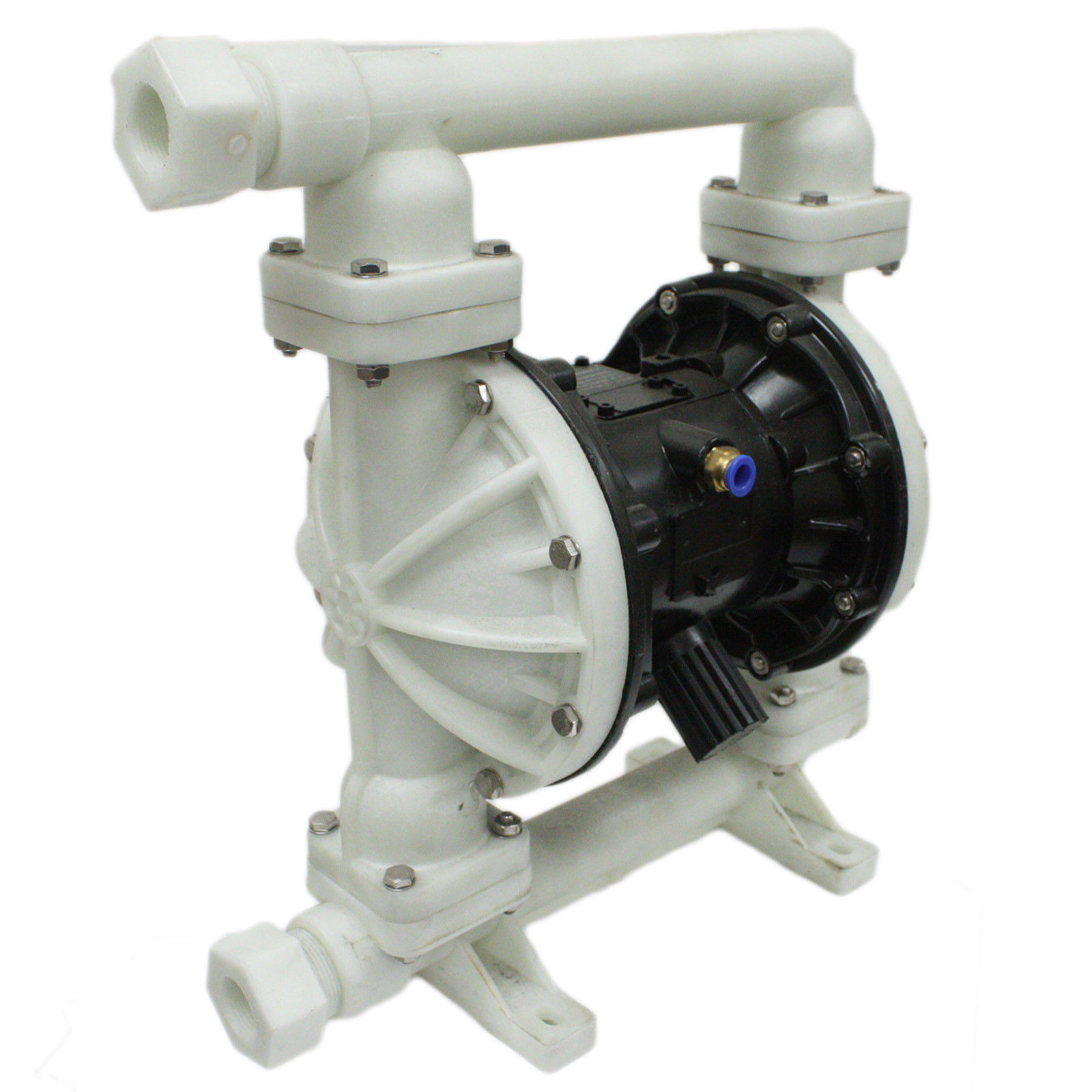

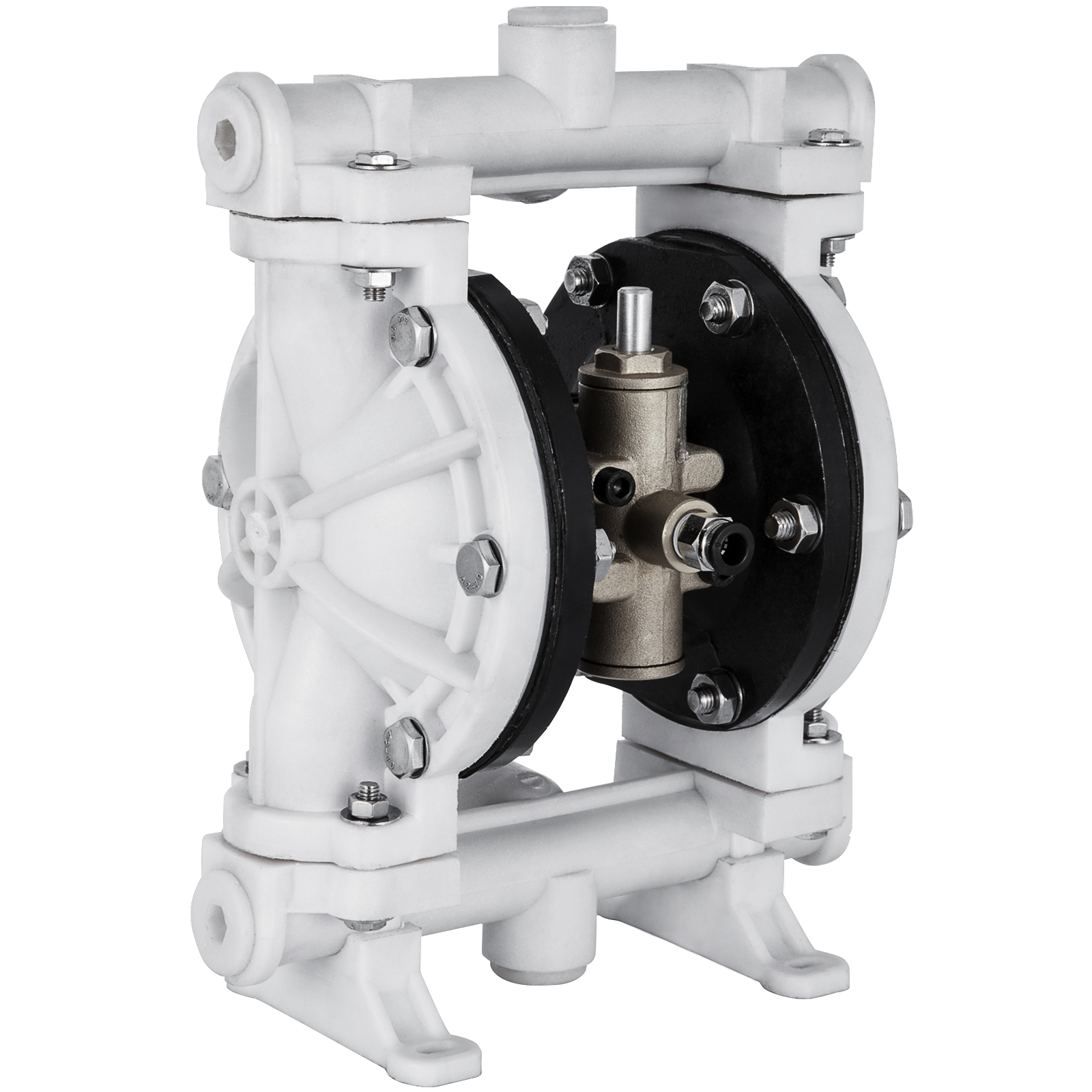

Diaphragm Pump
Diaphragm Pump
Pump for corrosive and chemical fluids.
10
Minimum order quantity: 10 piecesFrom: $300 - $2500
Specifications
Specifications
operating principlePositive Displacement
flow / motion typeDiaphragm
capacity / flow rate1, 5, 10, 20 m3/hr
pressure rating5, 10, 15 bar
discharge size (mm)20, 25, 32
suction size (mm)20, 25, 32
seal typeDiaphragm Seal
mounting typeBase Mounted
drive typeElectric
voltage / power supply220V, 415V
bore diameter (mm)—
stroke length (mm)—
rod diameter (mm)—
actuation typeElectric
standardsAPI 675
application / industryChemical Industry
