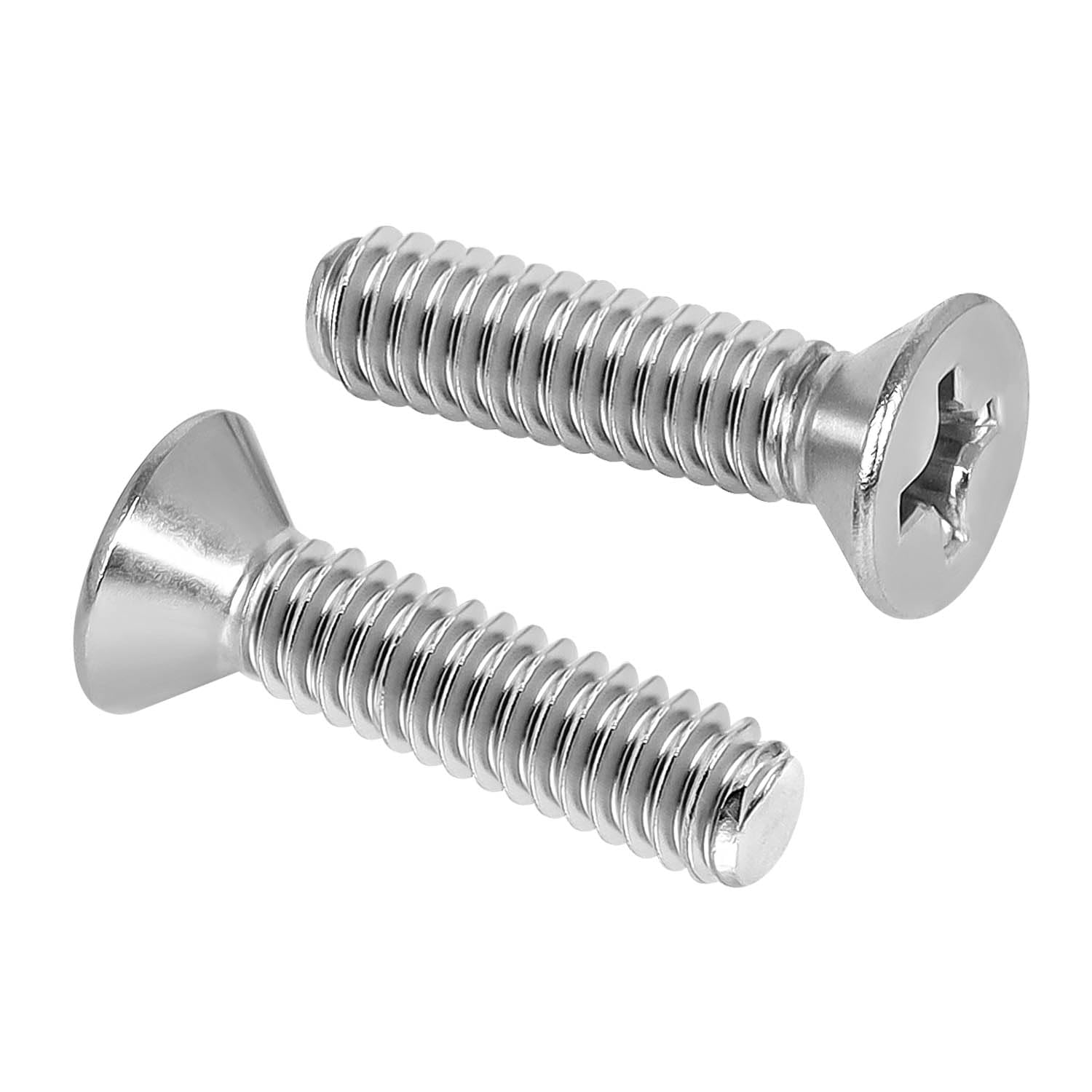

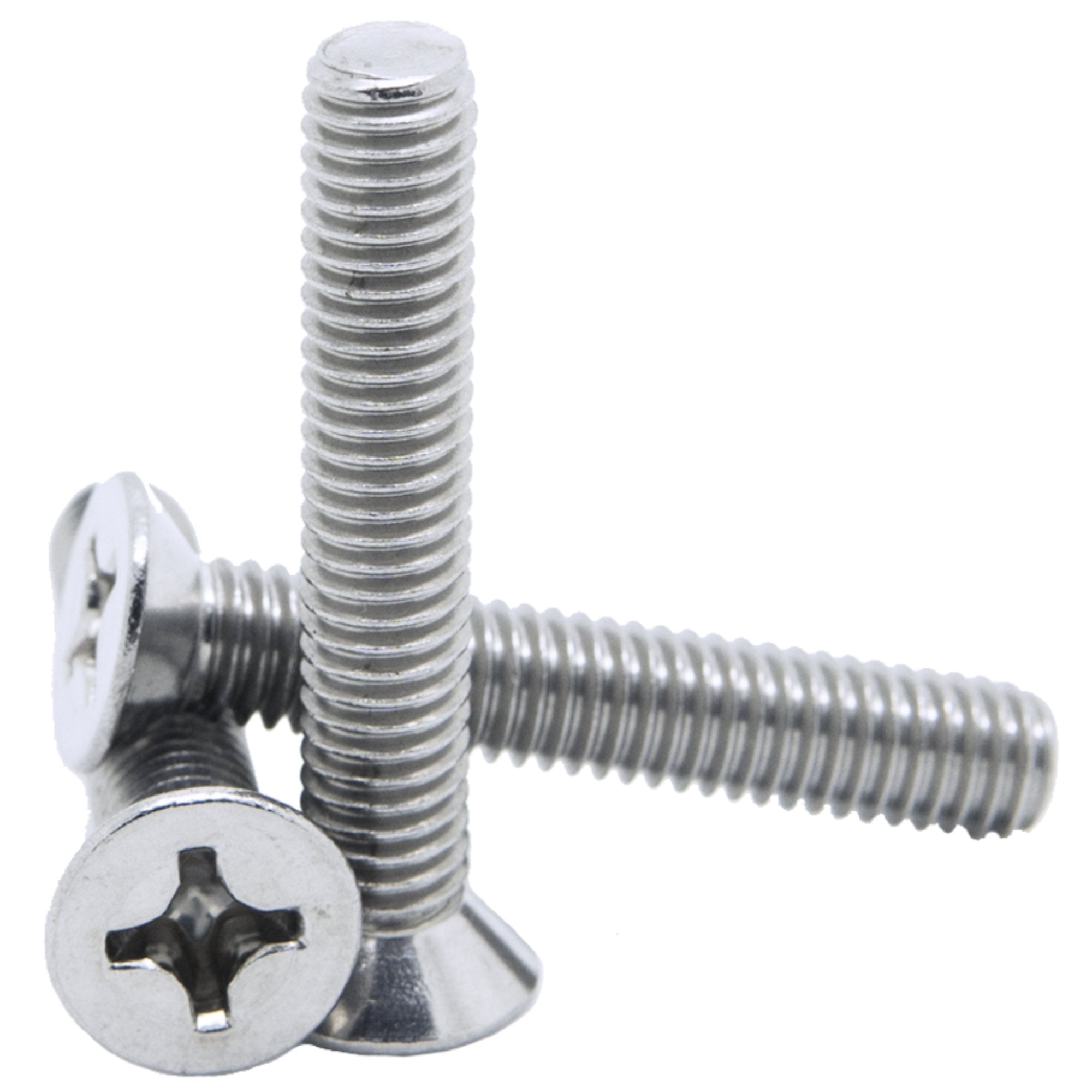

Countersunk Machine Screw (CSK, Phillips)
Countersunk Machine Screw (CSK, Phillips)
Countersunk Machine Screw (CSK, Phillips) used for flush mounting in machinery, panels, and sheet metal.
Select coating / finish:
Select material:
Select thread size list:
Select head type:
Select drive type:
1
From: $0.01 - $0.08
Specifications
Specifications
application / usageflush mounting in machinery, panels, and sheet metal
coating / finishZinc Plated, Black Oxide
materialMild Steel, Stainless Steel
point typeBlunt Point
shank typeFully Threaded
thread size listM2, M2.5, M3, M4, M5, M6, M8, M10
head typeCountersunk (Flat Head)
drive typePhillips
thread typeMachine Thread
diameter range (mm)M2 – M10
length range (mm)6 – 80
strength grade4.6, 8.8, A2-70
standards (is)IS 1364 (Screws), IS 6761
standards (iso)ISO 7046
standards (din)DIN 965
standards (astm)ASTM F835, ASTM F879
country of originMade in India
