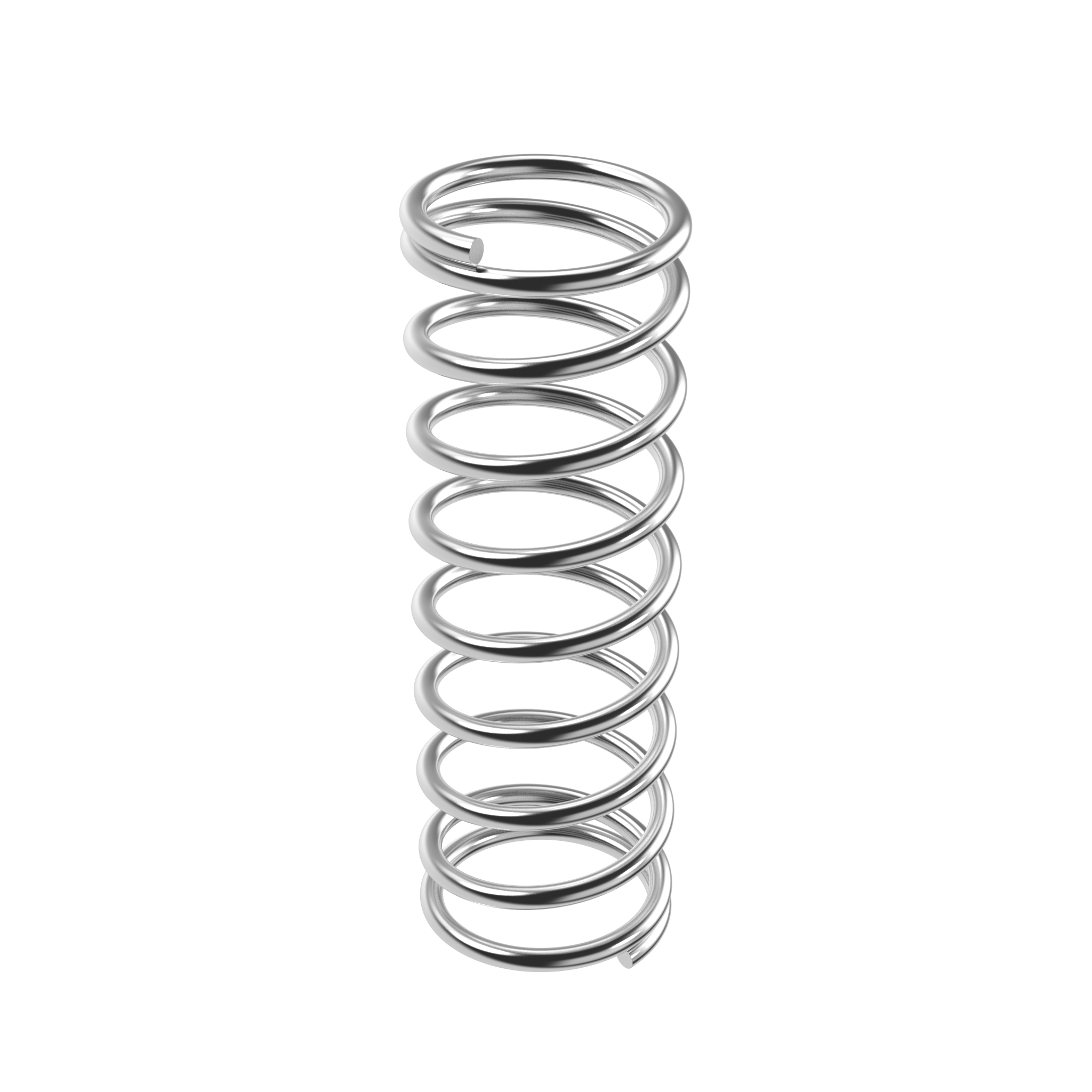

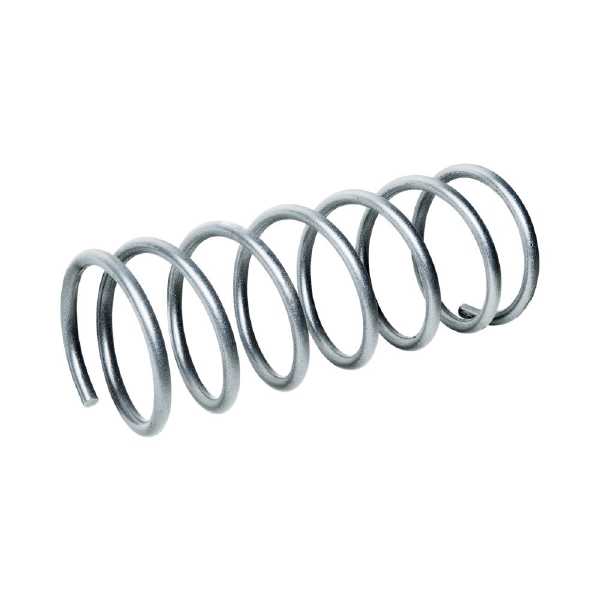

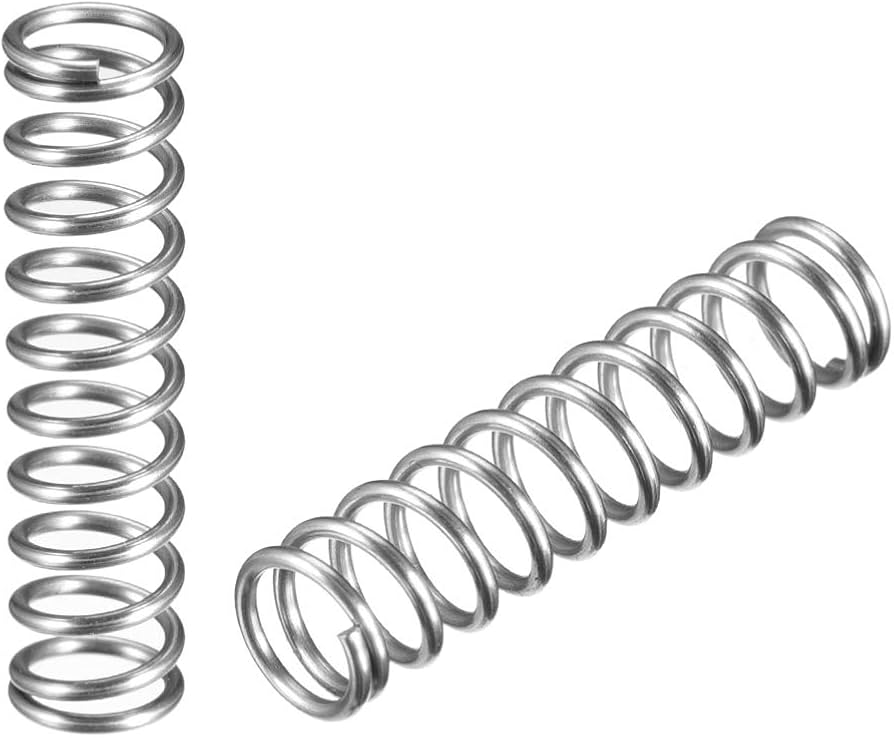

Compression Spring
Compression Spring
Helical spring resisting compressive loads.
100
Minimum order quantity: 100 piecesFrom: $0.05 - $3
Specifications
Specifications
application / industryAutomotive, Industrial
direction of windingRight Hand, Left Hand
end typeClosed, Closed & Ground
free length (mm)1.01520253040507e+21
heat treatmentOil Tempered, Stress Relieved
inner diameter id (mm)4, 6, 8, 10, 12, 16, 20, 25, 30, 40
load at specified length (n)10–500
load typeCompression
materialMusic Wire, Carbon Steel, Stainless Steel
mounting styleSeated
number of active coils6, 8, 10, 12
operating temperature (°c)-40 to 120
outer diameter od (mm)6, 8, 10, 12, 16, 20, 25, 30, 40, 50
solid length (mm)5, 8, 10, 12, 15, 20, 25
spring functionEnergy Storage
spring rate (n/mm)1–50
spring shapeCylindrical
standard / specificationASTM A228, IS 4454
surface finish / coatingPlain, Black Oxide, Zinc Plated
wire diameter (mm)0.6, 0.8, 1, 1.2, 1.6, 2, 2.5, 3, 4, 5, 6
