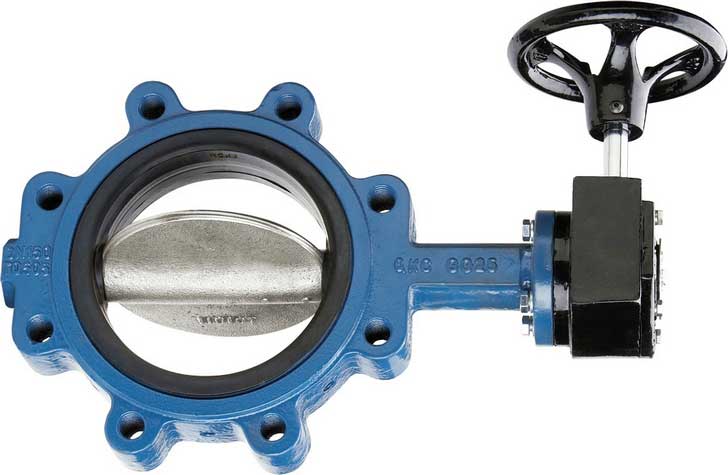

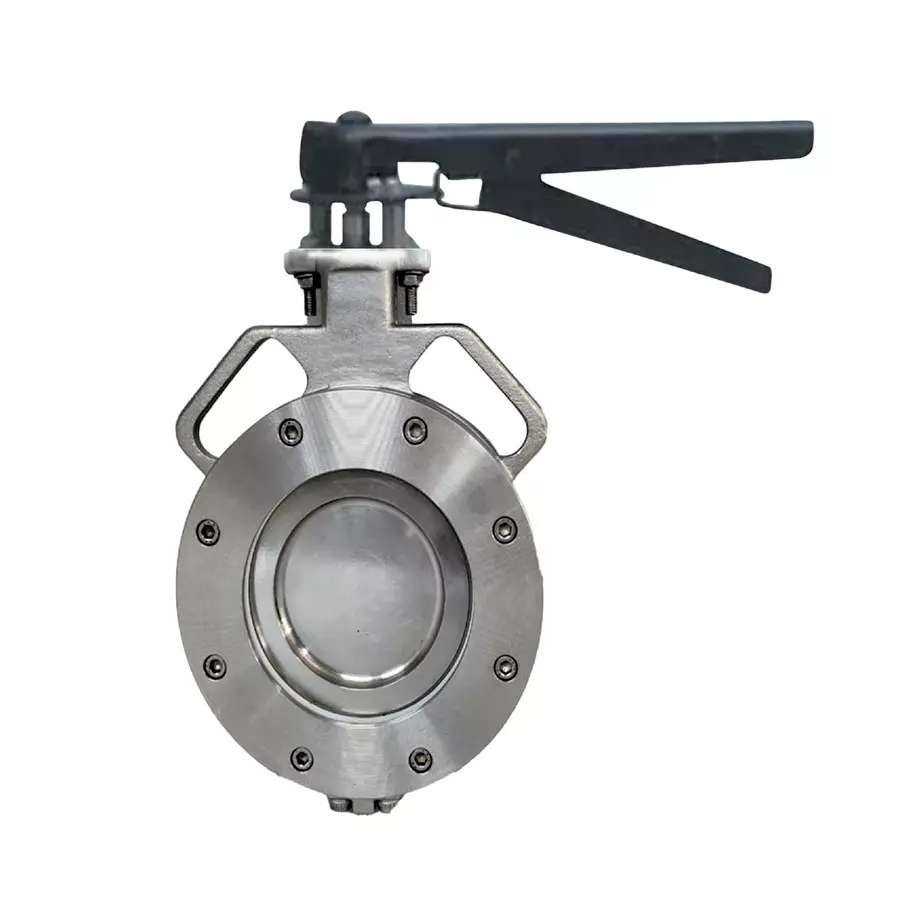

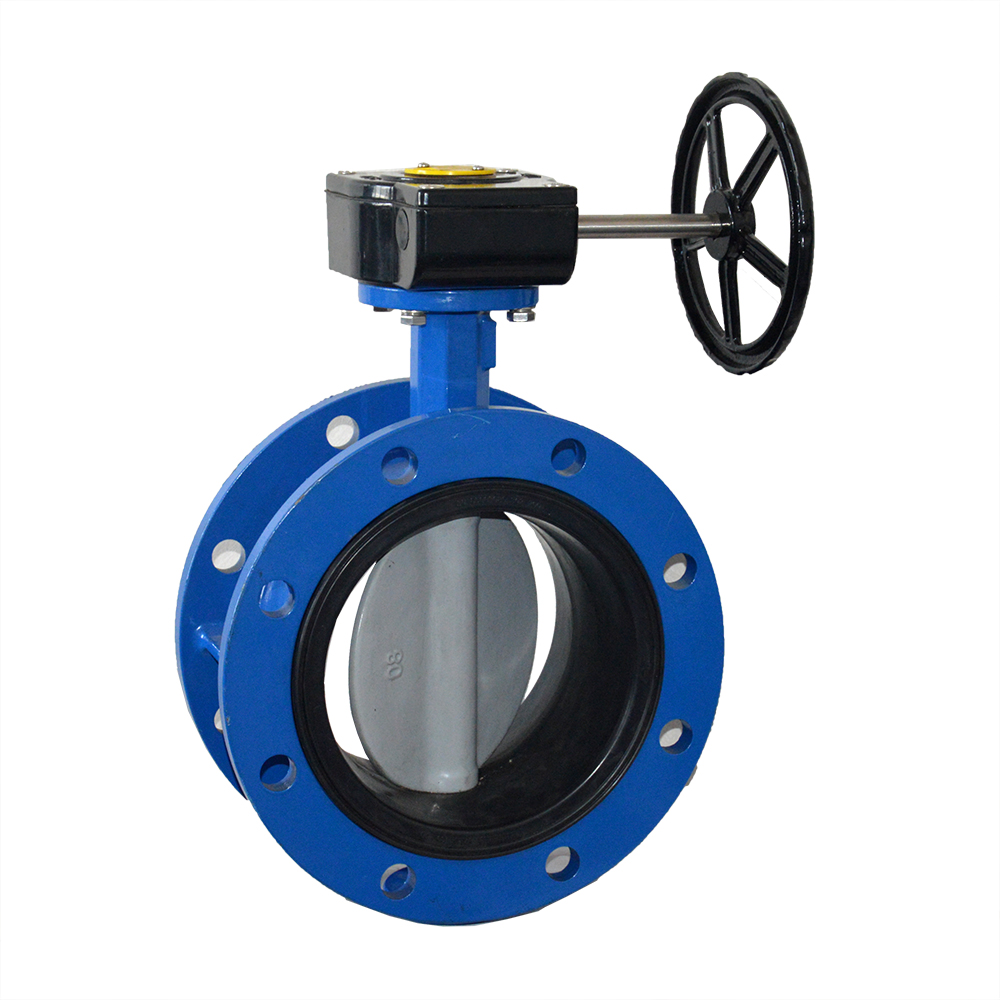

Butterfly Valves
Butterfly Valves
Quarter-turn valves with a rotating disc for isolation or throttling; compact and cost-effective for water, HVAC, and process services.
Select product type:
Select size (inch · dn):
Select operation type:
Select body material:
Select end connection:
10
Minimum order quantity: 10 piecesFrom: $100 - $500
Specifications
Specifications
- product type
- Concentric, Double Offset, Triple Offset, Wafer Type, Lug Type, Double Flanged
- size (inch · dn)
- 2" (DN50), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300), 14" (DN350), 16" (DN400), 18" (DN450), 20" (DN500), 24" (DN600), 30" (DN750), 36" (DN900)
- operation type
- Lever Operated, Gear Operated, Pneumatic Actuated, Electric Actuated, Hydraulic Actuated
- body material
- Ductile Iron (DI), Cast Iron (CI), Carbon Steel (WCB), Stainless Steel (SS304), Stainless Steel (SS316), Aluminium Bronze
- end connection
- Wafer, Lug, Double Flanged, Butt Weld
- application / service
- Water, HVAC, Seawater, Oil, Gas, Chemical
- coating / protection
- Fusion-Bonded Epoxy (FBE), Epoxy Coated, Painted, Powder Coated
- design standard
- API 609, EN 593, ASME B16.34
- disc / closure material
- Stainless Steel (SS304/SS316) Disc, Aluminium Bronze Disc, DI Disc with Nickel Plating
- pressure rating (asme class)
- Class 150, Class 300
- pressure rating (pn)
- PN6, PN10, PN16, PN25, PN40
- seat material
- EPDM, NBR, PTFE, Viton, Metal (Laminated)
- testing standard
- API 598, ISO 5208, EN 12266-1
- country of origin
- Made in India
