Specifications

application / industry

Automotive

direction of winding

Right Hand

end type

Closed

free length (mm)

202530405075100000

heat treatment

Hardened

inner diameter id (mm)

—

load at specified length (n)

—

load type

Compression

material

Carbon Steel

mounting style

Seated

number of active coils

—

operating temperature (°c)

-40 to 120

outer diameter od (mm)

12, 16, 20, 25, 30, 40, 50, 60

solid length (mm)

—

spring function

Energy Storage

spring rate (n/mm)

—

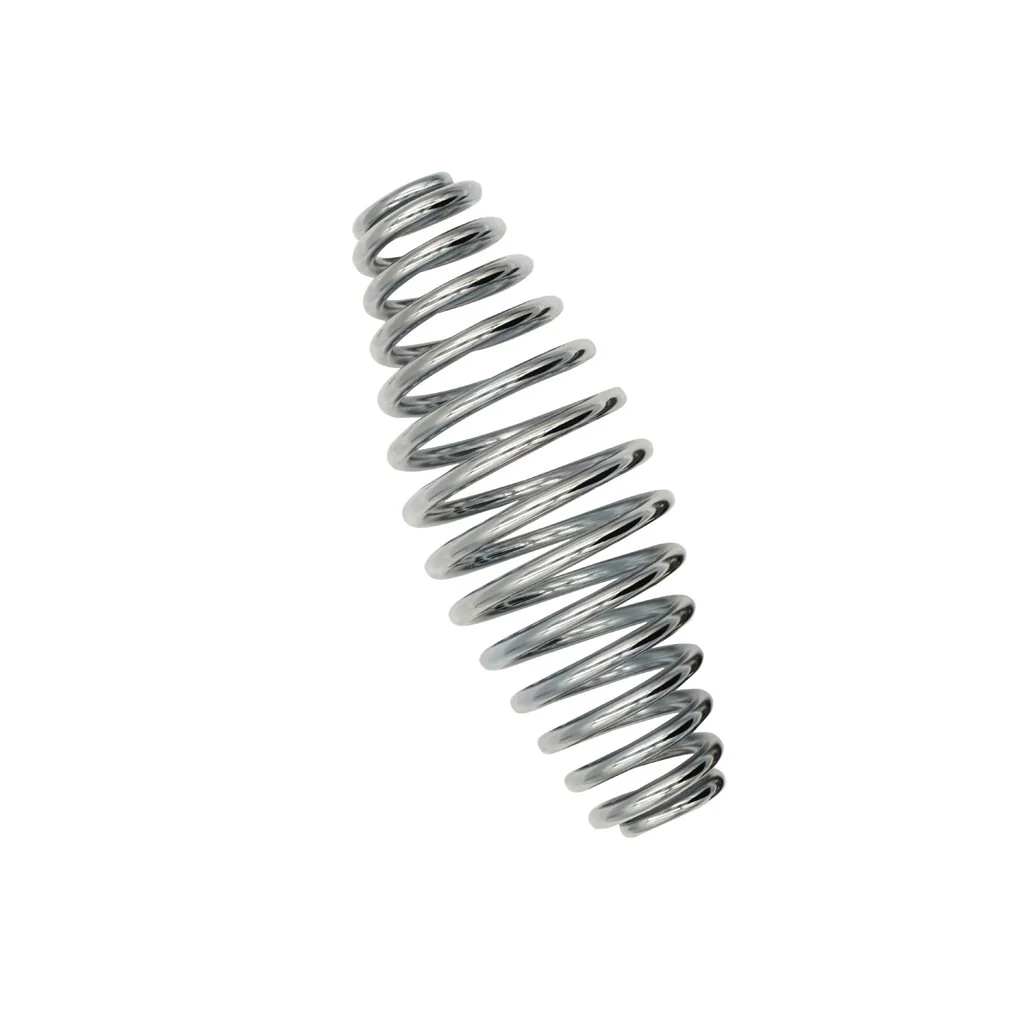

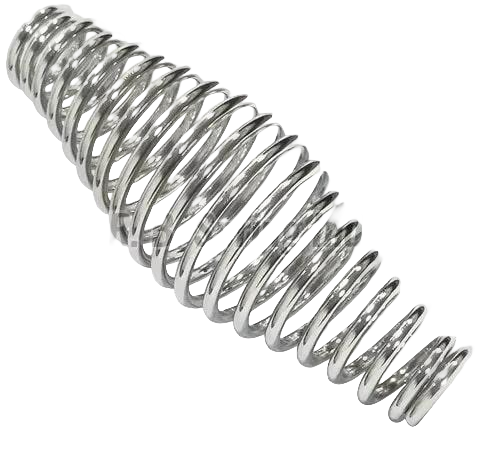

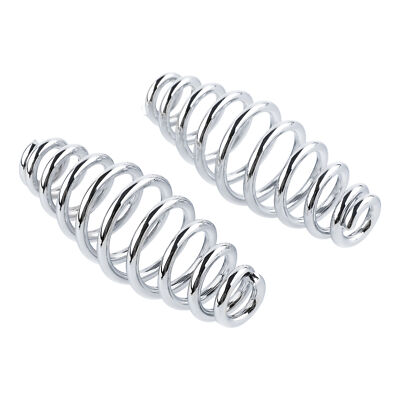

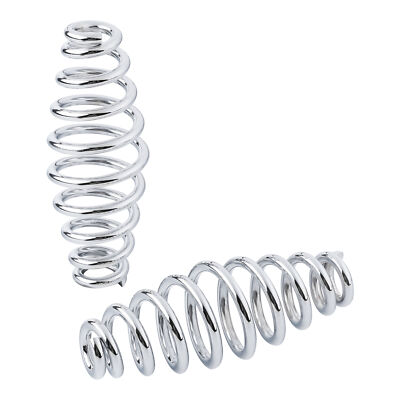

spring shape

Barrel

standard / specification

OEM

surface finish / coating

Plain

wire diameter (mm)

1, 1.2, 1.6, 2, 2.5, 3, 4, 5, 6
