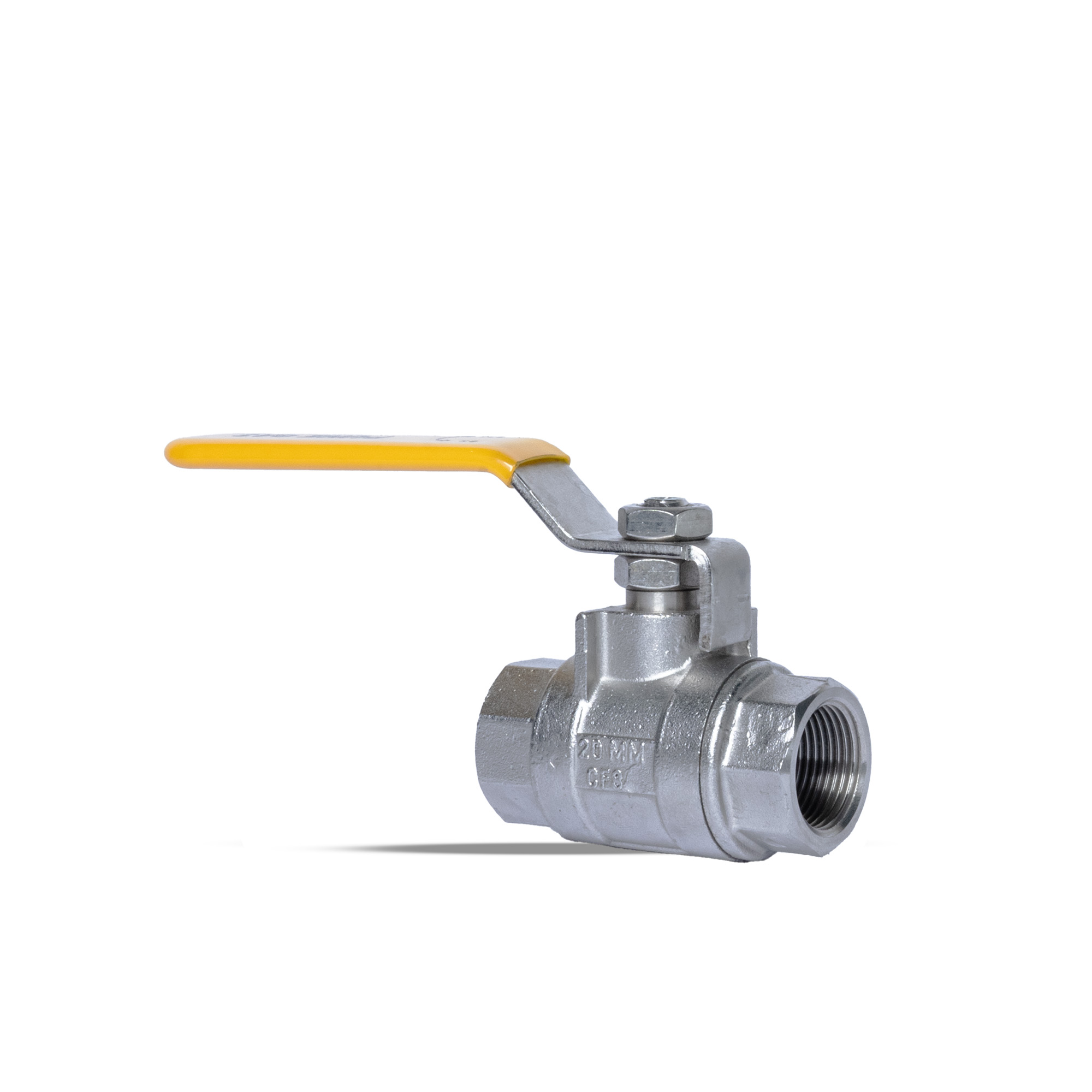

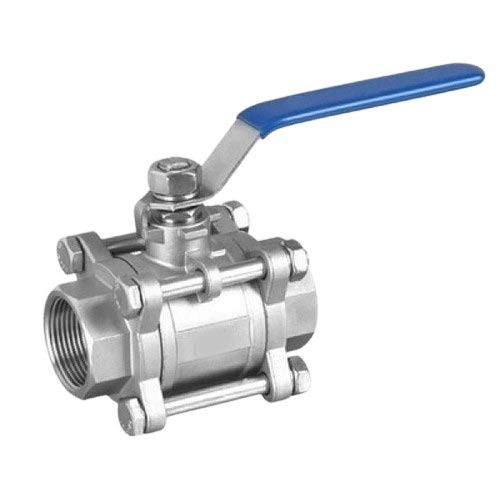

Ball Valves
Ball Valves
Quarter-turn valves with a rotating ball for tight shutoff and low pressure drop in process, utility, and instrumentation services.
Select product type:
Select size (inch · dn):
Select operation type:
Select body material:
Select end connection:
10
Minimum order quantity: 10 piecesFrom: $100 - $500
Specifications
Specifications
product typeFloating Ball Valve, Trunnion Mounted Ball Valve, 3-Way Ball Valve, 4-Way Ball Valve, V-Port Ball Valve, Metal Seated Ball Valve, Cryogenic Ball Valve, Top Entry Ball Valve, Split Body Ball Valve
size (inch · dn)1/2" (DN15), 3/4" (DN20), 1" (DN25), 1.5" (DN40), 2" (DN50), 2.5" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300), 14" (DN350), 16" (DN400), 18" (DN450), 20" (DN500), 24" (DN600)
operation typeLever Operated, Gear Operated, Pneumatic Actuated, Electric Actuated, Hydraulic Actuated
body materialCarbon Steel (WCB), Stainless Steel (SS304), Stainless Steel (SS316), Duplex, Super Duplex, Cast Iron (CI), Ductile Iron (DI), Alloy Steel
end connectionFlanged RF, Flanged RTJ, Threaded NPT, Threaded BSP, Socket Weld, Butt Weld
application / serviceWater, Oil, Gas, Steam, Chemical, Slurry, Seawater, Cryogenic
coating / protectionEpoxy Coated, FBE Coated, Painted, Galvanized, Bare Metal
design standardAPI 6D, API 608, ISO 17292, ASME B16.34
disc / closure materialStainless Steel (SS316) Ball, Chrome Plated Carbon Steel Ball
pressure rating (asme class)Class 150, Class 300, Class 600, Class 900, Class 1500
pressure rating (pn)PN10, PN16, PN25, PN40, PN63, PN100
seat materialPTFE, RPTFE, PEEK, Nylon, Devlon, UHMWPE, Graphite, Metal
testing standardAPI 598, ISO 5208, EN 12266-1
country of originMade in India
